.TST file creation
4 - 16 Vision 2007 4.10 User Manual Rev 01
It must contains 3 columns (separated by a space):
Reference Designator.
Board number.
Feeder information that can contains 5 levels separated by ._..
Usually the 1st level corresponds to the placement machine name. The others are the module,
stat and understat.

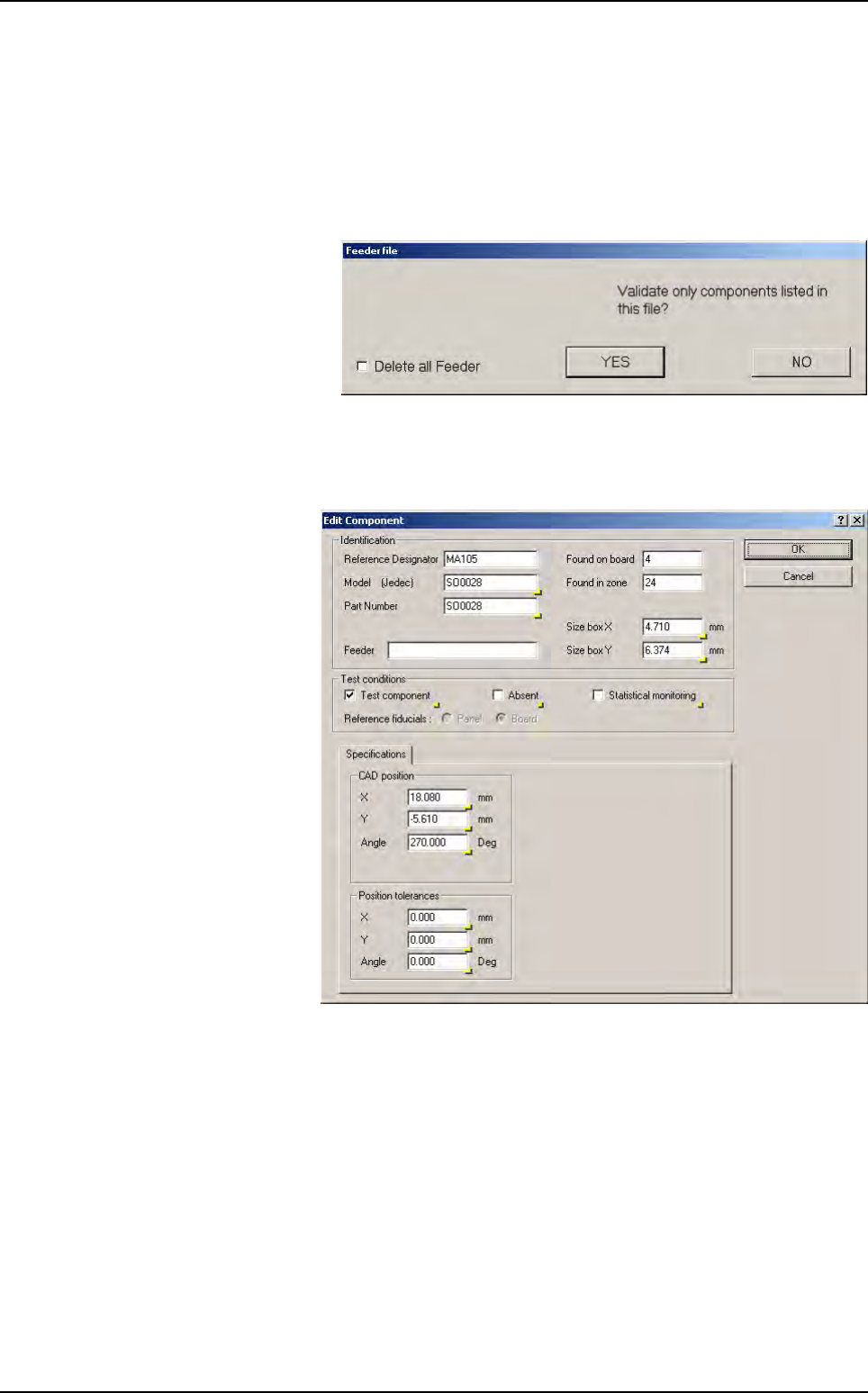

After selecting the feeder
file to import, the following
message is displayed:
YES: only the components
of this list to will be on test.
NO: all of the components
will be on test.
Delete the previous feeder information, before loading the present one.
4.5.3 Information result
The feeder information
appears on the compo-
nent edition window.
Feeder information
.TST file creation
Vision 2007 4.10 User Manual Rev 01 4 - 17

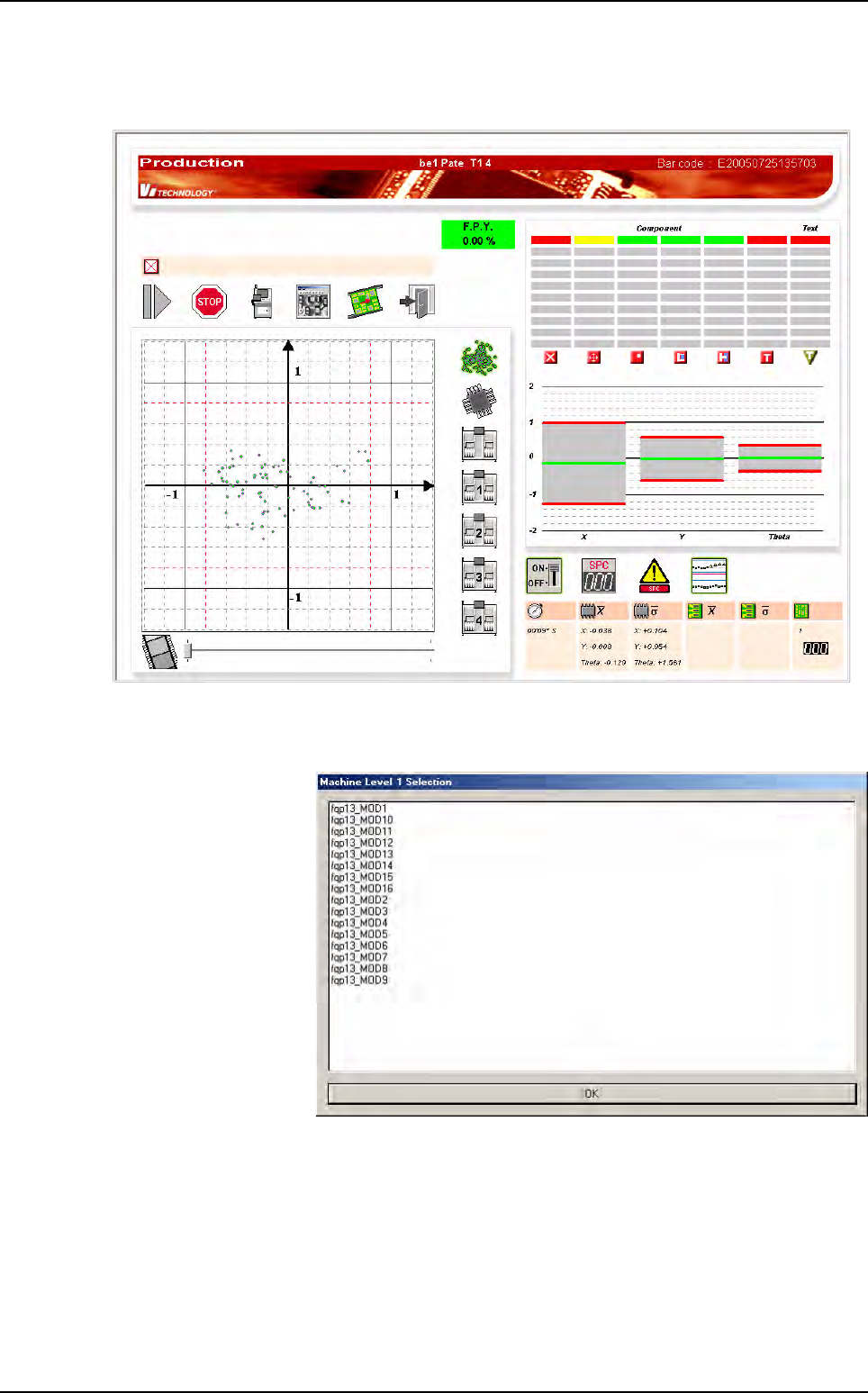

4.5.4 Production screen
You can retrieve these levels in the production screen, on the scatter chart.
Selecting one of Machine or Level ... buttons will display the list of the available feeder informa-
tion.
In Machine Level Se-
lection window, select-
ing some of the lines will
only display (on the
scatter chart) the rela-
tive information: compo-
nents placed by
selected machine.
Feeder information
.TST file creation
4 - 18 Vision 2007 4.10 User Manual Rev 01
4.6 Creation result

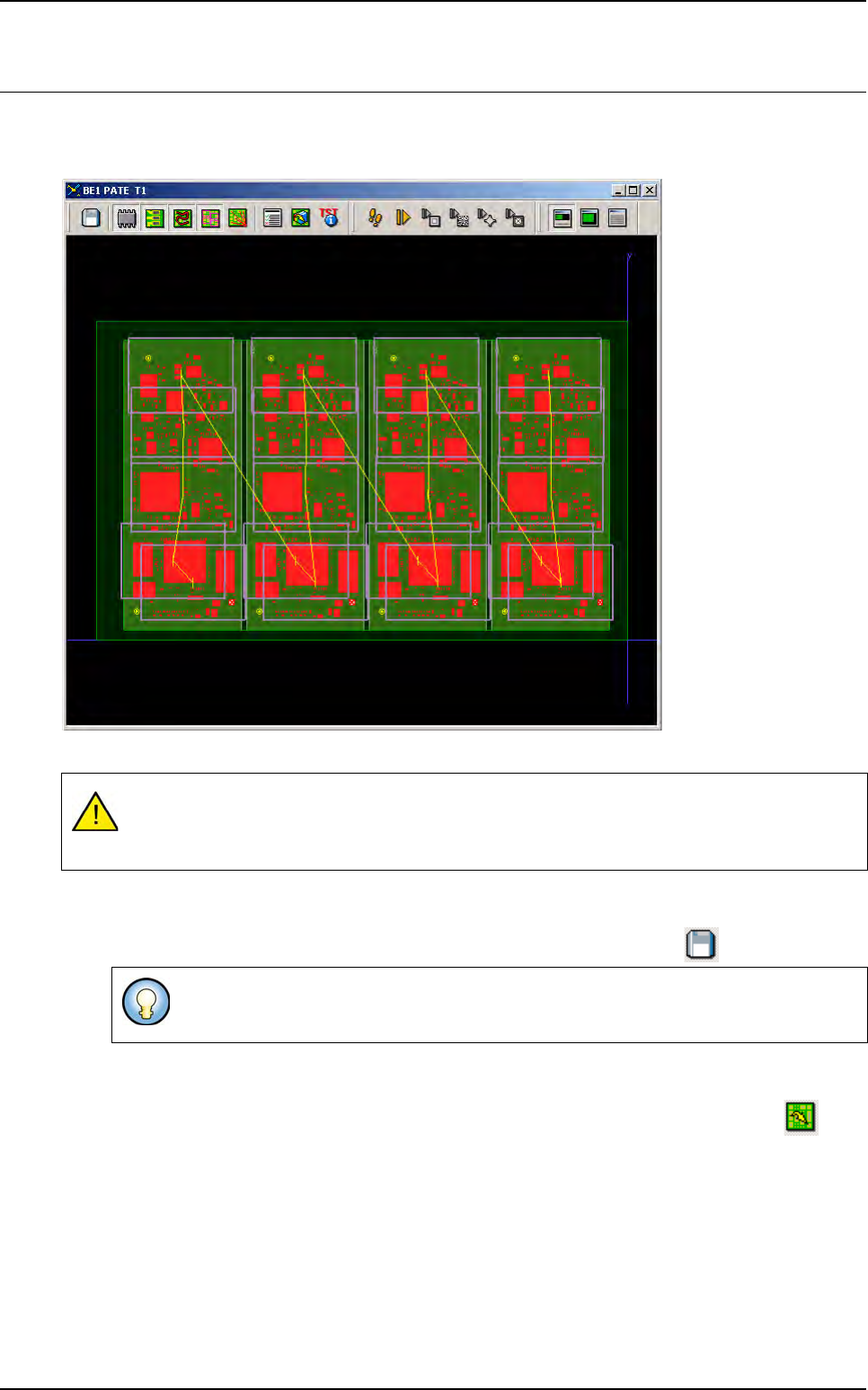

The .tst file obtained is a representation of the panel with all its components and fiducials that are ac-
cessible by clicking on them.
The panel can now be inspected by the machine, both in the production and debug mode.
4.6.1 Saving the .tst file created
Select Save or Save as in the Test file menu, or click on the Save icon in the tool bar.
4.6.2 Opening and closing an existing .tst file
Select Open test file (Ctrl+I) in the Process menu, or click on the Open .tst file icon in the
tool bar.
If a .tst file is already open, the Open .tst file function is available in the Test file menu. Select
Open test file in the Test file menu.
Vision 2007 will ask you to select a .tst file. The default directory is always: C:\VIT\Data. By de-
fault, Vision 2007 presents the .tst files. Double click on the selected .tst file or press Open in
order to view it on the screen.
Press Close from the Test file menu in order to close a Process Test window.
A visual inspection comparing your panel with its graphic representation ensures that inspec-
tion is not carried out using an incorrect .tst file, resulting in inspection (position) errors stem-
ming from the .tst file.
By default, the file will take the name of the panel (PANEL_NAME of the .vis file used
for creation).
