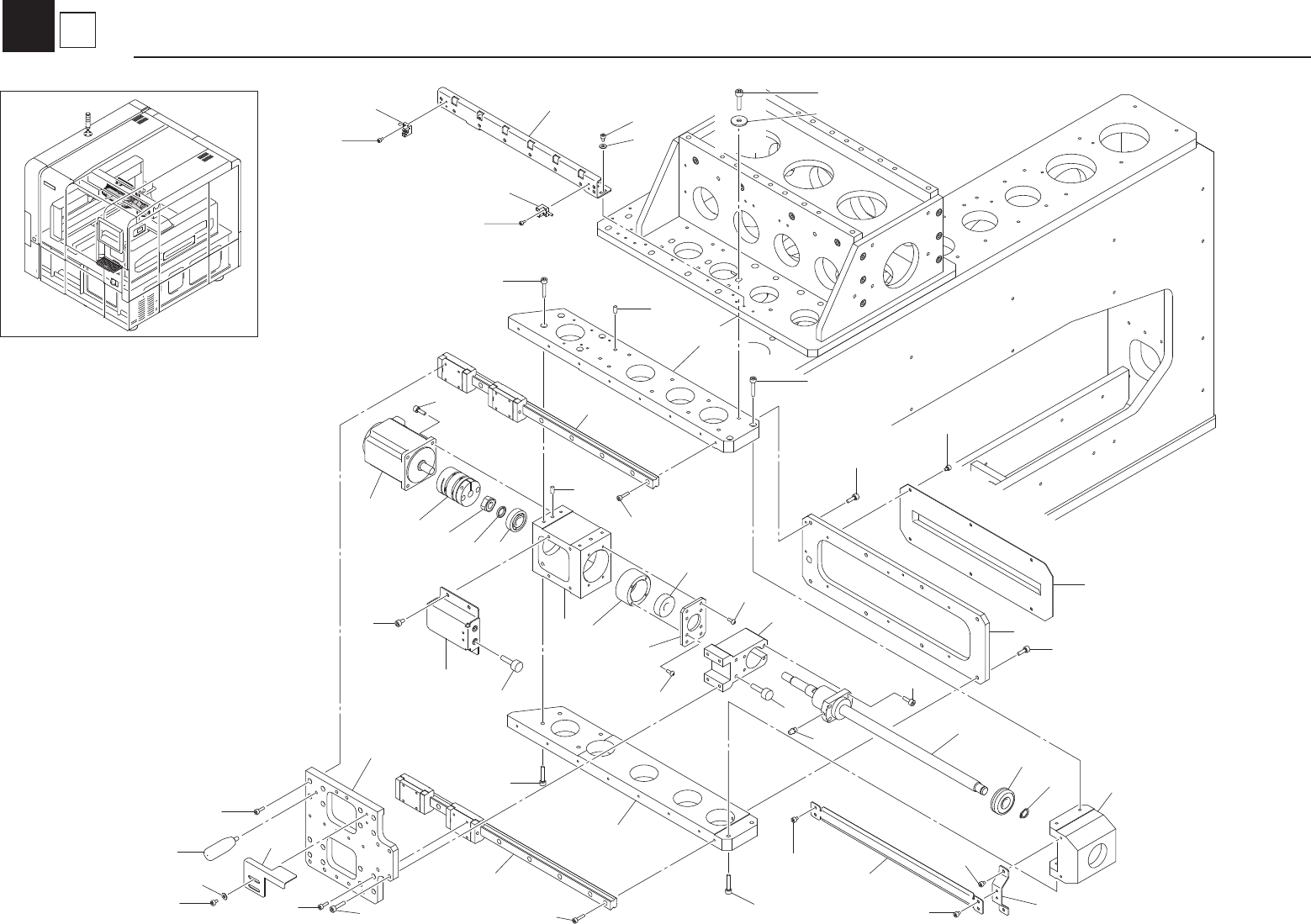

YSi-X_mpl - 第22页
KLC-1304 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Pa…
KLC-1304
30
29
28
26
32
39
43
42
30
38
38
41
1
10
34
41
36
25
35
13
12
24
38
2
3
6
7
40
40
11
24
17
36
36
36
31
9
16
5
20
23
4
14
31
31
31
38
34
15
21
8
18
19
21
10
33
33
37
22
27
42
32
5
2
HS-axis / Sensor
Vision Camera
KLC-1304
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KLC-M72B1-00 BLOCK LM
1 /
Í
39
91312-06025 BOLT HEX.SOCKET HEAD
8
M6X25
2
KLC-M72B2-00 BLOCK LM
1
/
Í
40
92012-04010
BOLT,BUTTON HEAD
8
3
KLC-M72B3-00 HOLDER MOTOR
1 /
Í
41
99480-05010 PIN,PARALLEL
4
4
KLC-M72B4-00 HOLDER BRG.
1 /
Í
42
92902-04200 WASHER PLAIN
6
5
KLC-M72B5-01 BALL SCREW
1 B
Í
43
90201-06072 WASHER
8
6
KLC-M72B6-00 HOLDER BRG.
1 /
Í
44
7
KLC-M72B7-00 PLATE BRG
1 /
Í
45
8
KLC-M72B8-00 COUPLING
1 B
Í
46
9
KLC-M72B9-00 PLATE B9
1
/
Í
47
10
KLC-M72BA-00
LM RAIL & GUIDE
2 B
Í
48
11
KLC-M72BB-02 BLOCK NUT
1 /
Í
49
12
KLC-M72BC-01 PLATE SLIDE
1 /
Í
50
13
KLC-M72BD-00 BRKT.STOPPER
1 /
Í
51
14
KLC-M72BE-00 BRKT. BE
1 /
Í
52
15
KLC-M72BF-00 COVER SCREW
1 /
53
16
KLC-M72BG-00 COVER SCREW
1 /
Í
54
17
KHN-M22AD-00 GREASE NIPPLE
1 /
Í
55
18
KGS-M2628-00 LOCK NUT
1 /
Í
56
19
KLB-M2284-00 COLLAR
1 /
Í
57
20
KX5-M2232-10 BEARING,SUPPORT
1
B
Í
58
21
KX7-M2231-00 BEARING
1 /
Í
59
22
KKU-M115A-00 GRIP
1 /
Í
60
23
99009-12400 CIRCLIP :
1 /
Í
61
24
90990-33J021 BOLT,STOPPER
4 /
Í
62
25
90KA1-601364 AC SERVO MOTOR
1 B
Í
63
26
KLC-M72E1-00 BRKT.SENSOR
1 /
Í
64
27
KLC-M72E2-00 DOG HS
1 /
Í
65
28
KLC-M652L-01 SENSOR HS ORG ASSY
1 B
Í
66
29
KLC-M652S-00 SENSOR COAX.POS.ASSY
1 B
Í
67
30
91312-03006 BOLT HEX.SOCKET HEAD
4
M3X6
68
31
91312-04005 BOLT HEX.SOCKET HEAD
12
M4X5
69
32
91312-04006 BOLT HEX.SOCKET HEAD
6
M4X6
70
33
91312-04012 BOLT,HEX.SOCKET HEAD
16
M4X12
71
34
91312-04016 BOLT,HEX.SOCKET HEAD
16
M4X16
72
35
91312-05008 BOLT HEX.SOCKET HEAD
4
M5X8
73
36
91312-05014 BOLT HEX.SOCKET HEAD
16
M5X14
74
37
91312-05020 BOLT HEX.SOCKET HEAD
4
M5X20
75
38
91312-05025 BOLT HEX.SOCKET HEAD
12
M5X25
76
5
2
HS-axis / Sensor
Vision Camera
KLC-1304
1
12
12
3
11
11
6
8
8
9
8
4
10
5
7
2
5
3
Duct
Vision Camera
