Page HANWHA TECHWIN 93 SM411F Electric Panel Ass’y (1/2) NO. PA R T N O . P ART NAME Q'TY Old No. Stoc k Apply Refere nce A-1 J907910 16A SM41 1F_REAR_ELECTRIC_P ANEL_AS SY J9079101 1 1 EP18-900018 MAGNETIC CONT ACT…
Page
HANWHA TECHWIN
92
SM411F

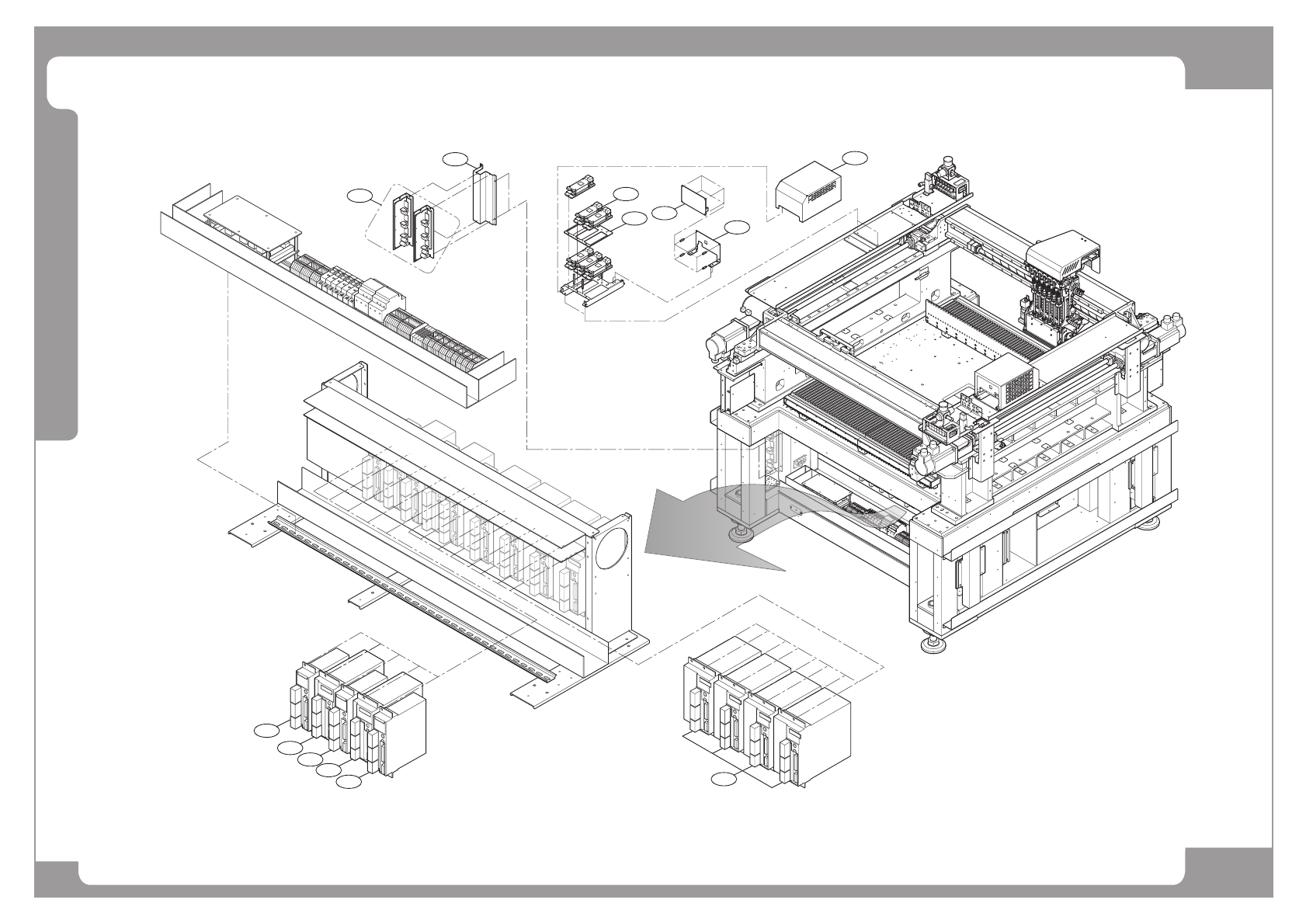

Electric Panel Ass’y (1/2)
9
LC1D096BD
LC1D096BD
11
3
11
2
3
7
8
6
10
5
10
4
6
1
Cover Ass'y
12
12
Page
HANWHA TECHWIN
93
SM411F
Electric Panel Ass’y (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90791016A SM411F_REAR_ELECTRIC_PANEL_ASSY J9079101 1
1 EP18-900018 MAGNETIC CONTACTOR[LC1D096BD, DC24V, 1A1 2
2 EP07-900023 CIRCUIT PROTECTOR[C60a-2P-C16(23812)] 2
3 EP07-900024 CIRCUIT PROTECTOR[C60a-3P-C16(23825)] 1
4 EP10-900438 FUSE[250V 5A] 3
5 EP10-900439 FUSE[250V 10A] 2
6 EP21-900002 STOPPER[UA-51] 2
7 EP21-900003 TEMINAL BLOCK[WDU 2.5] 63
8 EP21-900004 END PLATE[WAP2.5-10] 11
9 EP21-900005 CROSS CONNECTION[ZQV2.5] 6
10 EP21-900007 FUSE TERMINAL BLOCK[ASK 1] 5
11 J7251007A BOARD COVER[J7251007A] 1
12 EP07-901508 COOLING FAN[4715MS-22T-B50] 2
Page
HANWHA TECHWIN
94
SM411F
Electric Panel Ass’y (2/2)
LC1D096BD
LC1D096BD
2
1
8
2
1
3
F.R
R.L
1
4
5
10
9
6
7
