Page HANWHA TECHWIN 98 SM411F Electric Device Ass’y (2/4) AIR PRESSURE SAFEGUARD OVERRIDE MAIN SWITCH STOP RESET SELECT FEEDER CHANGE START READY MAIN SWITCH 5 6 18 17 3 1 4 [CH1] TRAY NEXT PREVIOUS LAN MCCB GROUND INTER…
Page
HANWHA TECHWIN
97
SM411F
Electric Device Ass’y (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J91681011A SM411F_ELECTRIC_DEVICE_ASSY J91681011A 1
1 EP20-900105 LOAD SWITCH[PI-25] 1 EP20-900105 /EP20-900103
2 J90831048G OP_PANEL_ASSY 2 J90831048E
3 EP20-900076 ULTRA_BRIGHT_LED_WHITE L5,5K24UW 3
4 EP20-900077 ULTRA_BRIGHT_LED_GREEN L5,5K24UG 1
5 EP20-900078 ULTRA_BRIGHT_LED_RED L5,5K24UR 1
6 EP20-900079 ULTRA BRIGHT LED YELLOW 1
7 EP20-900042 EMERGENCY SWITCH ASSY[704.075.2(EM)] 2
8 EP20-900076 ULTRA_BRIGHT_LED_WHITE L5,5K24UW 3
9 J70521024B SM411_OP_PANEL 1
10 CD04-900026 MINI_KEYBOARD 5510UH 2 CD04-900024
11 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2
12 EP13-900134 TOWER_LAMP PTE-APV-302-RYG(510) 1 EP13-900132
13 J90601023B TEACHING_BOX 1
14 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm 2 CD04-900008/ CD04-900012
15 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900119/ CD05-900126
16 J71521015B BUTTON_CAP 1 J71521015A
17 EP20-900069 PUSHBUTTON_HEAD RRJT 6
18 EP20-900074 CONTACT BLOCK CTL2 6
19 EP07-901528 FAN FILTER 120MM(NMB) 2
20 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2
21
22
23
24
25
26
Page
HANWHA TECHWIN
98
SM411F

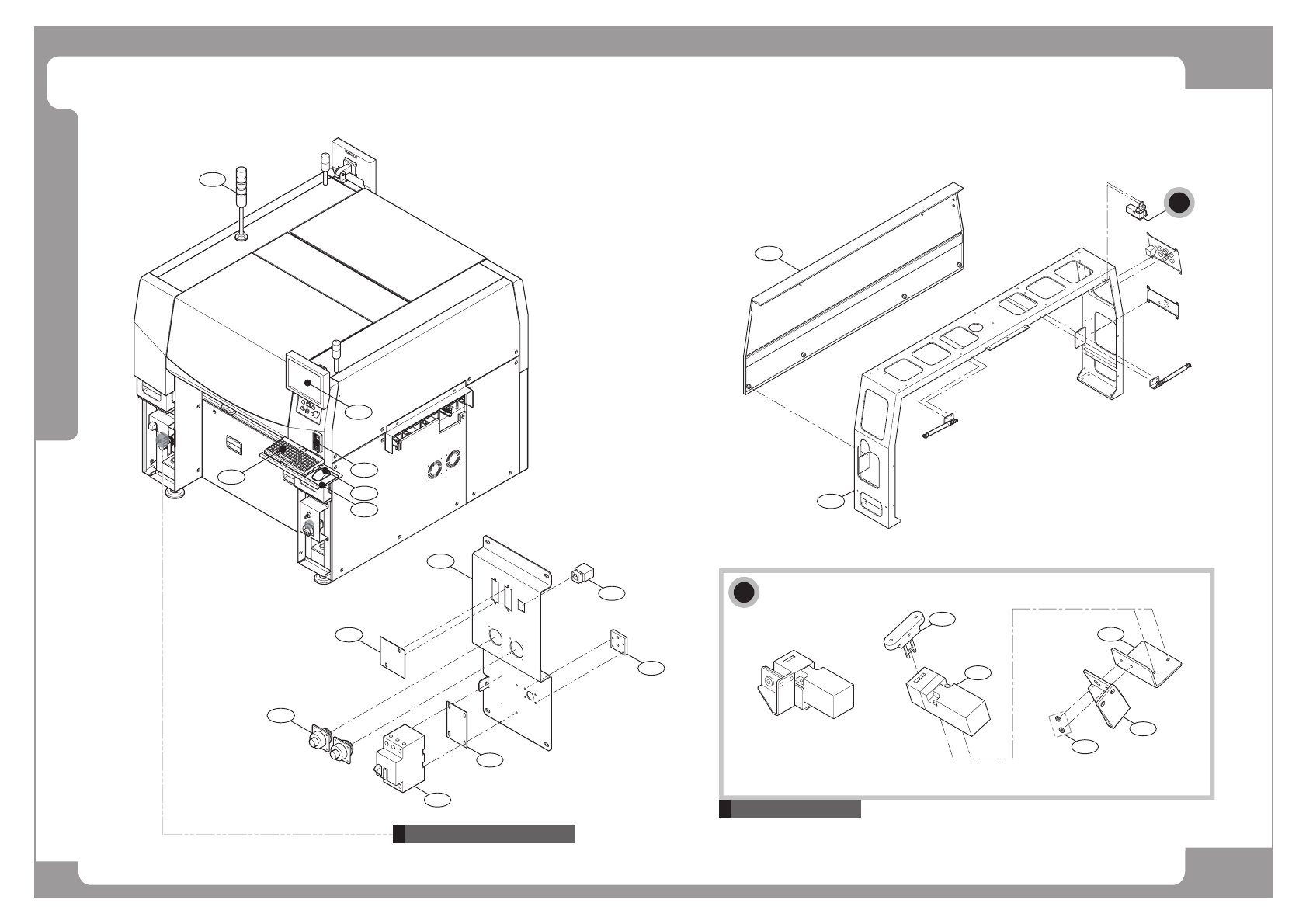

Electric Device Ass’y (2/4)
AIR PRESSURE
SAFEGUARD
OVERRIDE
MAIN SWITCH
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
MAIN SWITCH
5
6
18
17
3
1
4
[CH1]
TRAY
NEXT
PREVIOUS
LAN
MCCB
GROUND
INTERFACE
[CH2]
FEEDER
6
7
10
9
11
Rear Power Panel Ass'y
2
OMRON
D4DS
14
13
15
16
12
Door Switch Ass'y
A
A
8
19
Page
HANWHA TECHWIN
99
SM411F
Electric Device Ass’y (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J7152027A GROUND TERMINAL [J7152027A] 1
2 EP07-900028 MAIN_CIRCUIT_BREAKER GV2ME22 1
3 EP21-900008 PANEL[GV2-AF02] 1
4 EP05-900721 CONNECTOR[555376-1] 1
5 J70521091A TRAY_CABLE_COVER
6 CD04-900026 MINI_KEYBOARD 5510UH 2 CD04-900024
7 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2
8 EP13-900134 TOWER_LAMP PTE-APV-302-RYG(510) 1 EP13-900132
9 J90601023B TEACHING_BOX 1
10 CD04-000013 COMPUTER MOUSE-MS622;OPTICAL MOUSE,330mm 2 CD04-900008/ CD04-900012
11 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900119/ CD05-900126
12 EP20-900156 DOOR KEY 2
13 J70521381B DOOR_SWITCH_BRACKET-2 2 J70521054A
14 J7070218C SENSOR BRACKET 2[J7070218C] 2 J7070218B
15 J7070341A WASHER-M4[J7070341A] 4
16 EP20-900137 SAFETY_DOOR_SWTICH 2
17
18
