Page HANWHA TECHWIN 102 SM411F Electric Device Ass’y (4/4) LC1D096B D LC1D096B D F .R R. L UF20T BH NOIS E FILT E R RAT ING: 450V20A 1 5 2 3 4 6
Page
HANWHA TECHWIN
101
SM411F
Electric Device Ass’y (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90511013A POWER_SUPPLY_ASSY J90511013A 4
2 J91741026B SM411_AXIS_SENSOR_BOARD 1 J91741026A
3 J91741076A CONV_SUB_IF_BOARD VER 1.0 1 J9060346A
4 AM03-000900A ASSY,BOARD-CAN_CONVEYOR_BOARD_V2.3 1 J91741049A /J91741049B
5 AM03-000819A ASSY,BOARD-FEEDER IO BOARD ASSY 1
6 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
7 J91741303A HACB_ASSY 3
8 J90541044A Z_DRIVER_BOX_ASSY 1
9 FC05-000121A BASE-DRIVER_BOX_BASE2;SPCC 1
10 J70541440A DRIVER_BOX_COVER_NEW J70541440A 1
11 J91741282A SSBD_BOARD_ASSY J91741282A 1
12 J70541489A DRIVER_CABLE_SUPPORT J70541489A 1
13
14 EP23-900012 TRANSFORMER 3PHASE, 5.5KVA 1 EP23-900006
15 EP07-901542 NOISE_FILTER UF20TBH 1
16 EP06-901007 POWER_SUPPLY 2 SM411N
17 J70511006B POWER_SUPPLY_BRACKET 2 J70511006A SM411N
18 FC09-000371A BRACKET-sm400n_smps_base_1;SPCC 1 SM411N
19 J44021015A SMPS 2 SM411N
20 FC09-000372A BRACKET-sm400n_smps_base_2;SPCC 2 SM411N
21 FC09-000371A BRACKET-sm400n_smps_base_1;SPCC 1 SM411N
22 FC09-000373A BRACKET-SM400N_SMPS_BASE_FIXER;SPCC 4 SM411N
23
24
Page
HANWHA TECHWIN
102
SM411F

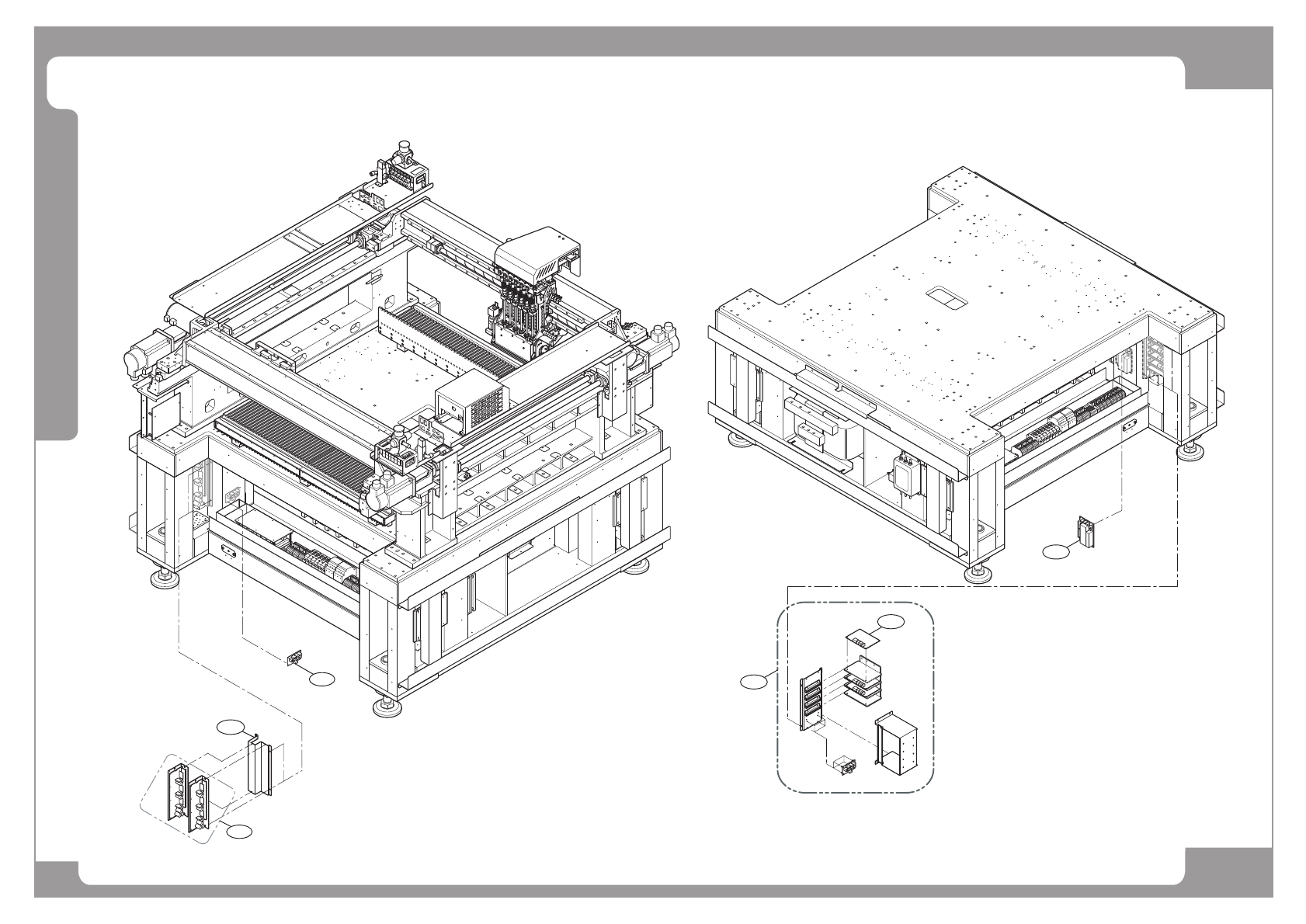

Electric Device Ass’y (4/4)
LC1D096B
D
LC1D096B
D
F
.R
R.L
UF20TBH
NOIS E FILTE R
RATING: 450V20A
1
5
2
3
4
6
Page
HANWHA TECHWIN
103
SM411F
Electric Device Ass’y (4/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 EP06-000255A SERVO CONTROL-DRIVE-STEP DRIVER ASSY 1 J90511020A /J90601060A
2 EP06-000283 SERVO CONTROL-DRIVE-BELT STEP DRIVER 4 J31521023A/ EP06-900111
3 EP06-900107 R_AXIS_DRIVER_MD5_HD14_3X MD5_HD14_3X 2 EP06-900103
4 J91741023A SM411_CONVEYOR_PWR_BOARD 2
5
6
