Page HANWHA TECHWIN 9 SM411F Feeder Base Ass'y-ST(2/2) NO. PA R T N O . P ART NAME Q'TY Old No. Stoc k Apply Refere nce 1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 2 AM03-0008 19B ASSY , BOARD-FEEDER IO BOARD…
Page
HANWHA TECHWIN
8
SM411F
Feeder Base Ass'y-ST (2/2)
CAN FEEDER EXTENSION BOARD
LC1D096BD
LC1D096BD
CAN CONVEYOR BOARD
ڍڈڥڌڎڋڌڌړړ
ڦڬڍڧڋڏڈڨڐ
ڰڍڈڏڈڏڅڍډڐ
ڰڍڈڏڈڏڅڍډڐ
ڥڑڒڌڌڌڑړڜ
ڝڰڴڟڋڑڈڋڏ
ڥڔڋڐړڋړڑڜ
ڮڨڏڌڌٻڨڜکڤڡڪڧڟٻڜڮڮڴ
ڡۀۀڿۀۍٻڝڼێۀ
ڡڠڠڟڠڭٻڝڜڮڠٻڜڮڮڴٻڃڮگڄ
ڡڠڠڟڠڭٻڝڜڮڠٻڜڮڮڴڃڭڠڜڭڈڮگڄ
ڡڠڠڟڠڭٻڝڜڮڠٻڜڮڮڴڃڡڭڪکگڈڮگڄ
Reference to Air Ass'y
2
1
]
[
Z
\
^
_
Page
HANWHA TECHWIN
9
SM411F
Feeder Base Ass'y-ST(2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
2 AM03-000819B ASSY,BOARD-FEEDER IO BOARD ASSY 1 J91741070A/ AM03-000819A
3 J70540267B FRONT SENSOR BKT2 1
4 J70540266C FRONT SENSOR BKT1 1 J70540266B
5 J70540268C REAR SENSOR BKT1 1
6 J70540269B REAR SENSOR BKT2 1
7 FC15-003228A COVER_LFM 1 J70521033B
8 FC29-900144 DRAWER PULL [HD-108] 1 FC29-900154
Page
HANWHA TECHWIN
10
SM411F

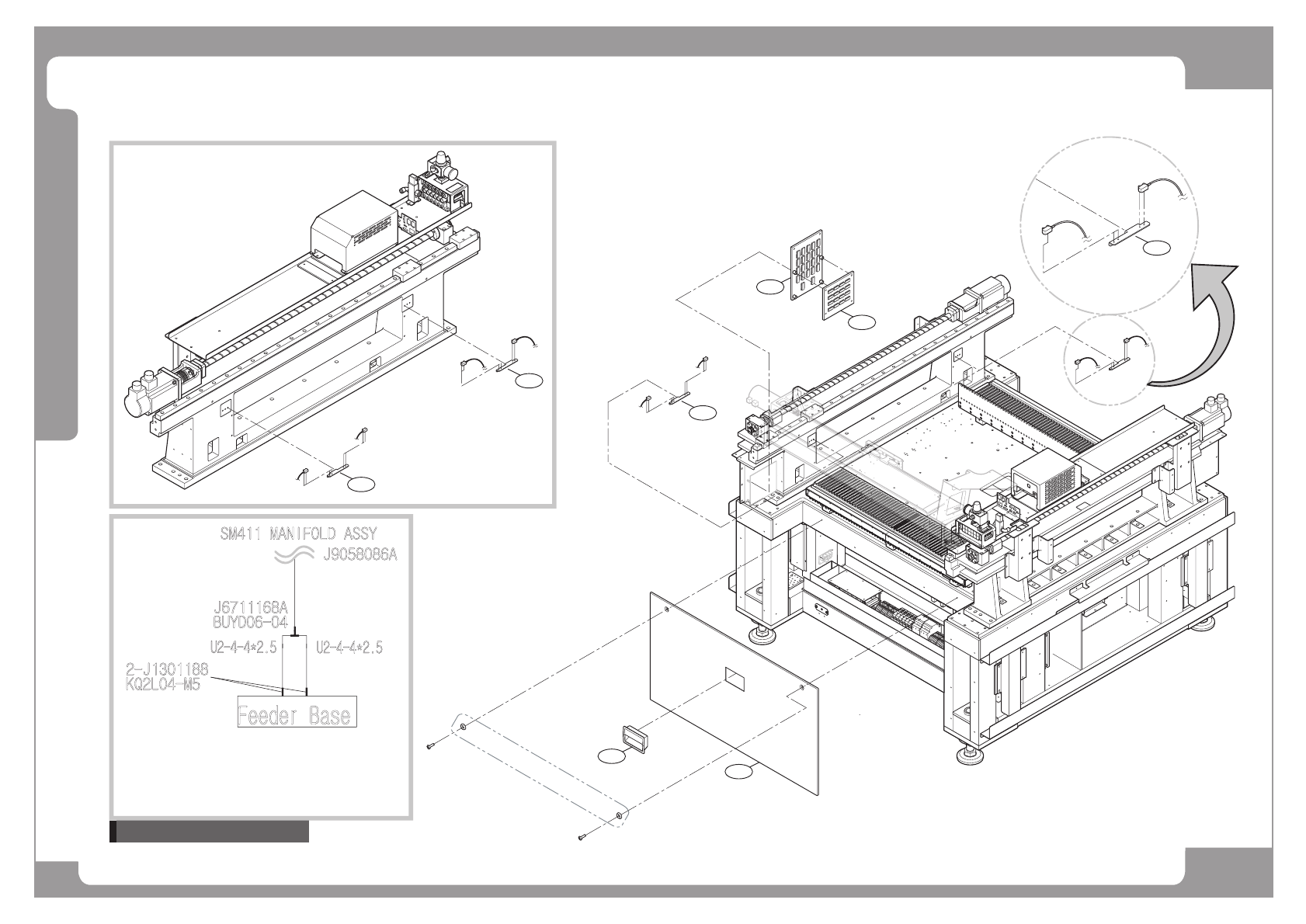

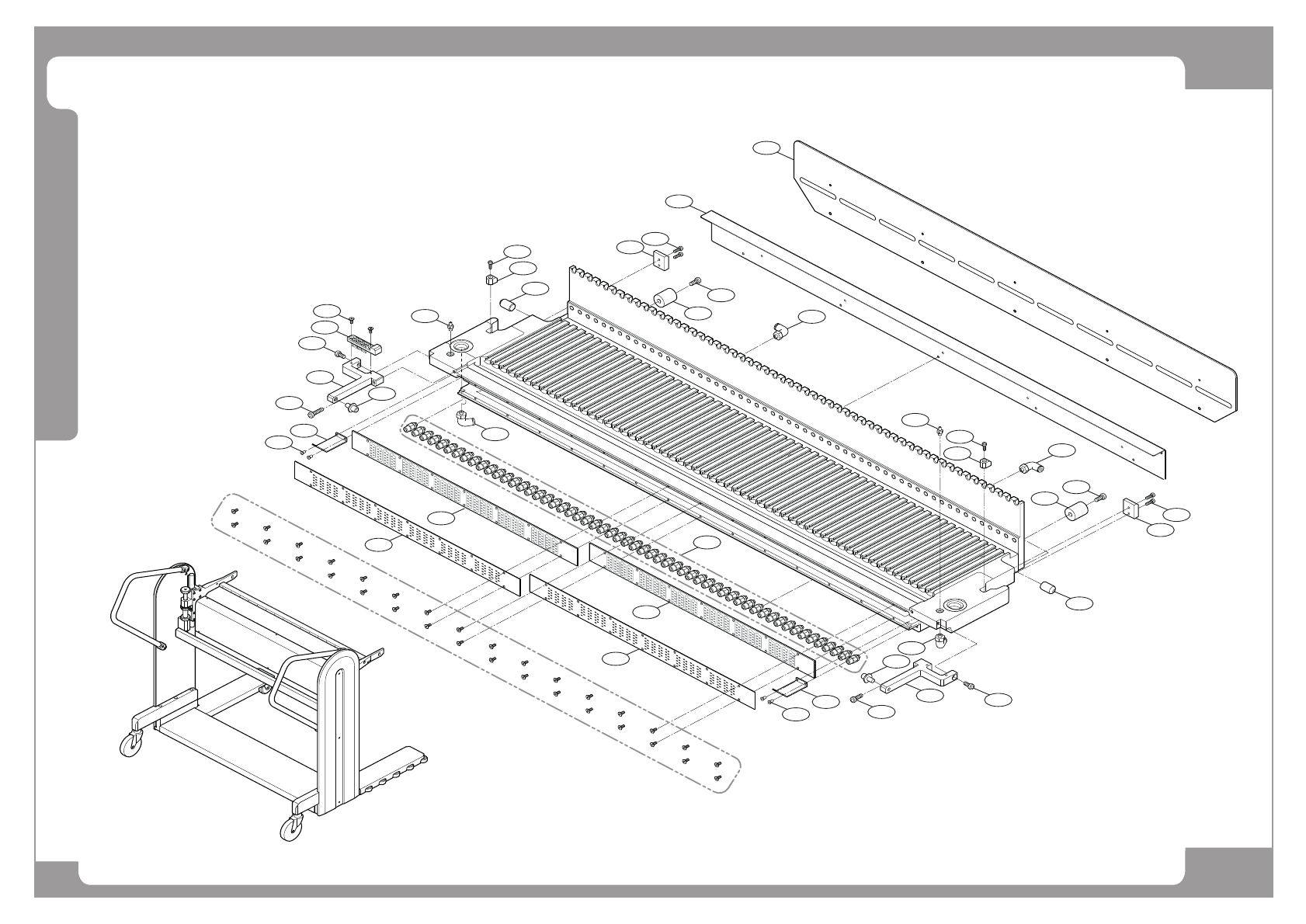

Feeder Base Ass’y - DC (1/4)
4
3
2
4
1
4
4
22
18
17
5
6
11
9
8
10
12
13
14
15
16
21
18
17
18
19
20
16
11
8
9
10
12
13
20
19
21
18
22
7
23
