Page HANWHA TECHWIN 13 SM411F Feeder Base Ass’y - DC (2/4) NO. PA R T N O . P ART NAME Q'TY Old No. Stoc k Apply Refere nce 1 HP06-900050 UNION Y FITTING 1 HP06-900199 2 HP06-900047 ELBOW FITTING 1 3 HP09-900162 SIL…
Page
HANWHA TECHWIN
12
SM411F

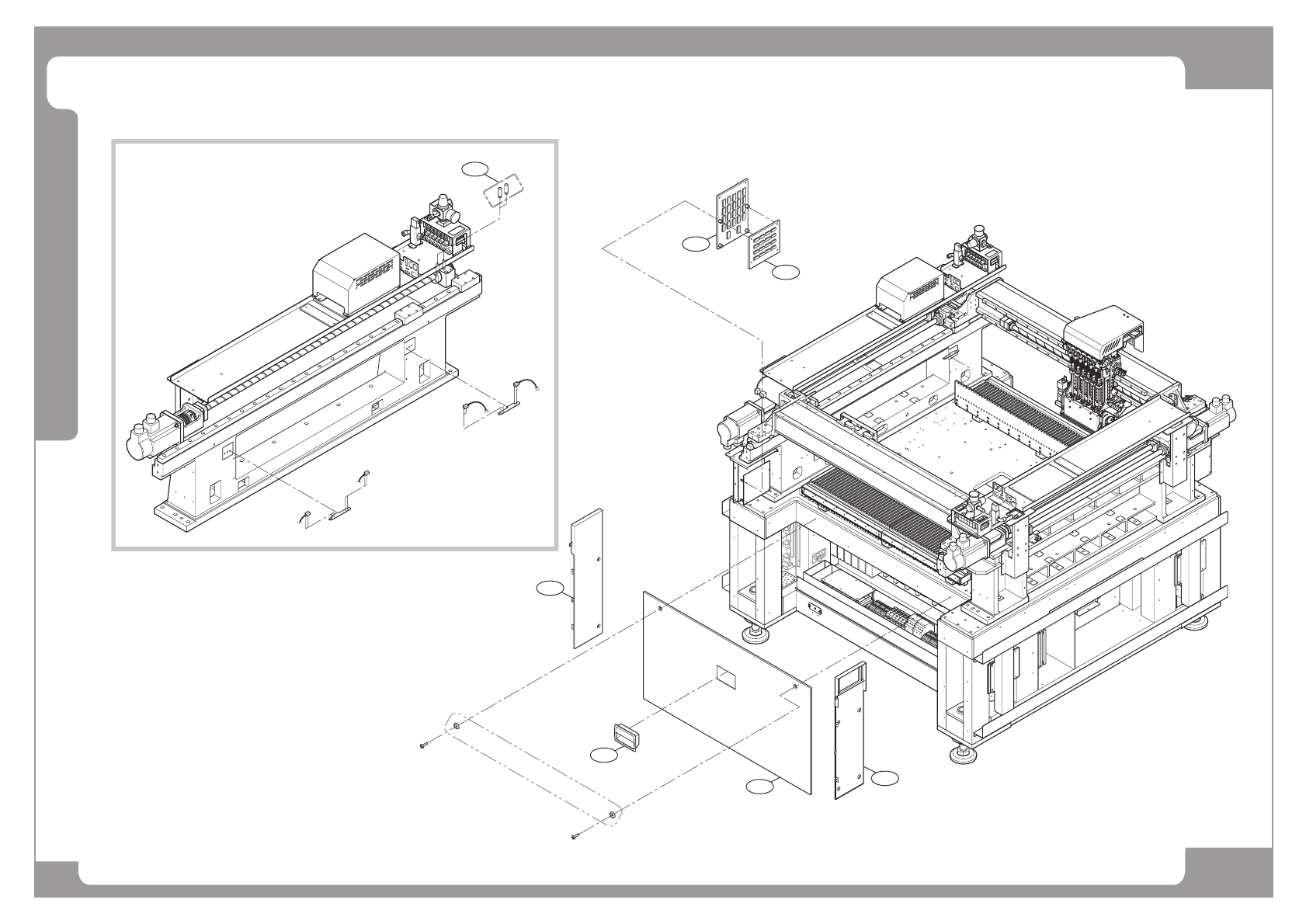

Feeder Base Ass’y - DC (2/4)
7-1
7-5
7-2
3
4
5
5
4
1
2
2
2
2
7
7-3
7-4
7-2
2
7
8
8
6
8-1
Page
HANWHA TECHWIN
13
SM411F
Feeder Base Ass’y - DC (2/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 HP06-900050 UNION Y FITTING 1 HP06-900199
2 HP06-900047 ELBOW FITTING 1
3 HP09-900162 SILENCER AN101-01 2 HP09-900163
4 J71570100C GUIDE BLOCK 2
5 J7057247A POSITIONNING GUIDE[J7057247A] 2
6 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1
7 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
7-1 HP14-900090 SPEED CON[ASP330F-01-06S] 1
7-2 HP06-900293 ELBOW FITTING[PT18EF] 2
7-3 HP06-900093 STRAIGHT FITTING[KQ2H04-00/PU4] 1
7-4 HP06-900299 COUPLER[KD-M5-SA34697KR] 1
7-5 HP14-900089 SPEED CON[AS2201F-01-06S] 1
8 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
8-1 FC09-002061A BRACKET-DC-SME_SENSOR_BKT 1
Page
HANWHA TECHWIN
14
SM411F
Feeder Base Ass’y - DC (3/4)
LC1D096BD
LC1D096BD
F
.R
R.L
CAN CONVEYOR BOARD
Z
Y
[
^
X
]
\
