Page HANWHA TECHWIN 28 SM411F Conveyor Ass’y (4/5) 17 23 18 13 12 14 28 21 19 24 8 20 8 12 12 14 22 13 23 13 12 30 14 22 13 12 13 13 23 12 18 23 17 9 7 A A 11 25 9 25 26 29 29 2 2 3 1 6 5 1 6 5 1 6 4 9 27 9 12 14
Page
HANWHA TECHWIN
27
SM411F
Conveyor Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
HANWHA TECHWIN
28
SM411F

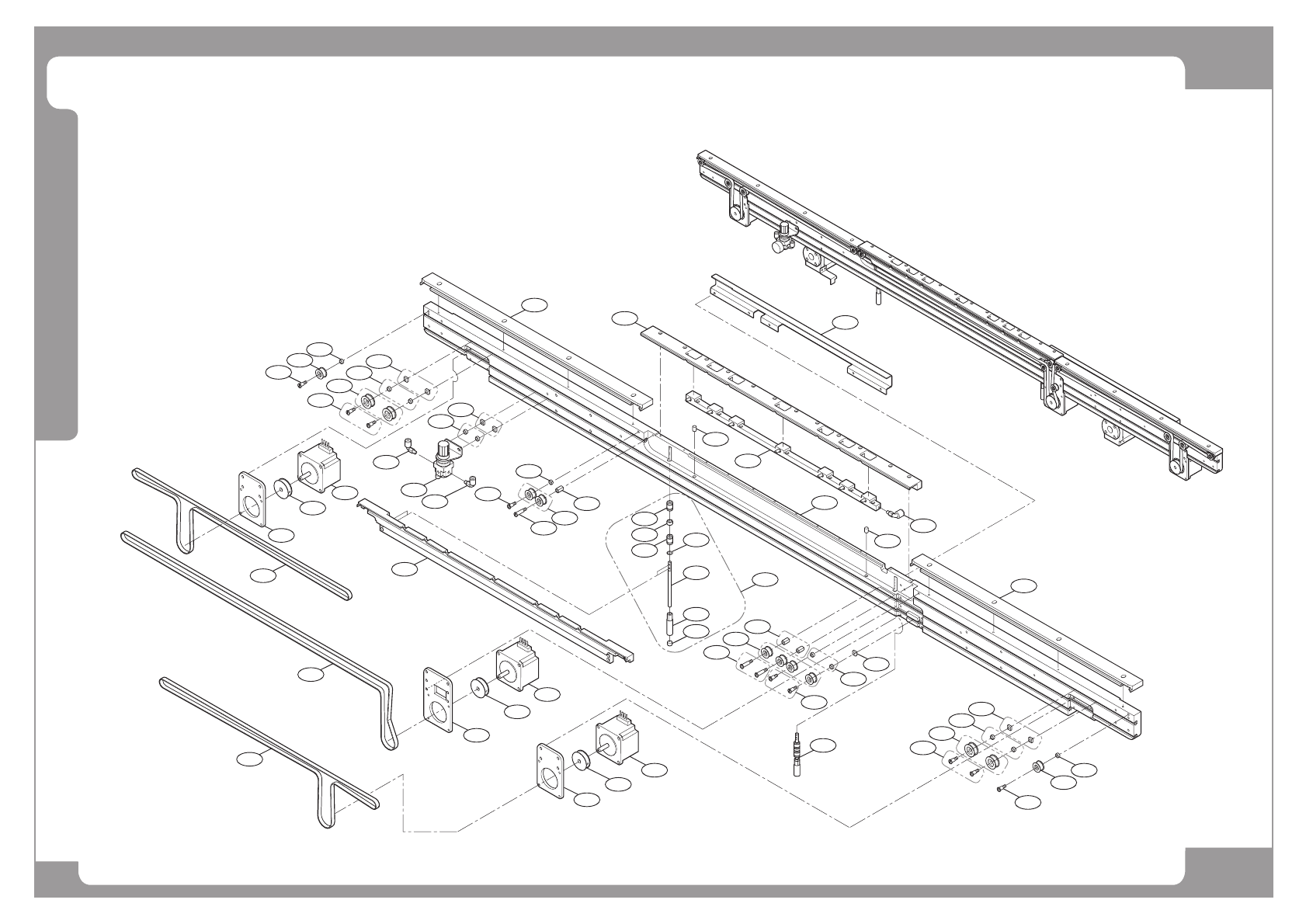

Conveyor Ass’y (4/5)
17
23
18
13
12
14
28
21
19
24
8
20
8
12
12
14
22
13
23
13
12
30
14
22
13
12
13
13
23
12
18
23
17
9
7
A
A
11
25
9
25
26
29
29
2
2
3
1
6
5
1
6
5
1
6
4
9
27
9
12
14
Page
HANWHA TECHWIN
29
SM411F
Conveyor Ass’y (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 EP08-900073 STEP_MOTOR 2S56Q-01842SR2 1
2 MC05-900068 BELT_410_1 4
3 MC05-900070 BELT_410_R 1
4 J70531085A BRACKET_BELT_MOTOR_M J70531085A 1
5 J70531106A BRACKET_BELT_MOTOR_S J70531106A 4
6 J7153111A TEP MOTOR PULLEY [J7153111A] 6
7 J71531028A CONV_REAR_FRAME J71531028A 1
8 MC06-900006 BALL_BUSH LMU5 8
9 HP06-900047 ELBOW FITTING 4
10 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 2
11 HP03-900039 EDGE CYLINDER[CQ2B6-CJJC2948] 1
12 J7053047A IDLER SPACER-S 18
13 J7053009A IDLER SHAFT-S2 [J7053009A] 18
14 J7053184A SQUARE NUT M4 55
15 J7053216B DOG-SENSOR [J7053216B] 1 J7053216A
16 J7053677A MOVE STAND[J7053677A] 2
17 J7053763A IDLER SPACER-M[J7053763A] 3
18 J7053770A IDLER SHAFT-M[J7053770A] 6
19 J7153010B ADJUST SHAFT [J7153010B] 4 J7153010A
20 J7153033A BUSH SPACER 4
21 J7153034A CLAMP SHAFT 4
22 J7253006A IDLER 1 8
23 J7253007A IDLER 2 16
24 J7253008A STOPPER 4
25 J7253009B STOPPER 2 [J7253009B] 4
26 J7053777A CABLE DUCT[J7053777A] 1
27 HP09-900109 REGULATOR 1 HP09-900110
