Page HANWHA TECHWIN 34 SM411F Backup Table Ass’y 8 7 17 10 34 34 24 22 2 22 23 24 22 24 31 22 16 1 29 3 4 28 5 33 27 6 8 31 6 31 9 11 11 12 13 15 14 18 18 31 35 35 31 31 31 19 19 30 30 19 20 21 32 12 23 31 15 25 15 15 25…
Page
HANWHA TECHWIN
33
SM411F
Conveyor Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70521139A DUMP REAR 1
2 J7051106A CAMERA SUPPORT[J7051106A] 1
3 FC09-003239B DUMP_SUPPORT_TN 1 FC09-003239A
4 FC09-003240A REAR_DUMP_SUPPORT_TN 2
5 FC10-000117A DUMP_BOX_ABSORBER 2 J73531004A
Page
HANWHA TECHWIN
34
SM411F

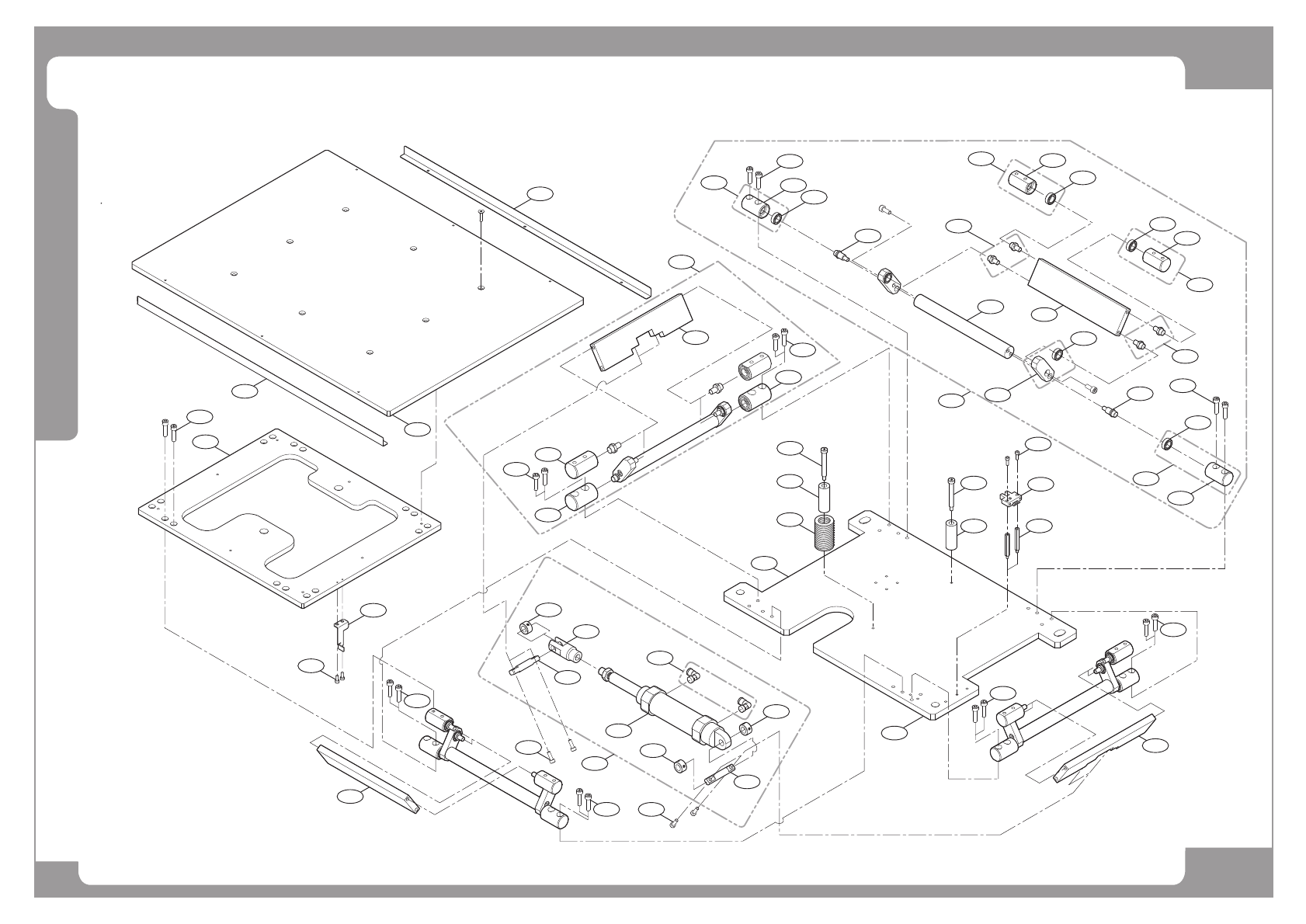

Backup Table Ass’y
8
7
17
10
34
34
24
22
2
22
23
24
22
24
31
22
16
1
29
3
4
28
5
33
27
6
8
31
6
31
9
11
11
12
13
15
14
18
18
31
35
35
31
31
31
19
19
30
30
19
20
21
32
12
23
31
15
25
15
15
25
15
26
26
Page
HANWHA TECHWIN
35
SM411F
Backup Table Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90531132A SM411F_350_BUT_ASSY J90531132A 1
1 J70531801A BUT_SENSOR_DOG J70531801A 1 J70531054A
2 J70531052A LOWER_PLATE J70531052A 1
3 J70531204A BACK_UP_PLATE_350 J70531204A 1
4 J70531053A UPPER_PLATE J70531053A 1
5 EP19-900108 PHOTO SENSOR 1
6 FC18-901994 SHOULDER SCREW[MSB6-40] 2
7 FC38-900013 SPRING[SWU26-70] 1
8 FC29-900536 URETHAN CUSHION[AXNSK15-40] 1
9 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2
10 J90531003A DRIVING_LINK_ASSY 2
11 J7053792A UPPER LINK PIN[J7053792A] 4
12 J7053793A LOWER LINK PIN[J7053793A] 2
13 J7053796A LOWER LINK SHAFT[J7053796A] 1
14 J70530797B LOWER LINK END 1 J7053797A
15 MC03-900022 BALL BEARING 1
16 J90531004A FREE_LINK_ASSY 2
17 J90531005A BUT_CYLINDER_ASSY 1
18 J70530794B CYLINDER JOINT PIN 2 J70530794A
19 J7053795A RING FIXER[J7053795A] 3
20 FC14-900506 CYLINDER JOINT[Y-032B] 1
21 HP03-900013 CYLINDER CM2C32-50-XC3BB 1 J67010088A
22 J90531006A LOWER_BEARING_ASSY 8
23 J7053790A LOWER BEARING HOLDER[J7053790A] 1
24 J90531007A UPPER_BEARING_ASSY 8
25 J7053791A UPPER BEARING HOLDER[J7053791A] 1
