Page HANWHA TECHWIN 42 SM411F Head Ass’y (2/5) 54 A B 24 34 34 36 32 32 51 51 32 51 38 41 32 51 14 9 8 9 7 15 15 21 33 16 12 23 20 52 19 31 30 58 13 13 26 18 50 17 28 54 25 1 5 4 19 54 35 27 54 25 1 19 35 2 2 3 40 39 37 …
Page
HANWHA TECHWIN
41
SM411F
Head Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90551198A SM411F_TOTAL_ST_HEAD_ASSY J90551198A 1
1 J70551039A INNER_COVER_SUPPORT J70551039A 3
2 J71551221A INNER_LIGHT_COVER J71551221A 1 J71551015A
3 FC15-000447B COVER-F_CAMERA_COVER-2_FB;A5052P-H32 1
4 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO BD 1 AM06-000358A
5 AM03-001809A ASSY,OPTICS-FLY_CAM_ONE_KIT_F16 6 J90551081A
6 PT02-000003 CCD,CAMERA-VCC-G20E20BST;ME6:Aluminum 1 PT02-900006
7 J90591012A SM140165_LENS_ASSY J90591012A 1
8 J71551125B BRACKET-CAMERA_HOLDER 1
9 FC09-000780A BRACKET-AIR_MODULE_BKT2 1 J70551044A
10 FC09-000779A BRACKET-AIR_MODULE_BKT1 1 J70551045A
12 J90831039A A_HOME_SENSOR_CABLE_ASSY SM33-HD007 1
13 J90831040A SW_HOME_SENSOR_CABLE_ASSY SM33-HD008 1
14 140-M07-S11 TEACHING CAMERA ASSY 1
15 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 8
16 FC18-902718 SOCKET HEAD CAP SCREW M3*5 (NI/ZN) 6
17 J90551067A AIR MODULE 6
18 FC18-902725 SOCKET HEAD CAP SCREW M3*10 (NI/ZN) 6
19
20
Page
HANWHA TECHWIN
42
SM411F

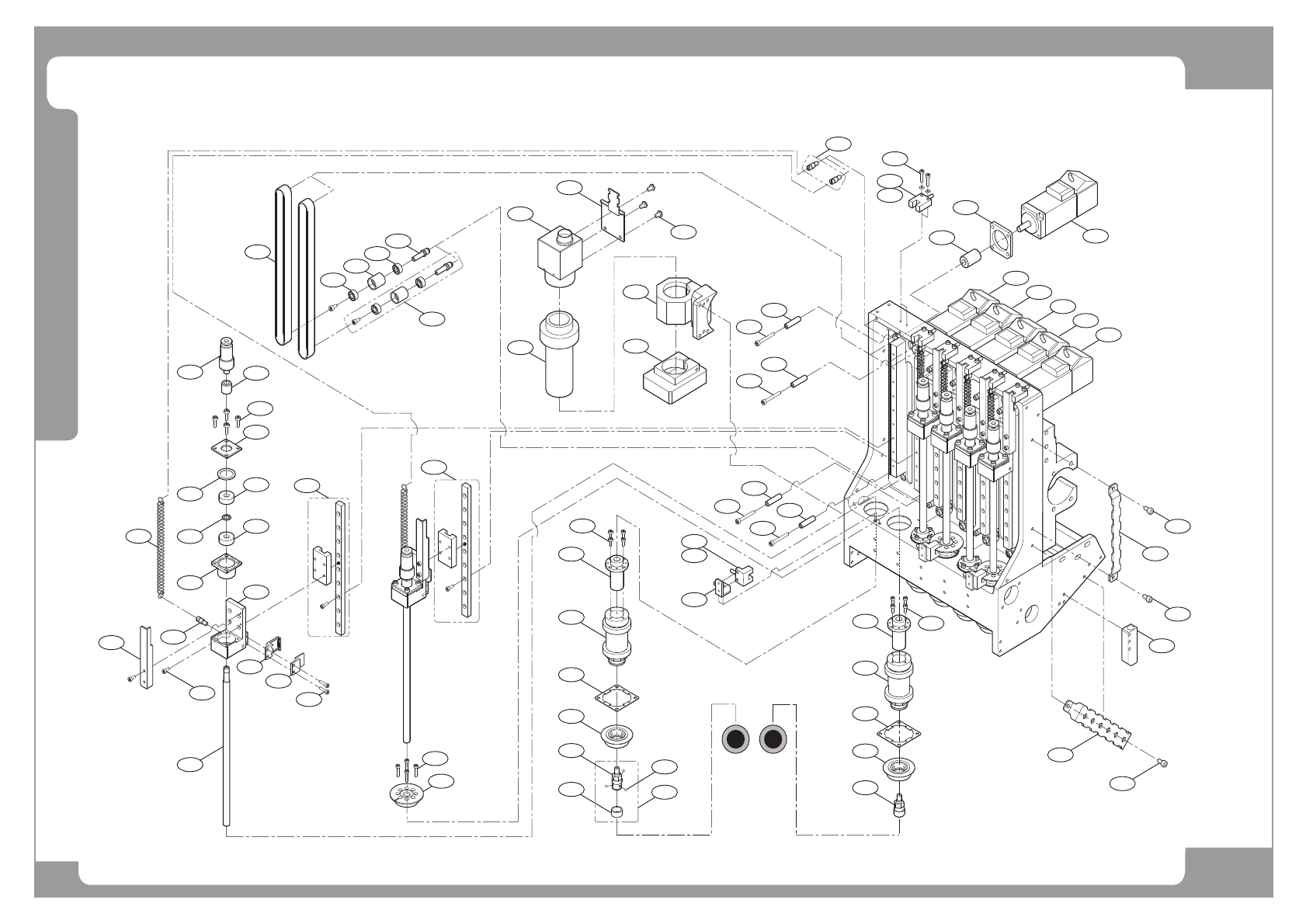

Head Ass’y (2/5)
54
A B
24
34
34
36
32
32
51
51
32
51
38
41
32
51
14
9
8
9
7
15
15
21
33
16
12
23
20
52
19
31
30
58
13
13
26
18
50
17
28
54
25
1
5
4
19
54
35
27
54
25
1
19
35
2
2
3
40
39
37
29
53
6
47
43
44
45
46
42
55
54
54
22
11
48
10
49
57
Page
HANWHA TECHWIN
43
SM411F
Head Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90551007A SPLINE_HOUSING_ASSY 6
2 J90550209B COMMON NOZZLE HOLDER ASSY 6
3 J7055140A STEEL BALL [DIA2, SUS304] 3
4 J70550431C NOZZLE HOLDER 1
5 J7255021B SILICON TUBE(BLACK) [J7255021B] J7255076A
6 J9055357A PULLEY ASSY (Z-AXIS 2) 6
7 J7055658A PULLEY PIN[J7055658A] 1 J7055550A
8 J7155565A PULLEY (Z-AXIS 2)[J7155565A] 1 J7155519A
9 MC03-900127 BALL BEARING[MR684ZZ] 2 MC03-900122
10 EP19-900123 MICRO PHOTO SENSOR[PM-U24] 3
11 EP19-900119 MICRO PHOTO SENSOR[PM-L24] 3
12 FC18-903231 WASHER WAVY 0.62OD*0.48ID*0.095HGT[SSR-0 6
13 MC03-900038 BALL BEARING [605ZZ] 12
14 MC05-900079 TIMING_BELT[348-1.5GT-9] 6
15 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 6 MC13-900022
16 HP06-900053 ROTARY JOINT 6
17 J70551001B BELT_CLAMP1 J70551001B 6 J70551001A
18 J70551002B BELT_CLAMP2 6 J70551002A
19 J70550542D BALL_SPLINE 6 MC13-900256
20 J7055545B SPLINE ALIGNER[J7055545B] 6
21 J70550548B SPRING 6 J70550548A
22 J7055552A SENSOR BRACKET R-H[J7055552A] 3
23 J7055554A SPACER[J7055554A] 6
24 J7055656A Z-TENSION BRACKET[J7055656A] 6
25 J7055659A BEARING PLATE[J7055659A] 6
26 FC06-000011A BED-SLIDE BODY;ALDC12,BLACK ANODIZING 6 J71550508C
27 FC30-000215A PLATE-SENSOR_DOG-R;ALDC-12 3 J71550513C
