Page HANWHA TECHWIN 46 SM411F Head Ass’y (3/5) A B 9 11 8 10 7 1 3 2 4 6 12 13 14 5 15 17 18 19 18 16 20 21
Page
HANWHA TECHWIN
45
SM411F
Head Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
55 J90831472A BLOW_SWITCHING_TBEAM_CABLE_ASSY 1
56 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 8
57
Page
HANWHA TECHWIN
46
SM411F

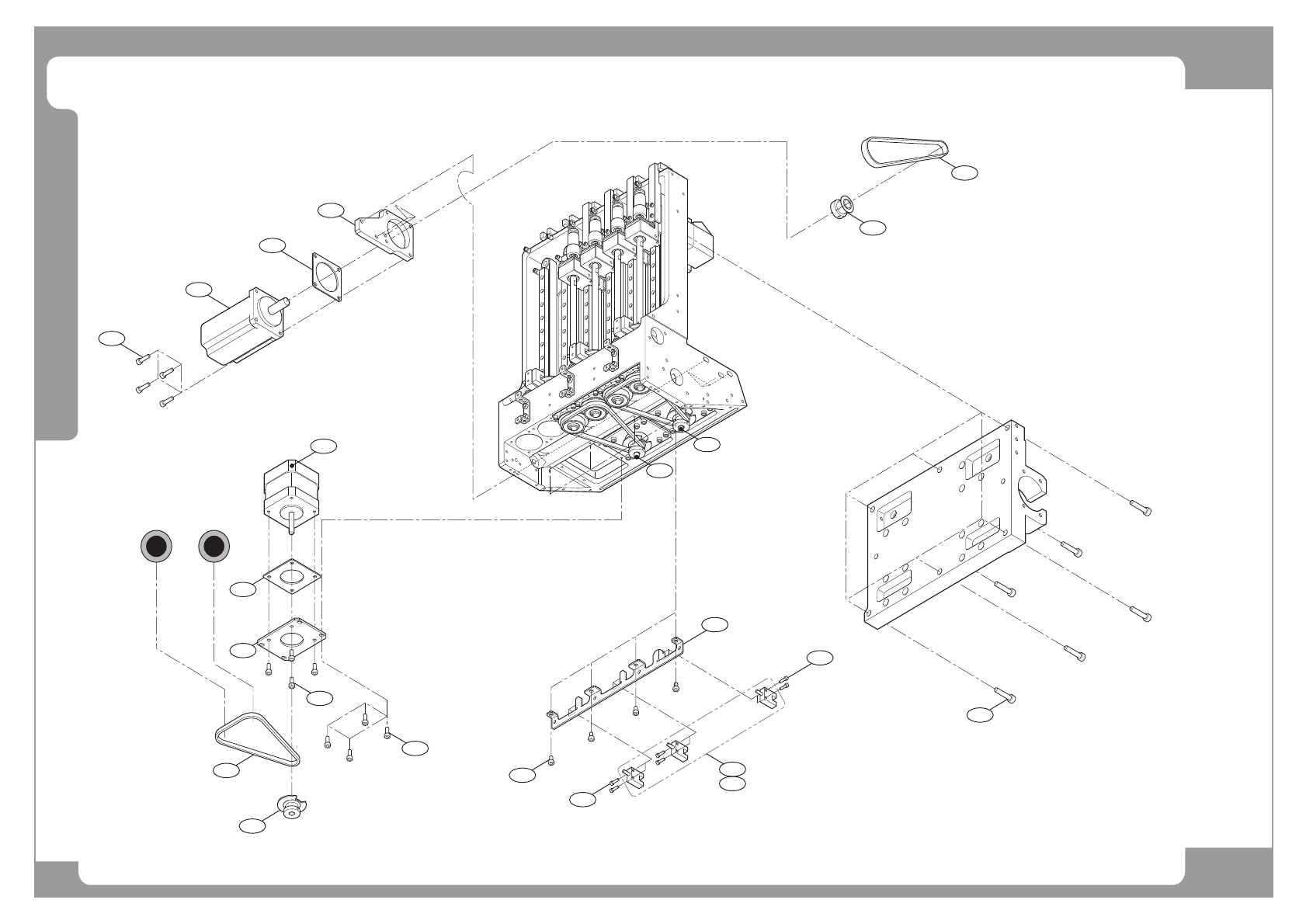

Head Ass’y (3/5)
A
B
9
11
8
10
7
1
3
2
4
6
12
13
14
5
15
17
18
19
18
16
20
21
Page
HANWHA TECHWIN
47
SM411F
Head Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM16-000013A ASSY,CABLE-SWING MOTOR CABLE ASS'Y 1 EP08-900133
2 J71551017A MIRROR_MOTOR_BRACKET J71551017A 1
3 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1
4 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1
5 EP19-900123 MICRO PHOTO SENSOR[PM-U24] 3
6 MC05-900055 TIMING_BETL 267-3GT-6 1
7 J70551040A SENSOR_BRACKET_R-M J70551040A 1
8 J7055655A THETA MOTOR PLATE[J7055655A] 3
9 J71551025A PULLEY-R_AXIS2 J71551025A 3
10 J7255083A THETA MOTOR ISOLATOR[J7255083A] 3
11 MC05-900075 TIMING_BELT 232-2GT-4 1
12 FC14-000121A BLOW_FILTER_CAP 6
13 HP04-000018B FILTER_ELEMENT 6 HP04-000018A
14 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6
15 J90831176B Z2 MOTOR CABLE ASS'Y 1 J90831176A
16 FC18-902743 SOCKET HEAD CAP SCREW M4*12 (NI/ZN) 4
17
18 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 6
19 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 4
20
21
