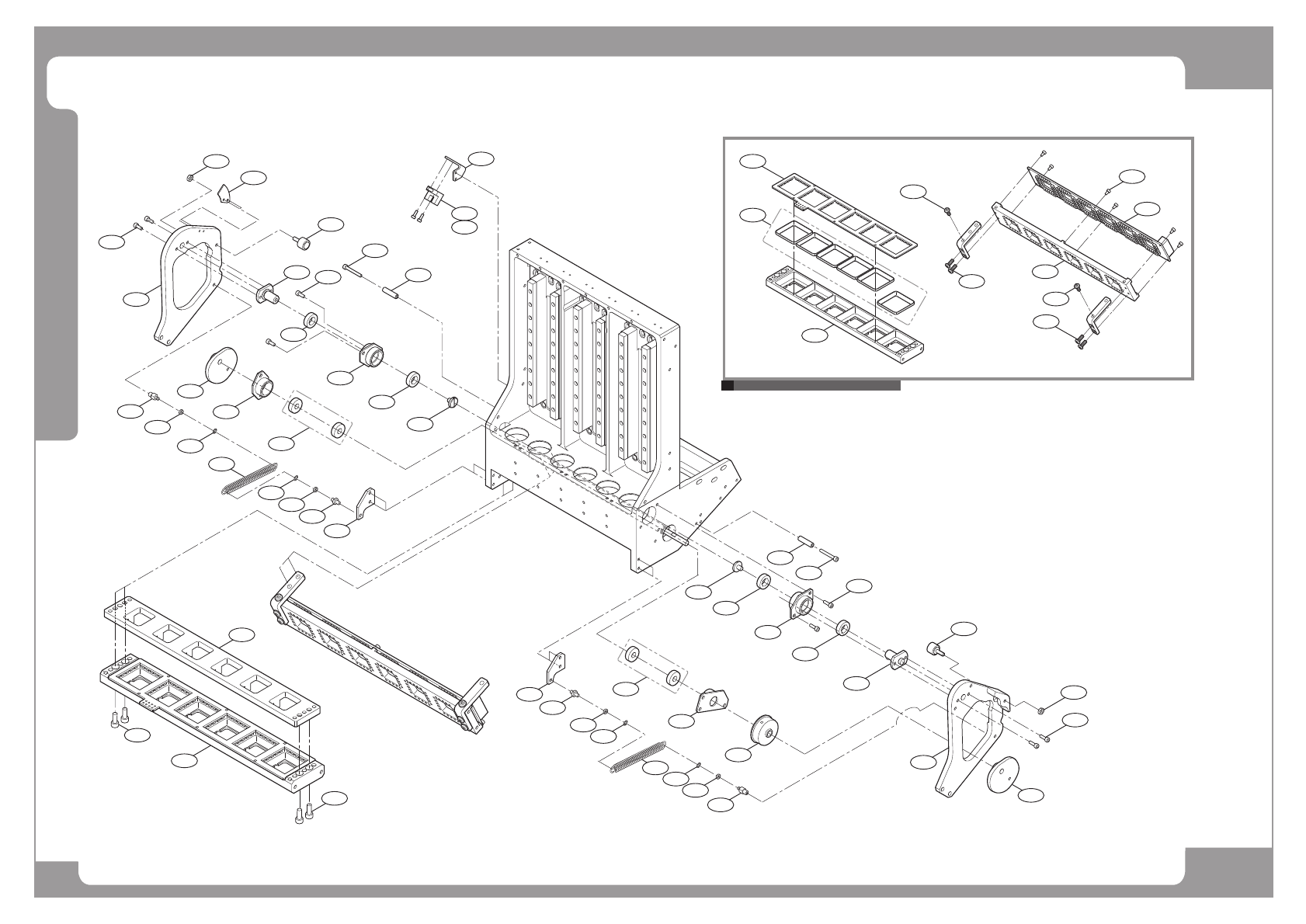

Page HANWHA TECHWIN 48 SM411F Head Ass’y (4/5) 27 14 14 12 11 5 2 16 33 6 8 10 10 9 12 29 28 27 14 12 25 28 4 3 6 14 12 11 29 17 7 15 1 32 34 13 5 35 33 9 10 8 10 1 32 7 16 13 15 33 34 26 31 CAMERA ASS'Y(F25, MEGA-F…
Page
HANWHA TECHWIN
47
SM411F
Head Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM16-000013A ASSY,CABLE-SWING MOTOR CABLE ASS'Y 1 EP08-900133
2 J71551017A MIRROR_MOTOR_BRACKET J71551017A 1
3 J7255081A MIRROR MOTOR ISOLATOR[J7255081A] 1
4 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1
5 EP19-900123 MICRO PHOTO SENSOR[PM-U24] 3
6 MC05-900055 TIMING_BETL 267-3GT-6 1
7 J70551040A SENSOR_BRACKET_R-M J70551040A 1
8 J7055655A THETA MOTOR PLATE[J7055655A] 3
9 J71551025A PULLEY-R_AXIS2 J71551025A 3
10 J7255083A THETA MOTOR ISOLATOR[J7255083A] 3
11 MC05-900075 TIMING_BELT 232-2GT-4 1
12 FC14-000121A BLOW_FILTER_CAP 6
13 HP04-000018B FILTER_ELEMENT 6 HP04-000018A
14 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6
15 J90831176B Z2 MOTOR CABLE ASS'Y 1 J90831176A
16 FC18-902743 SOCKET HEAD CAP SCREW M4*12 (NI/ZN) 4
17
18 FC18-902706 SOCKET HEAD CAP SCREW M2*8 (NI/ZN) 6
19 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 4
20
21
Page
HANWHA TECHWIN
48
SM411F
Head Ass’y (4/5)
27
14
14
12
11
5
2
16
33
6
8
10
10
9
12
29
28
27
14
12
25
28
4
3
6
14
12
11
29
17
7
15
1
32
34
13
5
35
33
9
10
8
10
1
32
7
16
13
15
33
34
26
31
CAMERA ASS'Y(F25, MEGA-F25)
18
19
22
23
37
33
20
37
24
36
18
30
35
Page
HANWHA TECHWIN
49
SM411F
Head Ass’y (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J71550511B STOPPER J7155511A 14 J71550511A
2 J70551118A MIRROR_SHAFT J70551118A 1
3 J7055557A BEARING HOUSING[J7055557A] 1
4 J71551026A PULLEY-S_AXIS1 J71551026A 1
5 J70551272B MIRROR_CAM 1 J70551272A
6 MC03-900033 BALL BEARING [695ZZ] 2
7 J7055204A ARM JOINT [J7055204A] 1
8 J70551037A MIRROR_JOINT J70551037A 1
9 FC18-001484A MIRROR SCREW 1 J7055153A
10 MC03-900034 BALL BEARING [MR148ZZ] 2
11 FC29-004275A SPRING_POST-MOVING 1 J70551042A
12 J7455026A SPRING BUSH[J7455026A] 1
13 MC11-900055 CAM FOLLOWER [CF3UU-A] 1
14 FC18-901347 E-RING[DIA1.5(SUS)] 1
15 FC18-901043 HEX NUT 1
16 J71551217A MIRROR_ARM-CAMERA J71551217A 1
17 J71551043A MIRROR_SENSOR_DOG J71551043A 1
18 J90551197A SM411F_HEAD_ILLUM_ASSY J90551197A 1
19 J71551019A SIDE_ILLUM_BODY J71551019A 1
20 J71551218A OUTER_ILLUM_BODY J71551218A 1
22 J72550084B SIDE REFLECTOR J72550084B 6 J72550084A
23 J90601013A SM411_HEAD_SIDE_LED_BOARD-ASSY J90601013 1
24 J91741024A SM411_OUTER_LED_BOARD 1
25 J70551041A SPRING_POST-FIXED J70551041A 1
26 EP19-900119 MICRO PHOTO SENSOR[PM-L24] 3
27 FC38-900017 TENSION_SPRING AWU6-45 2
28 J70551038A MIRROR_SPRING_BRACKET J70551038A 2
