Page HANWHA TECHWIN 66 SM411F X-Y Frame Ass’y (1/5) 4 4 14 9 12 14 28 2 5 2 5 2 5 2 5 10 4 1 25 7 8 17 2 5 18 19 20 11 6 3 13 16 15 21 22 23 23 24 26 27
Page
HANWHA TECHWIN
65
SM411F
Air Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 HP11-900093 VACUUM_GENERATOR VKME10A-S448S2-B04 2
2 HP06-900251 STRAIGHT FITTING [SS8-1/8] 2
3 HP06-900051 ELBOW FITTING 2 HP06-900264
4 HP06-900050 UNION Y FITTING 2 HP06-900199
5 FC14-900724 PLUG [PT 1/8] 6
6 HP13-900089 MULTI TUBE[UML-408 (BL-BK6-BL)] 7
7 HP09-900118 REGULATOR HP09-900118 2
8 HP06-900093 STRAIGHT FITTING[KQ2H04-00/PU4] 2
Page
HANWHA TECHWIN
66
SM411F

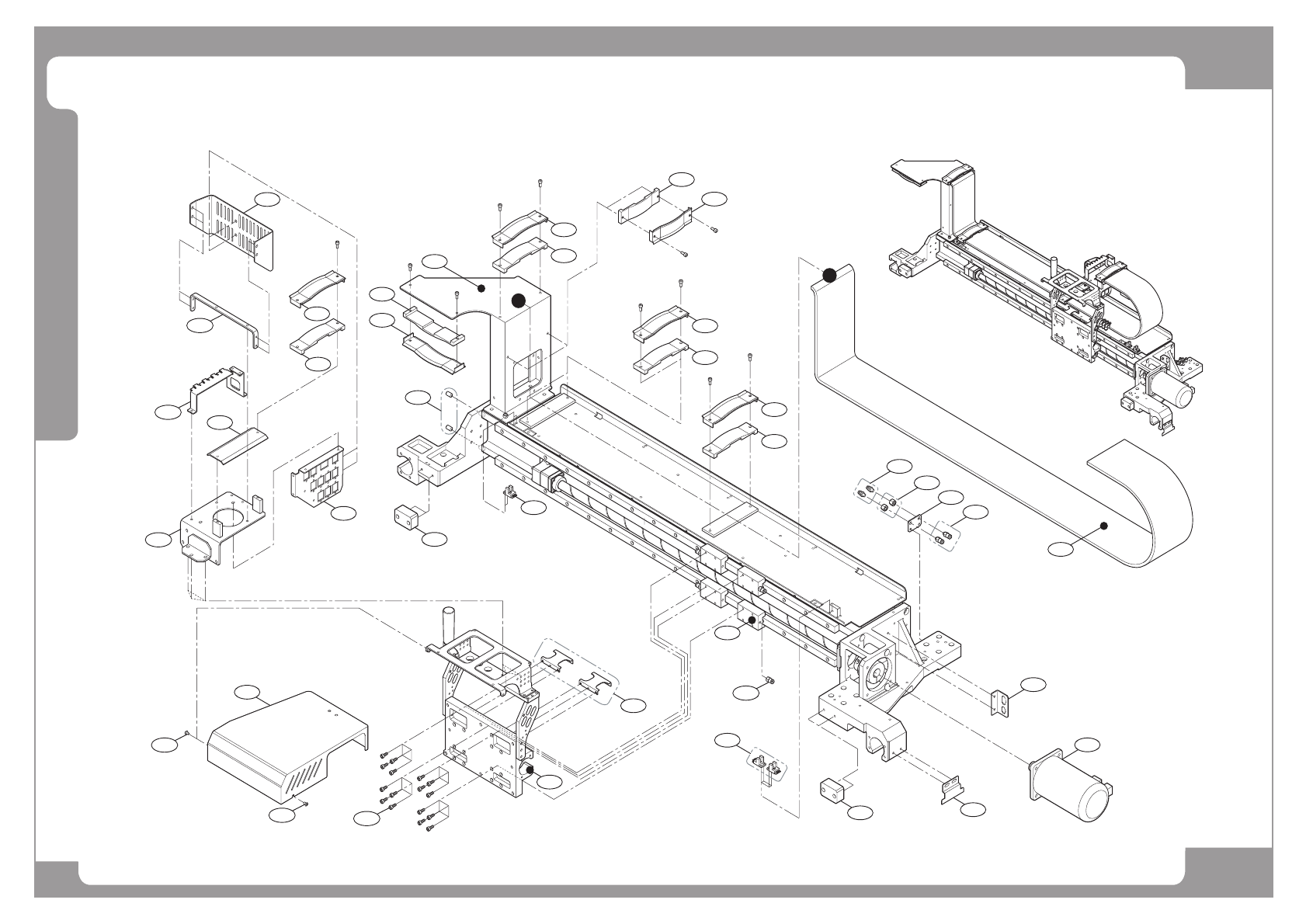

X-Y Frame Ass’y (1/5)
4
4
14
9
12
14
28
2
5
2
5
2
5
2
5
10
4
1
25
7
8
17
2
5
18
19
20
11
6
3
13
16
15
21
22
23
23
24
26
27
Page
HANWHA TECHWIN
67
SM411F
X-Y Frame Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90541042A SM411F_X_Y_ASSY J90541042A 1
1 J7354024A CABLE CUSHION Y[J7354024A] 1
2 J7354023A CABLE CUSHION X[J7354023A] 4
3 FC05-000292A BASE-HEAD_SM411F;AC4C-T6 1 J71541020A/ J71541323A
4 J7054256A CUSHION BRACKET Y[J7054256A] 1
5 J7054255A CUSHION BRACKET X[J7054255A] 4
6 FC18-001477A GREASE_NIPPLE_NUT 4 J70541105A
7 J70541099A Y_NIPPLE_PLATE J70541099A 2
8 J70541038A SENSOR_DOG_X J70541038A 2
9 J70541008A SENSOR_DOG-Y J70541008A 1
10 J70541007A BRACKET_CABLE_CHAIN-Y J70541007A 1
11 FC28-900369 GREASE NIPPLE [M6*1.0-STRAIGHT] 4
12 MC13-900032 LM_GUIDE-X SSR15XW2UUC1+940LHY-2 2
13 FC18-901203 DOWEL PIN [MS6-10] 4
14 J72541002A CUSHION_CRASH J72541002A 2
15 AM03-015006A INNER GUIDE-MAT 6 J7254016D/ J72540016E
16 J71541079B HEAD_TOP_COVER 2 J71541079A
17 J71541078A HEAD_FRONT_COVER J71541078A 2
18 HP06-900080 STRAIGHT_FITTING KQ2H04-M6 1
19 FC09-004585A SERVO CONNECTOR BKT 1 J70530690B
20 EP08-900157 SERVO_MOTOR MHMD082G1A 2 EP08-900122
21
22
23
24 J71541018A CABLEVEYOR BRACKET 1
25 J7054255A CUSHION BRACKET X[J7054255A] 1
26 J70541100A CABLE_SPACER J70541100A 1
