Page HANWHA TECHWIN 75 SM411F X-Y Frame Ass’y (4/5) NO. PA R T N O . P ART NAME Q'TY Old No. Stoc k Apply Refere nce 1 J70541005C Y_MOT OR_BLOCK 1 J70541005B 2 MC04-90002 8 SUPPOR T UNIT[FK-15] 1 3 J72541006A ST OPP…
Page
HANWHA TECHWIN
74
SM411F

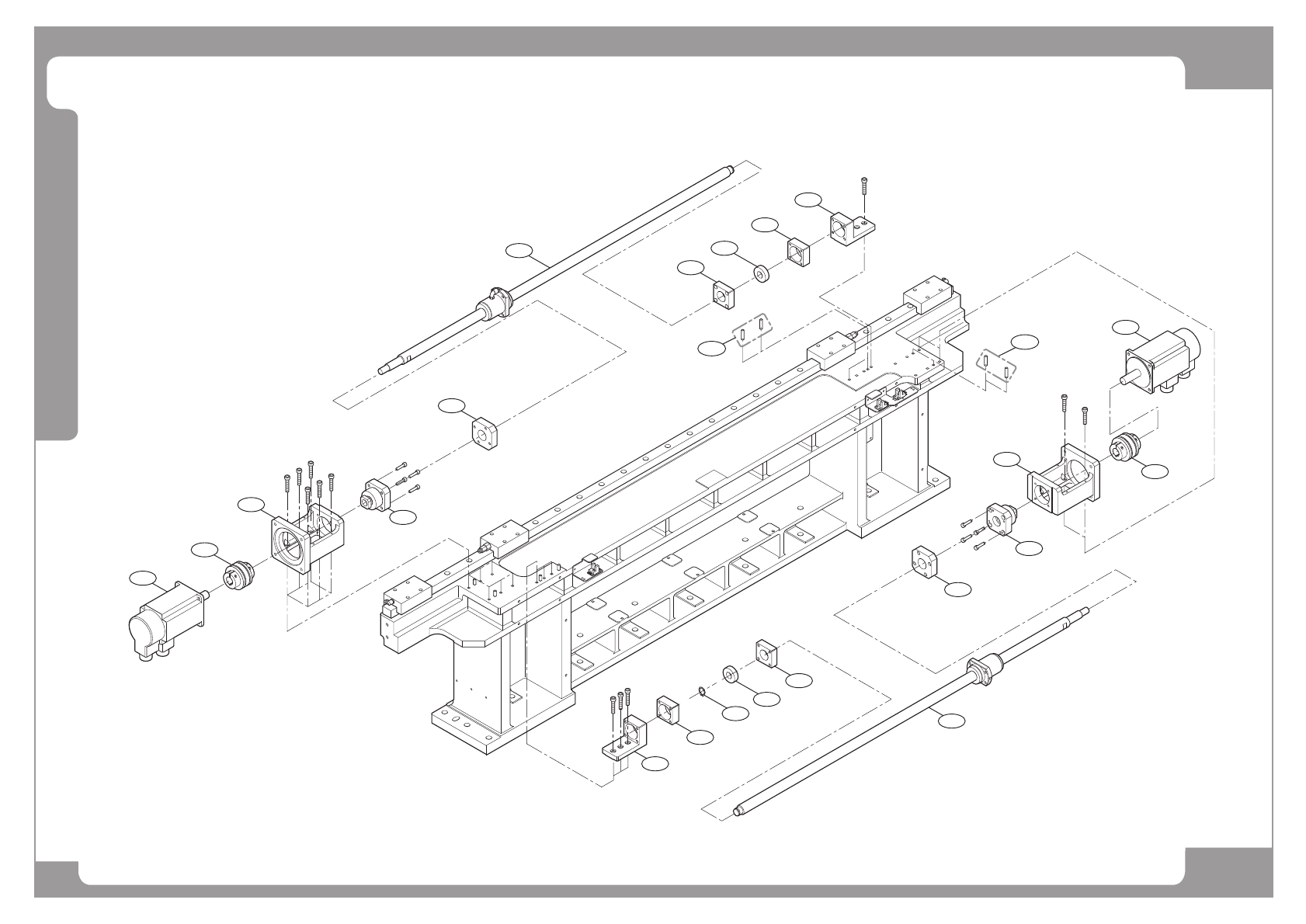

X-Y Frame Ass’y (4/5)
F.R
R.L
9
1
1
10
3
4
5
8
7
6
2
2
3
5
8
12
7
6
9
10
4
11
11
Page
HANWHA TECHWIN
75
SM411F
X-Y Frame Ass’y (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70541005C Y_MOTOR_BLOCK 1 J70541005B
2 MC04-900028 SUPPORT UNIT[FK-15] 1
3 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1
4 MC13-900160 Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 1
5 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1
6 J70541006C BS_REAR_SUPPORT 1 J70541006A
7 J70541030A BRG_HOUSING_Y J70541030A 1
8 MC03-900027 BALL BEARING 1
9 EP08-900158 SERVO_MOTOR MSMA102G2C 4 EP08-900123
10 FC14-900237 COUPLING[SFC 050DA 12B-19B(TYPE A)] 4 FC14-900243
11
Page
HANWHA TECHWIN
76
SM411F
X-Y Frame Ass’y (5/5)
6
1
2
5
7
3
4
Vacuum Generator Ass'y
Driver BOX Ass'y
9
8
10
