Page HANWHA TECHWIN 76 SM411F X-Y Frame Ass’y (5/5) 6 1 2 5 7 3 4 V acuum Generator Ass'y Driver BOX Ass'y 9 8 10
Page
HANWHA TECHWIN
75
SM411F
X-Y Frame Ass’y (4/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70541005C Y_MOTOR_BLOCK 1 J70541005B
2 MC04-900028 SUPPORT UNIT[FK-15] 1
3 J72541006A STOPPER_Y_BALL_SCREW_FRONT J72541006A 1
4 MC13-900160 Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 1
5 J72541004A STOPPER_Y_BALL_SCREW J72541004A 1
6 J70541006C BS_REAR_SUPPORT 1 J70541006A
7 J70541030A BRG_HOUSING_Y J70541030A 1
8 MC03-900027 BALL BEARING 1
9 EP08-900158 SERVO_MOTOR MSMA102G2C 4 EP08-900123
10 FC14-900237 COUPLING[SFC 050DA 12B-19B(TYPE A)] 4 FC14-900243
11
Page
HANWHA TECHWIN
76
SM411F

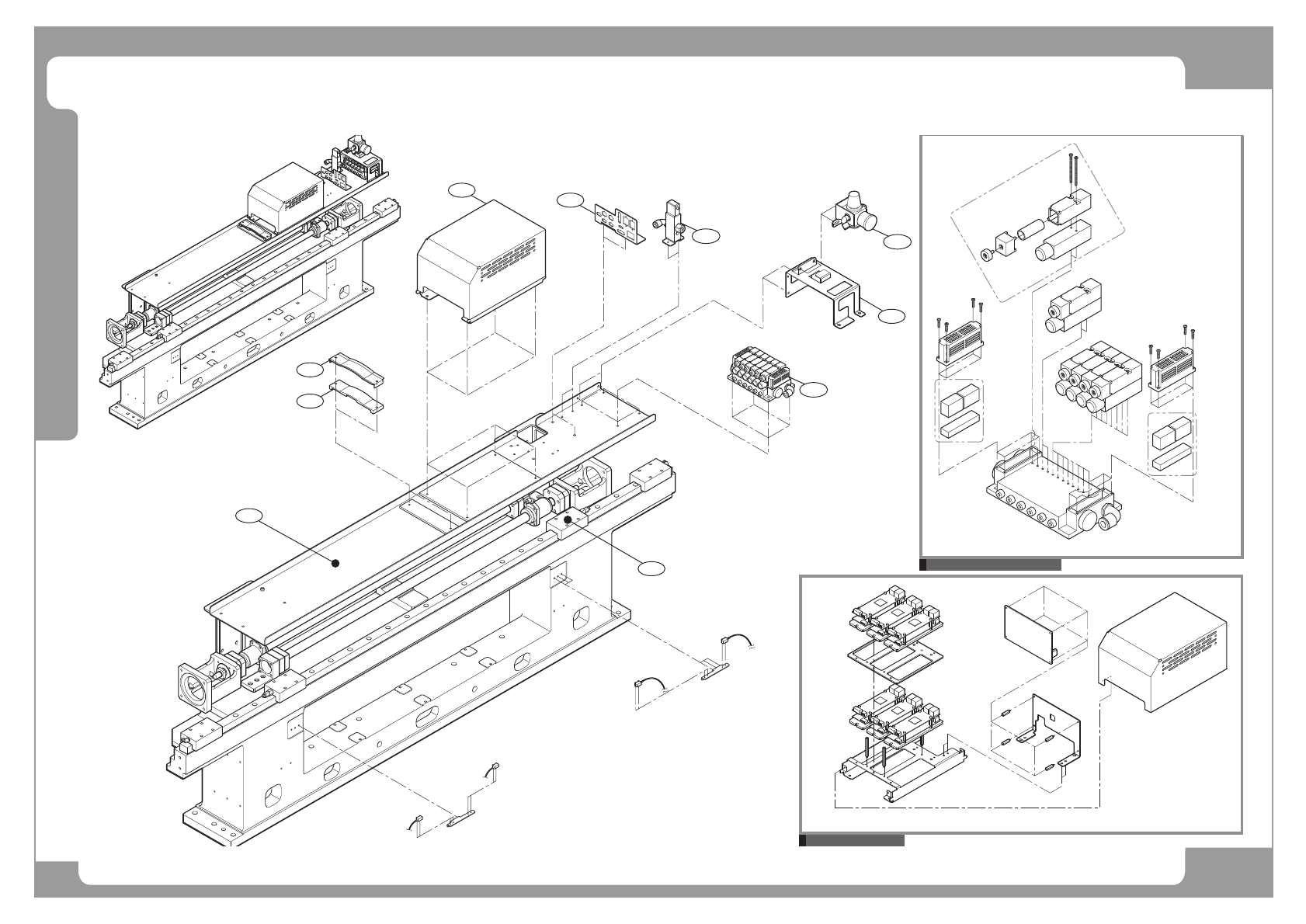

X-Y Frame Ass’y (5/5)
6
1
2
5
7
3
4
Vacuum Generator Ass'y
Driver BOX Ass'y
9
8
10
Page
HANWHA TECHWIN
77
SM411F
X-Y Frame Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J7354024A CABLE CUSHION Y[J7354024A] 1
2 J7054256A CUSHION BRACKET Y[J7054256A] 1
3 MC13-900031 LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1
4 J70541104B VACUMM_GEN_BKT 1 J70541104A
5 J70541101E CONNECTOR_PANEL-Y 1 J70541101A
6 J91651042A Y_CABLE_DUCT_SUPPORT-2-ASSY J91651042A 1 J70541012C
7
8
9
10
