Page HANWHA TECHWIN 78 SM411F Fixed ANC Ass’y 1 11 4 1 5 6 2 3 10 11 7 8 9 8 6
Page
HANWHA TECHWIN
77
SM411F
X-Y Frame Ass’y (5/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J7354024A CABLE CUSHION Y[J7354024A] 1
2 J7054256A CUSHION BRACKET Y[J7054256A] 1
3 MC13-900031 LM_GUIDE-Y SSR25XWY4UUE+1530LYH-2 1
4 J70541104B VACUMM_GEN_BKT 1 J70541104A
5 J70541101E CONNECTOR_PANEL-Y 1 J70541101A
6 J91651042A Y_CABLE_DUCT_SUPPORT-2-ASSY J91651042A 1 J70541012C
7
8
9
10
Page
HANWHA TECHWIN
78
SM411F

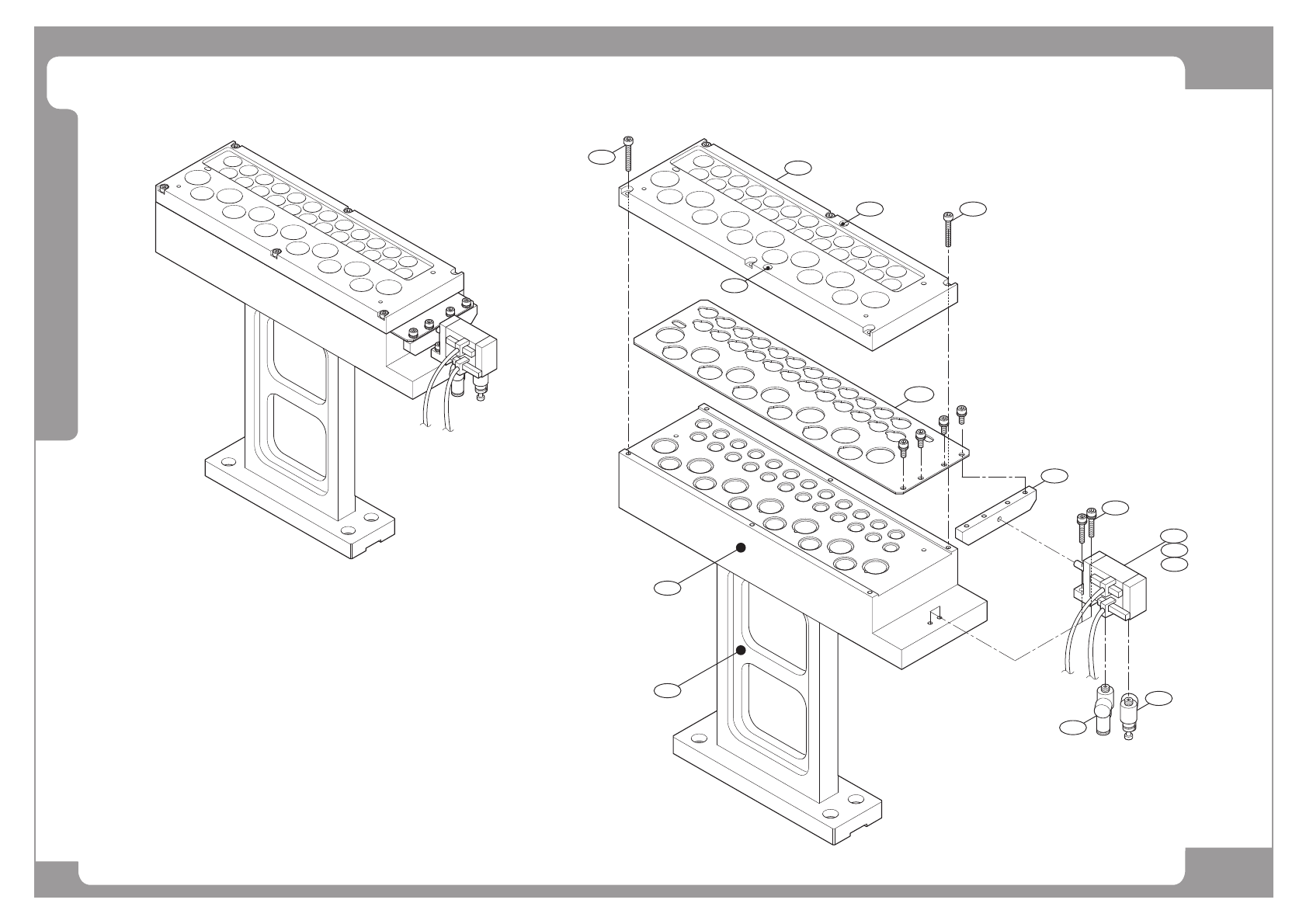

Fixed ANC Ass’y
1
11
4
1
5
6
2
3
10
11
7
8
9
8
6
Page
HANWHA TECHWIN
79
SM411F
Fixed ANC Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 AM03-001812A ASSY,ANC-MT411FA-NC00A-ANC_ASSY 2 J90561014A /AM03-001536A
1 HP14-900085 SPEED CONTROLLER [SS4-M5MA] 2
2 J7156053B ANC SUPPORT [J7156053A] 1 J7156053A
3 J7156087A SHUTTER BRACKET[J7156087A] 1
4 J71561016A ANC_PLATE J71561016A 1
5 J71561036A NOZZLE_SHUTTER_SMALL_PIN J71561036A 1 J7156094A
6 J71561017A MAIN_BODY 1
7 HP03-900032 AIR CYLINDER BDAS 10X5-1A-ZC153A2 1
8 J9080778B ANC SENSOR CABLE ASSY[SM-CV010] 1 J9080778A
