Page HANWHA TECHWIN 81 SM411F Window Ass’y NO. PA R T N O . P ART NAME Q'TY Old No. Stoc k Apply Refere nce A-1 J905210 18A ACRYL_DOOR_ ASSY_STD J905 21018A 1 1 J90521002B ACRY L DOOR ASSY 2 J90521002A 2 J72521005B …

100%1 / 186
80
SM411F

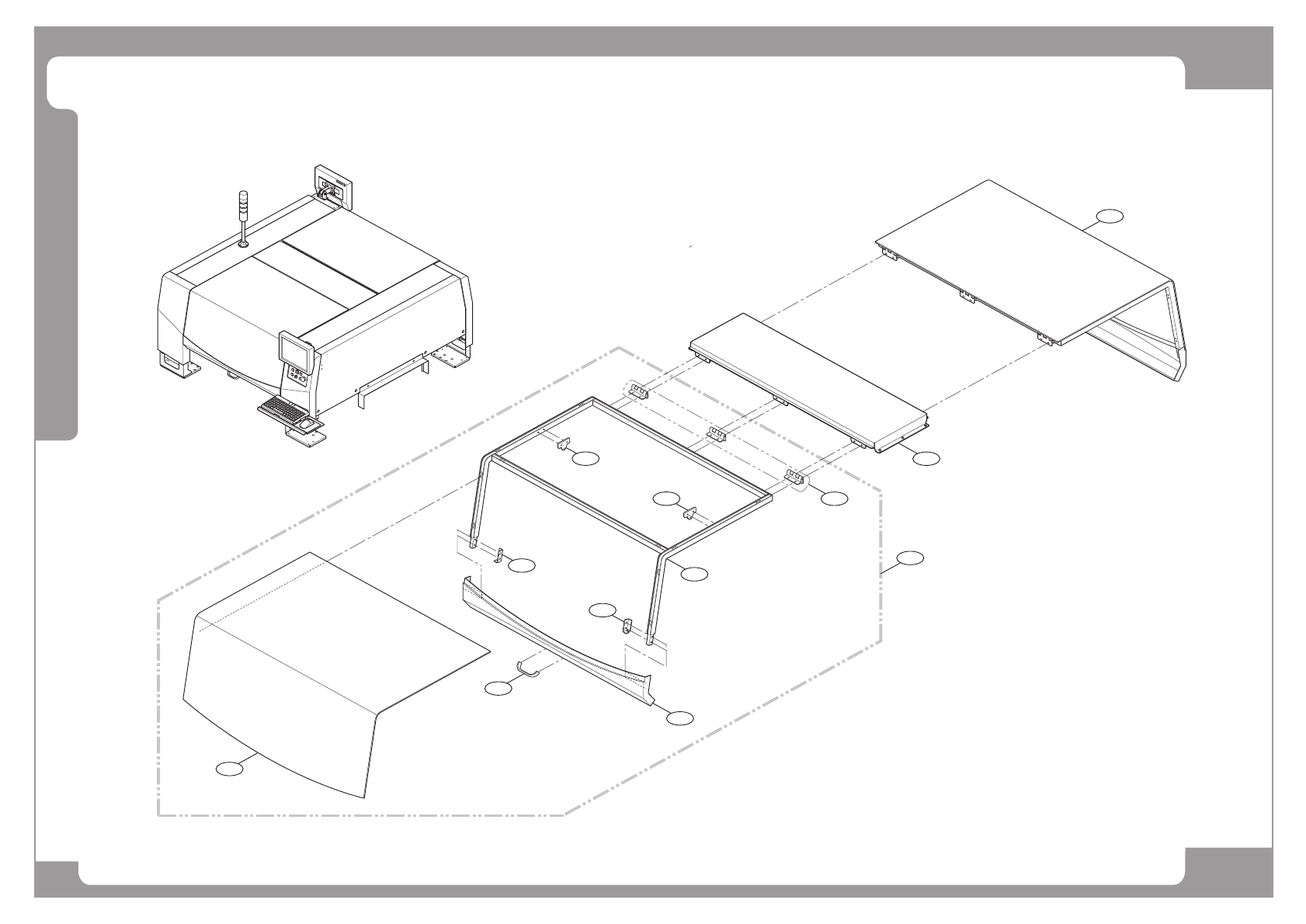

Window Ass’y
1
5
5
7
2
3
4
8
4
6
1
STOP
RESET
SELECT
FEEDER
CHANGE
START
READY
7
81
SM411F
Window Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521018A ACRYL_DOOR_ASSY_STD J90521018A 1
1 J90521002B ACRYL DOOR ASSY 2 J90521002A
2 J72521005B ACRYL COVER 1
3 J70521087A WINDOW_HINGE J70521087A 3
4 J70521050D ACRYL_COVER_HANDLE 1 J70521050C
5 FC09-000705A BRACKET-GAS_SPRING_BRACKET2 2 J70521081B
6 J70521120C ACRYL_COVER_HANDLE-R 1 FC29-900147
7
8
A-2 J90521019A ACRYL_DOOR_ASSY_ESD J90521019A 1
82
SM411F

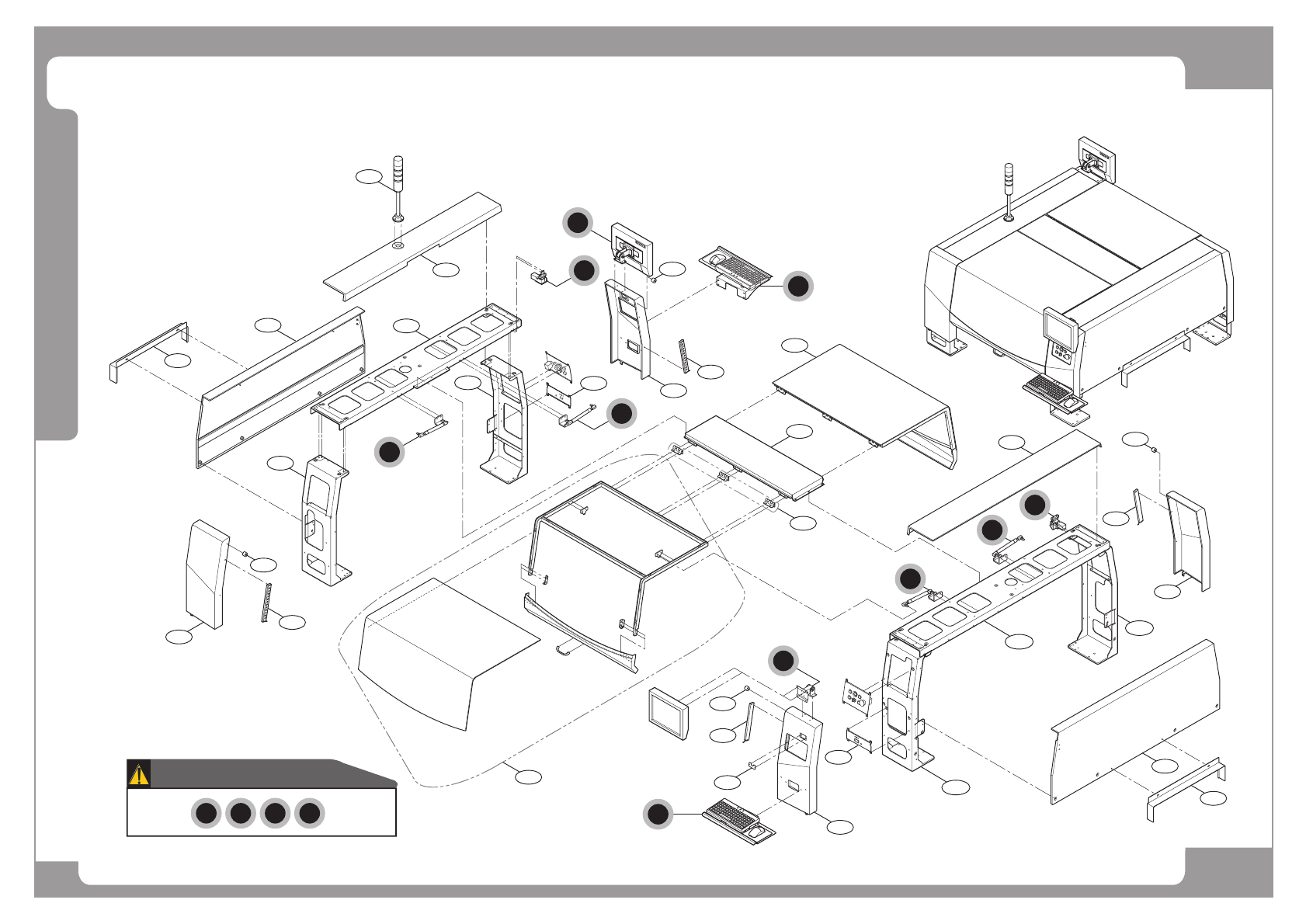

Cover Ass’y (1/3)
Refer to 'Detail View'
A B C D
A
C
D
D
C
11
5
14
15
18
2
3
A
6
13
6
4
13
1
17
A
13
12
16
13
4
4
4
8
2
7
15
14
STOP
R
ESET
SELECT
FEEDER
CHANGE
S
TA
RT
READY
A
A
B
9
10
S
TOP
RESET
SELECT
FEEDER
CHANGE
START
READY
A
B
16
1
