Page HANWHA TECHWIN 83 SM411F Cover Ass’y (1/3) NO. PA R T N O . P ART NAME Q'TY Old No. Stoc k Apply Refere nce A-1 J905210 42A COVER_ASSY J905210 42A 1 1 J70521027B UPPER COVER F L 2 J70521026A 2 J91651041A COVER …
Page
HANWHA TECHWIN
82
SM411F
Cover Ass’y (1/3)
Refer to 'Detail View'
A B C D
A
C
D
D
C
11
5
14
15
18
2
3
A
6
13
6
4
13
1
17
A
13
12
16
13
4
4
4
8
2
7
15
14
STOP
R
ESET
SELECT
FEEDER
CHANGE
S
TA
RT
READY
A
A
B
9
10
S
TOP
RESET
SELECT
FEEDER
CHANGE
START
READY
A
B
16
1
Page
HANWHA TECHWIN
83
SM411F
Cover Ass’y (1/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A-1 J90521042A COVER_ASSY J90521042A 1
1 J70521027B UPPER COVER FL 2 J70521026A
2 J91651041A COVER FRAME TOP 1 ASSY 2
3 J70521150B TOP SIDE COVER R 1 J70521150A
4 EP19-900124 AREA SENSOR[BWP20-12] 4
5 J70521151B TOP SIDE COVER L 1 J70521151A
6 J70521027B UPPER COVER FL 2 J70521027A
7 J91651046A COVER_FRAME_SUB_R-ASSY 1 J91651048A
8 J70521376C COVER FRAME REAR R 1 J70521376B
9 J70521379C COVER FRAME FRONT L 1 J70521379B
10 J91651047A COVER FRAME SUB L ASSY 1
11 J70521378B TOP COVER-2 1 J70521378A
12 J7070297A MONITOR CABLE COVER[J7070297A] 1
13 J73520001B DOOR CUSHION [J73520001B] 4
14 J70521053B CONVEYOR COVER 2 J70521053A
15 J70521038B UPPER SIDE COVER 2 J70521038A
16 J70521025B SM330 LOWER OP PANEL 2
17
18
A-2 J90721033A NON_SCANNER_ASSY J90721033A 1
A-3 J90721034A LT_SCANNER_ASSY_LR J90721034A 1
A-4 J90721035A LT_SCANNER_ASSY_RL J90721035A 1
A-5 J91731014A AREA_SENSOR_ASSY J91731014A 1
Page
HANWHA TECHWIN
84
SM411F

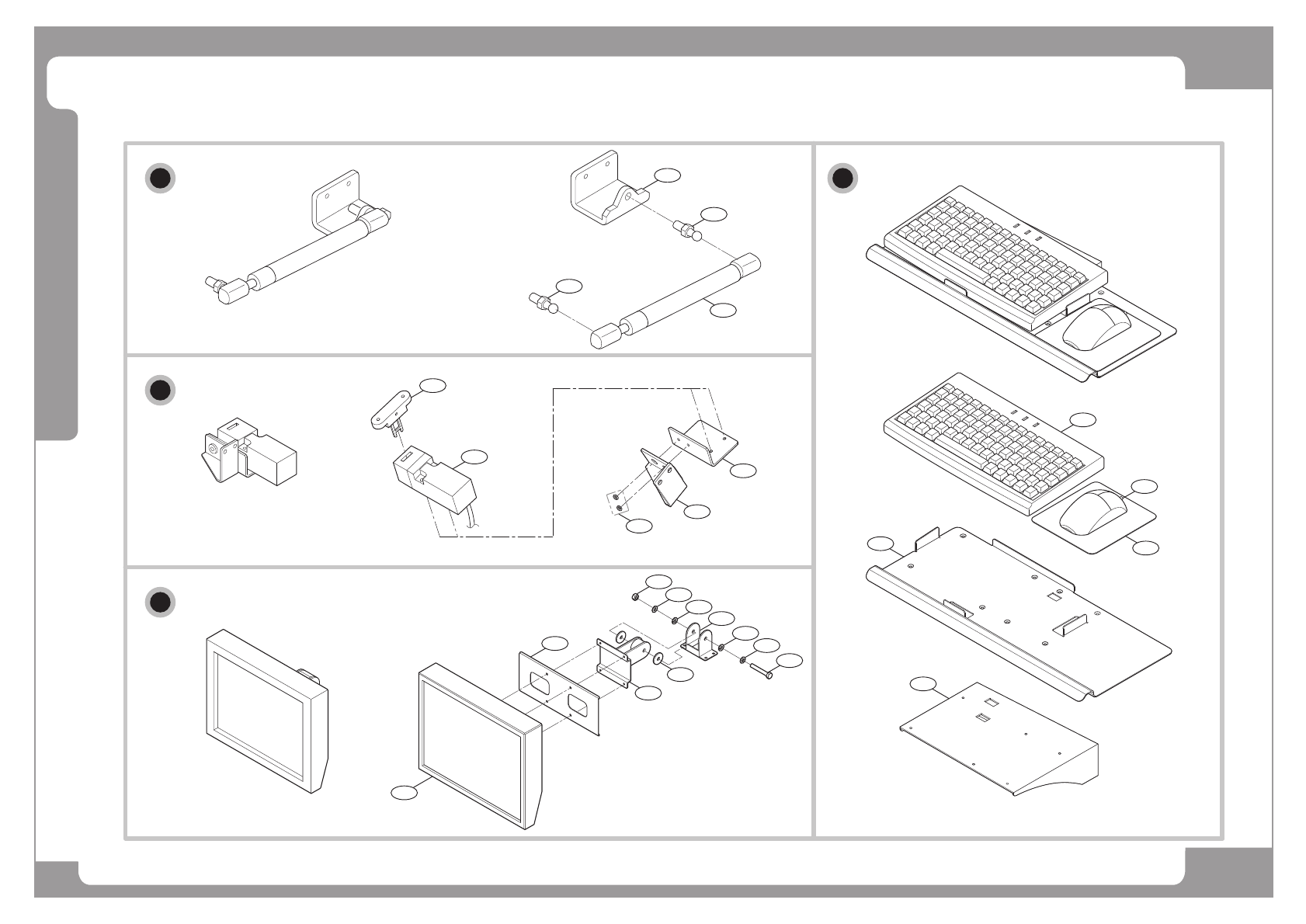

Cover Ass’y (2/3)
