Page HANWHA TECHWIN 86 SM411F Cover Ass’y (3/3) 5 6 18 XW X^ 7 X[ 20 21 XW XW 7 YY 10 13 16 ` 1 2 6 3 1 2 9 X[ X` YX [ X\ ` 9 _ YY YY XX XY
Page
HANWHA TECHWIN
85
SM411F
Cover Ass’y (2/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC38-900086 GAS_SPRING KS2-300-PS1-028 4
2 J70521075D GAS SPRING BRACKET1 4
3 J70521158A LCD_HINGE_PLATE J70521158A 1
4 J70521059A LCD BRACKET 1
5 J7252061A PAD-BRACKET[J7252061A] 2
6 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 1 CD05-900119/ CD05-900126
7 FC15-000505A COVER-MONITOR_GUIDE_PL;SPCC,WHITE 1 J70521373A
8 J70521112C KEYBOARD BASE 1
9 J70521113C KEYBOARD BASE BRACKET 1
10 J90511018B DOOR SWITCH ASSY 1
11 FC18-903482 FLAT WASHER [M8] 2
12 FC18-901051 NYLON NUT[M8] 1
13
14 J7070218C SENSOR BRACKET 2[J7070218C] 2 J7070218B
15 J70521381B DOOR_SWITCH_BRACKET-2 2 J70521054A
16 J7070341A WASHER-M4[J7070341A] 4
17
18
19
20 FC18-903497 SPRING WASHER[M8 (SUS)] 2
21 FC18-900485 HEX CAP SCREW[M8 X 55L] 1
22 EP20-900156 DOOR KEY 2
Page
HANWHA TECHWIN
86
SM411F

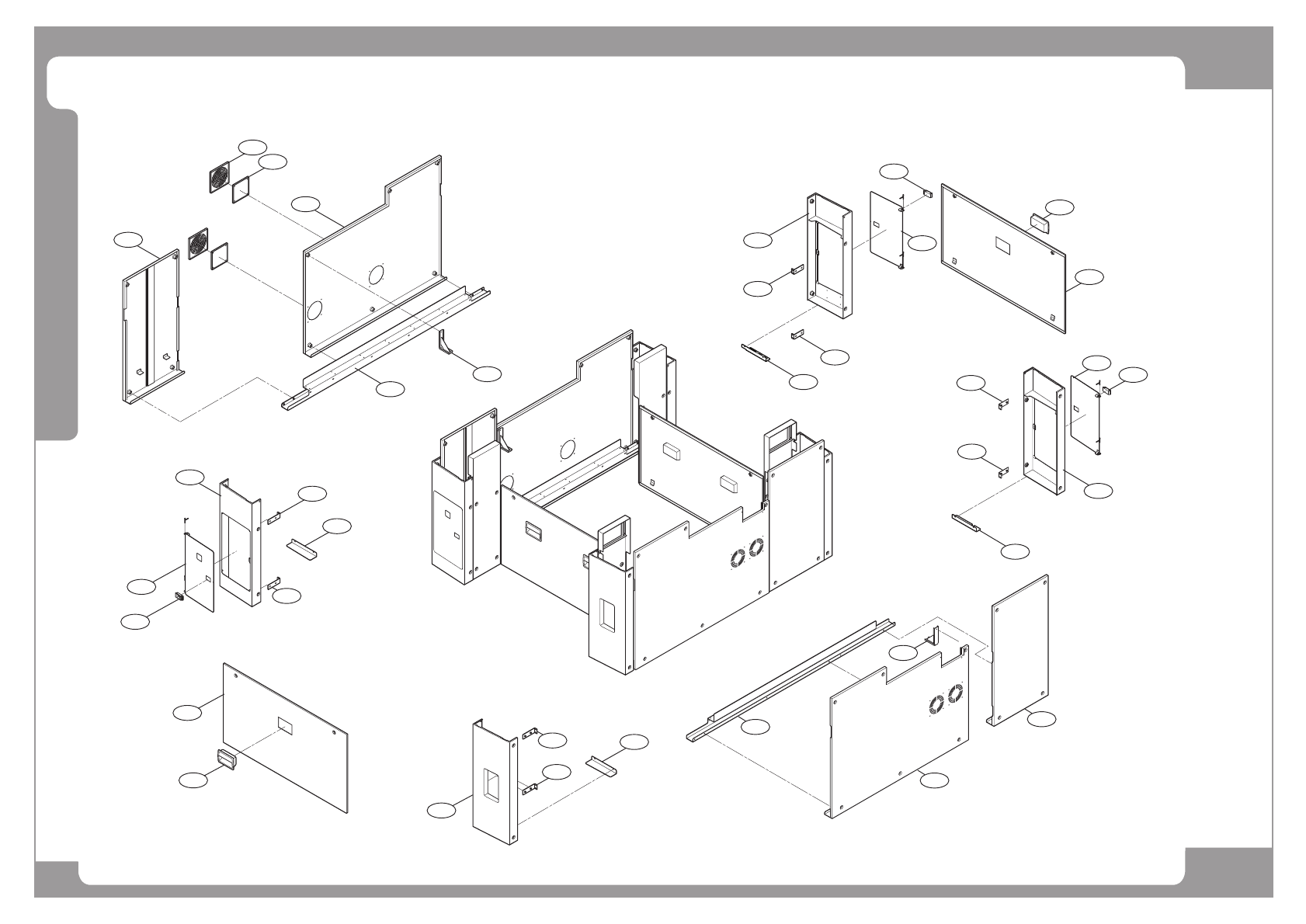

Cover Ass’y (3/3)
5
6
18
XW
X^
7
X[
20
21
XW
XW
7
YY
10
13
16
`
1
2
6
3
1
2
9
X[
X`
YX
[
X\
`
9
_
YY
YY
XX
XY
Page
HANWHA TECHWIN
87
SM411F
Cover Ass’y (3/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC29-900144 DRAWER PULL [HD-108] 2
2 FC15-003228A COVER LFM 2 J70521033A/ J70521033B
3 J70521390A LOWER_OPEN_DOOR-A J70521390A 1
4 J70521386A LOWER_CABLE_DUCT-R-2 J70521386A 1
5 J70521387A LOWER_CABLE_DUCT-L-2 J70521387A 1
6 J70521391A LOWER_OPEN_DOOR-B J70521391A 2
7 J70521383B LOWER COVER L-2 2
8 J70521382B LOWER COVER R-2 1
9 J70521388A CATCH BRACKET F-2 4
10 J70521389A CATCH BRACKET R-2 4
11 EP07-901528 FAN FILTER 120MM(NMB) 2 HP04-900010
12 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2
13 J70521385B LOWER COVER RL-2 1
14 J70521049B SIDE COVER SUPPORT 2 J70521049A
15 J70521045B BOTTOM COVER FR 1 J70521045A
16 J70521046B BOTTOM COVER FR 1 J70521046A
17 FC15-000985A BOTTOM COVER RR 1 J70521047B
18 FC15-001391A BOTTOM COVER RL 1 J70521048A/ J70521048B
19 J70521154B LOWER_SIDE_COVER-R 1
20 J70521035D LOWER SIDE COVER L 1 J70521035A
21 J70521036D LOWER_SIDE_COVER J70521036D 2 J70521036A
22 FC29-900217 SLIDE_LATCH A3-40-625-12 3
