15.8 Accessories
15.8.1 Vibration kit
For casing sizes 5 - 8
The vibration kit comprises the following:
Vibration damping corner foot (1)
Vibration damping centre foot (2)
The vibration kit can be used to decouple the cooling unit from solid-borne noise transmission from
its relevant contact surface/base.
For example:
Installing the cooling unit
a) On a roof or
b) Ground-level noise reduction version

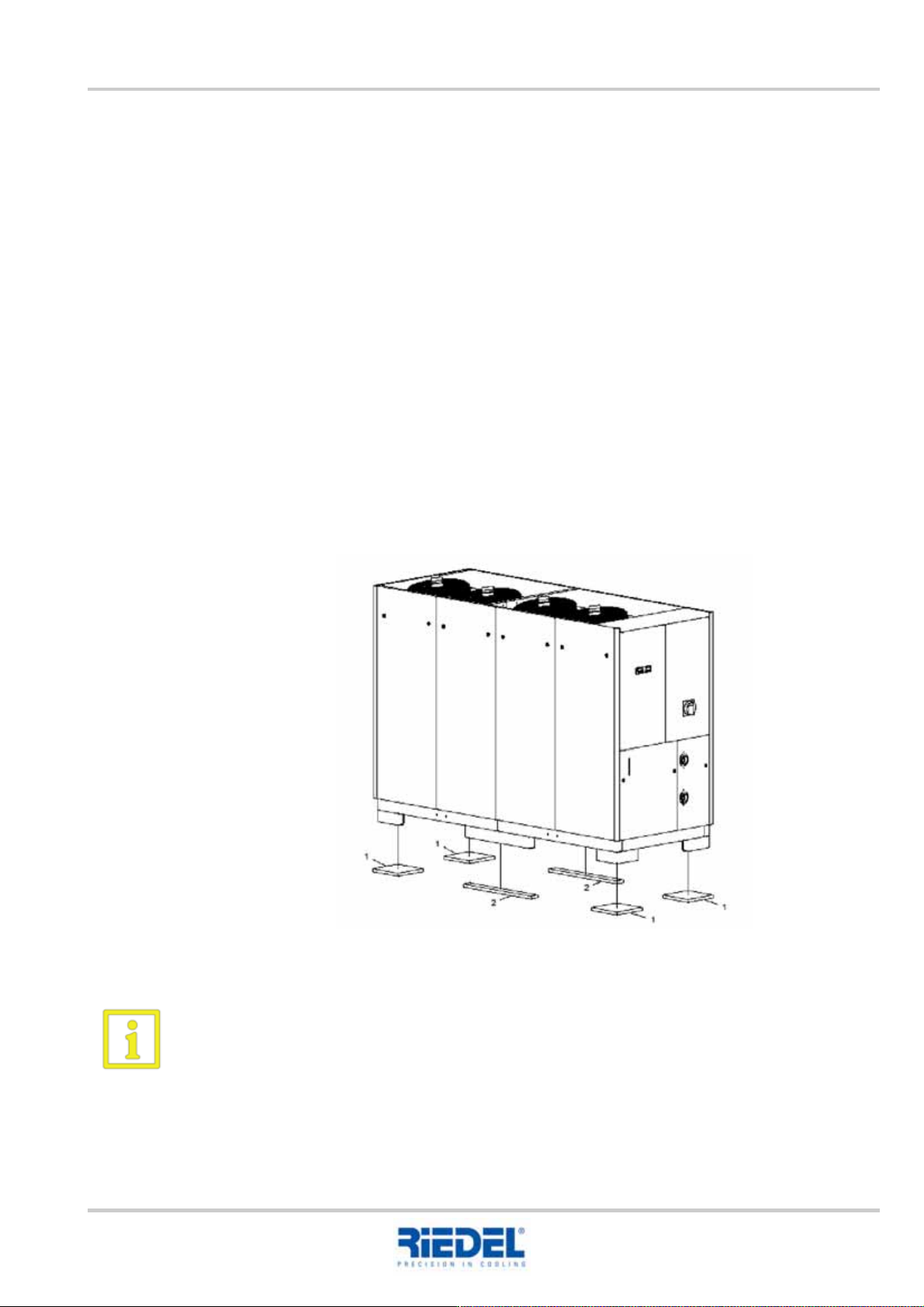

Example figure
Pipework must also be decoupled during installation.
15. OPTIONS AND ACCESSORIES ENGLISH Translation of the original
94
451820.66.03_EN
2020-05-05

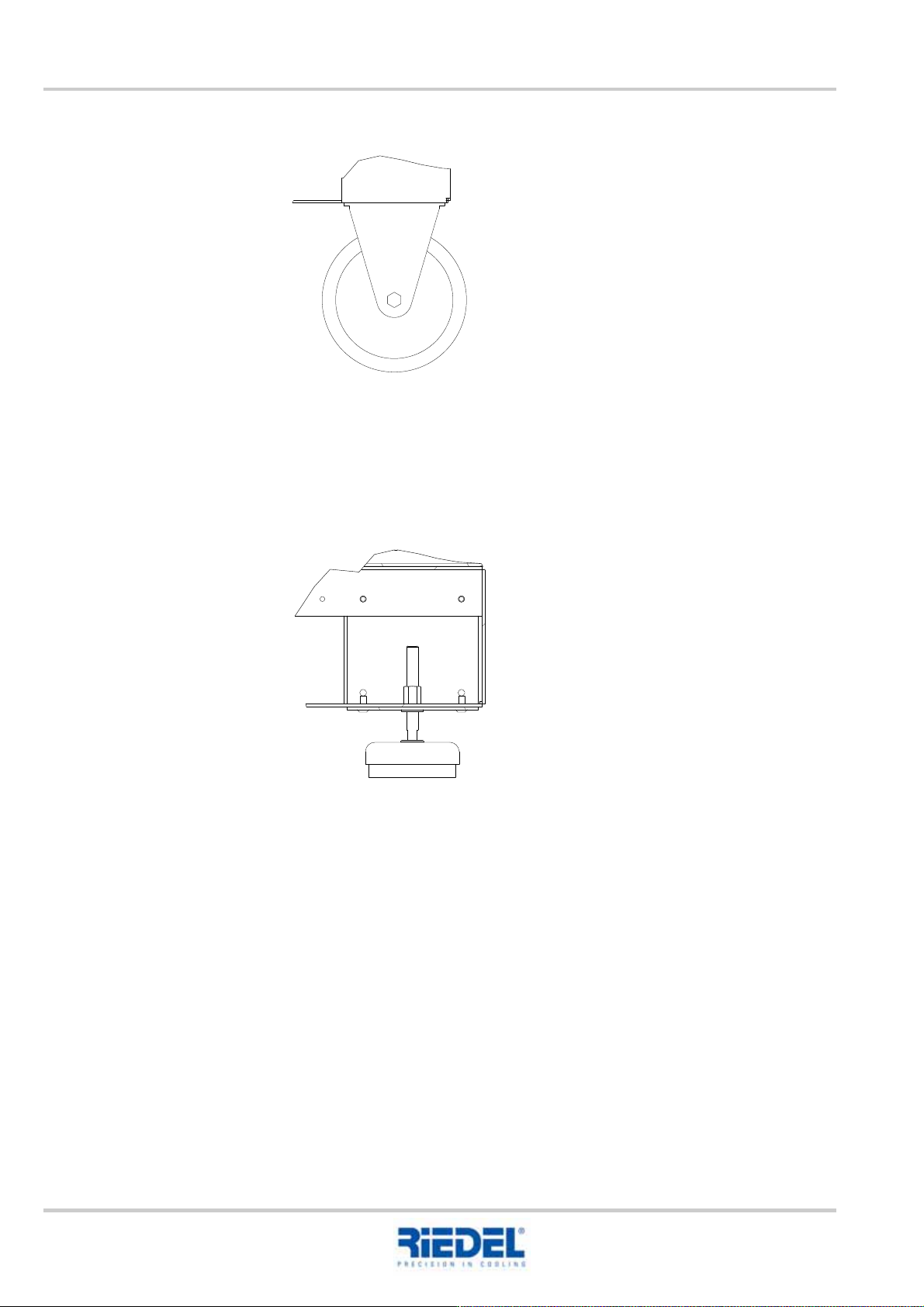

15.8.2 Swivel castors and fixed castors
15.8.3 Levelling feet
The levelling feet are used for vibration decoupling and height adjustment purposes. They consist of
a threaded rod and a cup with an attached elastic element. The threaded rod is used for height
adjustment and to compensate for floor slopes. The elastic element features a non-slip coating.
15.8.4 Collection tray
The collection tray is a safety measure for catching liquid media.
Translation of the original ENGLISH
451820.66.03_EN
2020-05-05
Sample system log
Unit type:
Year of construction:
Max. permissible operating overpressure:
Refrigerant:
Refrigerant fill quantity:
1 Details of all maintenance and repair work
2 Volume and type (new, reused or recycled) of filled refrigerant, volume and type of refrigerant drained from
the unit
3 If an analysis of the reused refrigerant exists, enter the relevant results here
4 The source of the employed refrigerant
5 Modification and replacement of device components
6 Results of all regular routine checks
7 Extended downtimes
