5-5 5 Lubrication points and schedule 2.5 Z-axis (Spline shaft) n NOTE Basically, the lubricating the spline shaft (Z-axis) is not required. However , the grease on the spline shaft sur face is removed by touching with h…
5-4
5
Lubrication points and schedule

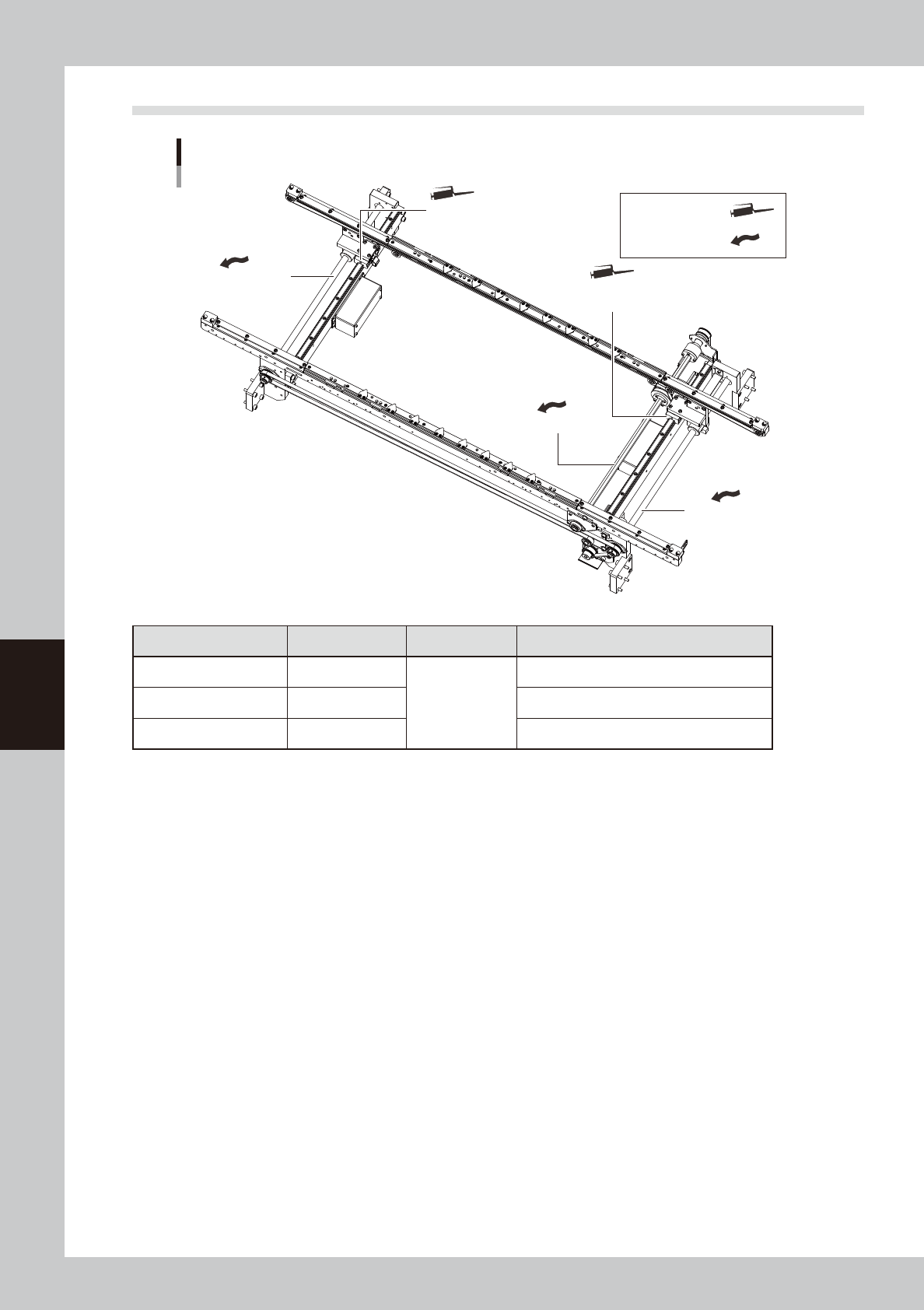

2.4 W-axis (Conveyor)
W-axis lubrication points
W-axis ball screw
W-axis ball screw
W-axis guide
Grease nipple
W-axis guide
Grease nipple
W-axis hexagon spline
Grease gun:
Manual lubrication:
53504-M7-10
Lubrication section Lubrication point Interval Procedure
Guide 2
Once every
6 months
Grease gun: Standard nozzle (ø10 mm)
Ball screw 2 Manual lubrication
Hexagon spline 1 Manual lubrication
5-5
5
Lubrication points and schedule

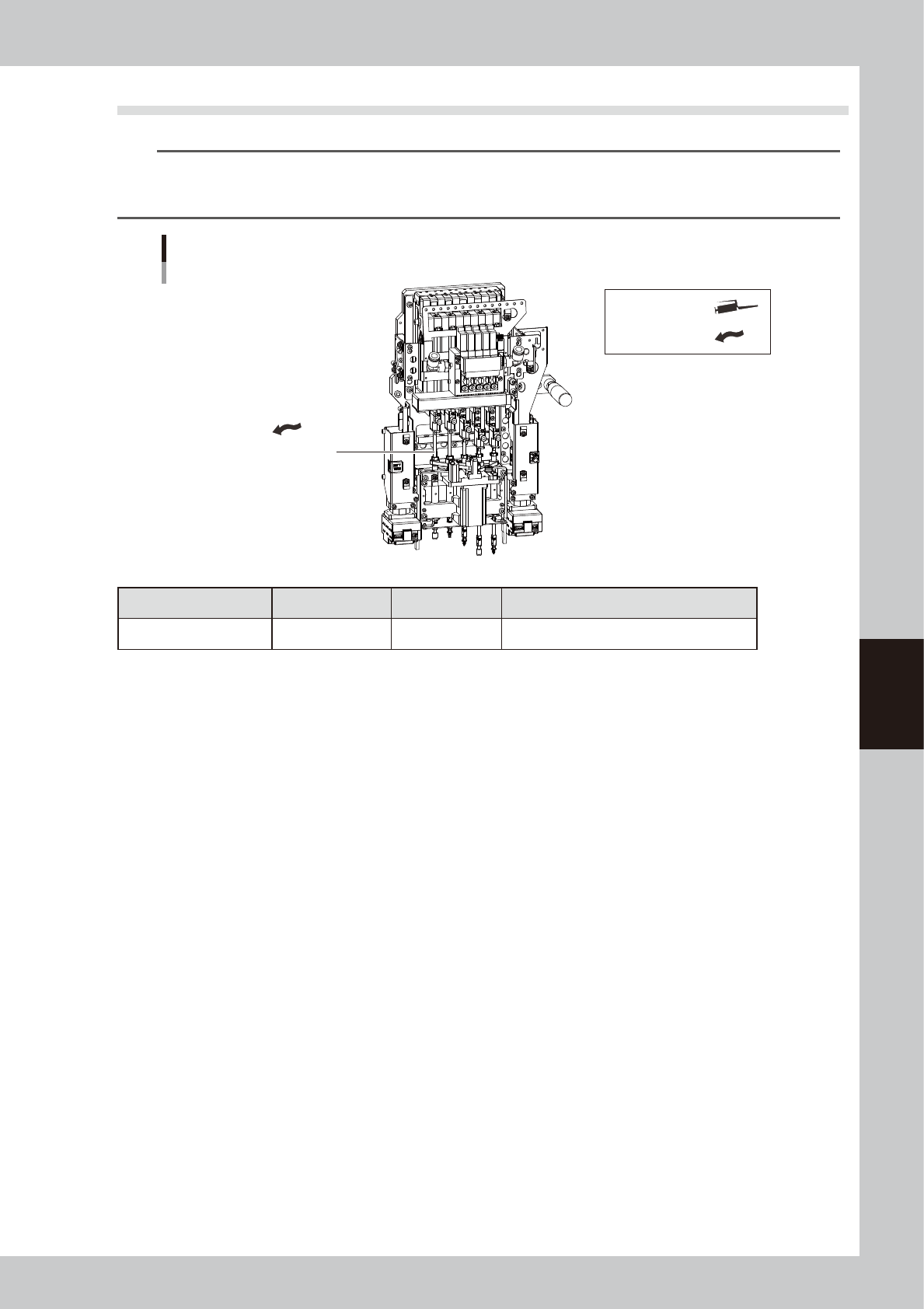

2.5 Z-axis (Spline shaft)
n
NOTE
Basically, the lubricating the spline shaft (Z-axis) is not required. However, the grease on the spline shaft surface is
removed by touching with hand or by sprinkling solvent. As a result, the spline shaft gets easily rusted. Apply the
specified grease (NSL) slightly for anti-rusting as needed.
Z-axis lubrication points
Grease gun:
Manual lubrication:
Z-axis spline shaft
53505-M7-00
Lubrication section Lubrication point Interval Procedure
Z-axis spline shaft 5 As needed Apply a thin coat of grease by hand.
