xxxi Safety instructions n Label positions W arning/caution labels YS12F Rear side ■ Open/close cover inner side ■ Open/close cove, Conveyor opening ■ Lower panels ■ Panel inner side ■ Side ■ Cutter section ■ Feeder setu…
xxx
Safety instructions
n
Label positions
Warning/caution labels

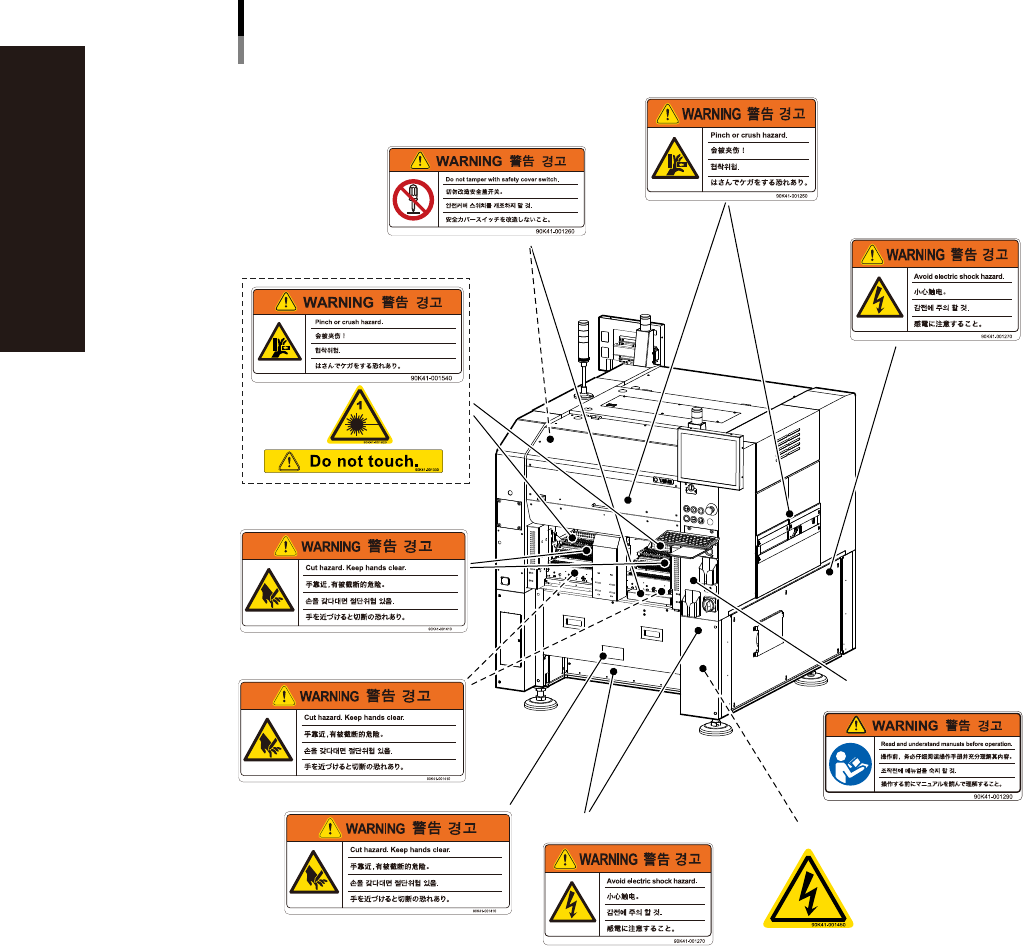

YS12F Front side
■ Open/close cover inner side
■ Cutter section
■ Open/close cover, Conveyor opening
■ Lower panels
■ Side
■ Main switch
■ Feeder setup section
■ Cutter section
■ Panel inner side
■ Cutter inner side
93201-L7-20
xxxi
Safety instructions
n
Label positions
Warning/caution labels

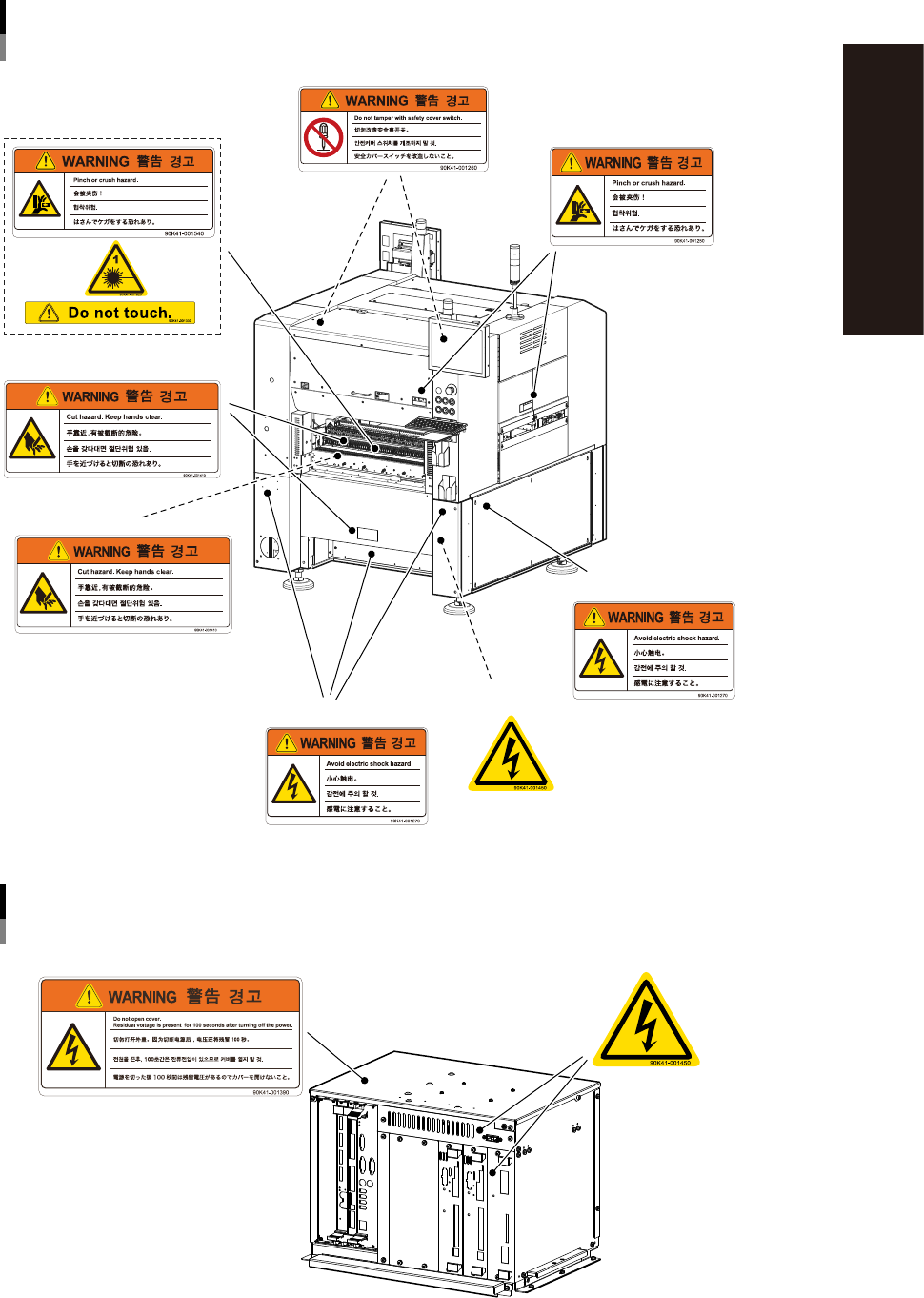

YS12F Rear side
■ Open/close cover inner side
■ Open/close cove,
Conveyor opening
■ Lower panels
■ Panel inner side
■ Side
■ Cutter section
■ Feeder setup section
■ Cutter inner side
93202-L7-20
Warning/caution labels
Controller
■ Top of controller
■ Controller front panel
93203-L6-20
xxxii
Safety instructions
n
Label positions
Warning/caution labels
ATS15 (YS12F)
■ Door opening section
■ Open/close cover inner side
■ Open/close cover,
Conveyor opening
■ Lower panels
■ Open/close cover inner side
■ Panel inner side
93203-L7-20
