Maintenance
2. Preparing for maintenance tasks
Works described in this section focus mainly on replacing parts (consumable parts) that might cause a
gradual loss of machine functions during use. This section also describes how the user can easily replace
parts when a breakdown occurs.
2.1 Consumable parts and replaceable parts (for repairs)
2.1.1 Consumable parts
The term "consumable parts" in this manual indicates parts subject to continual wear during use causing
gradual loss of functions. The following parts are classified in this manual as consumable parts and should be
replaced as needed during maintenance.
n

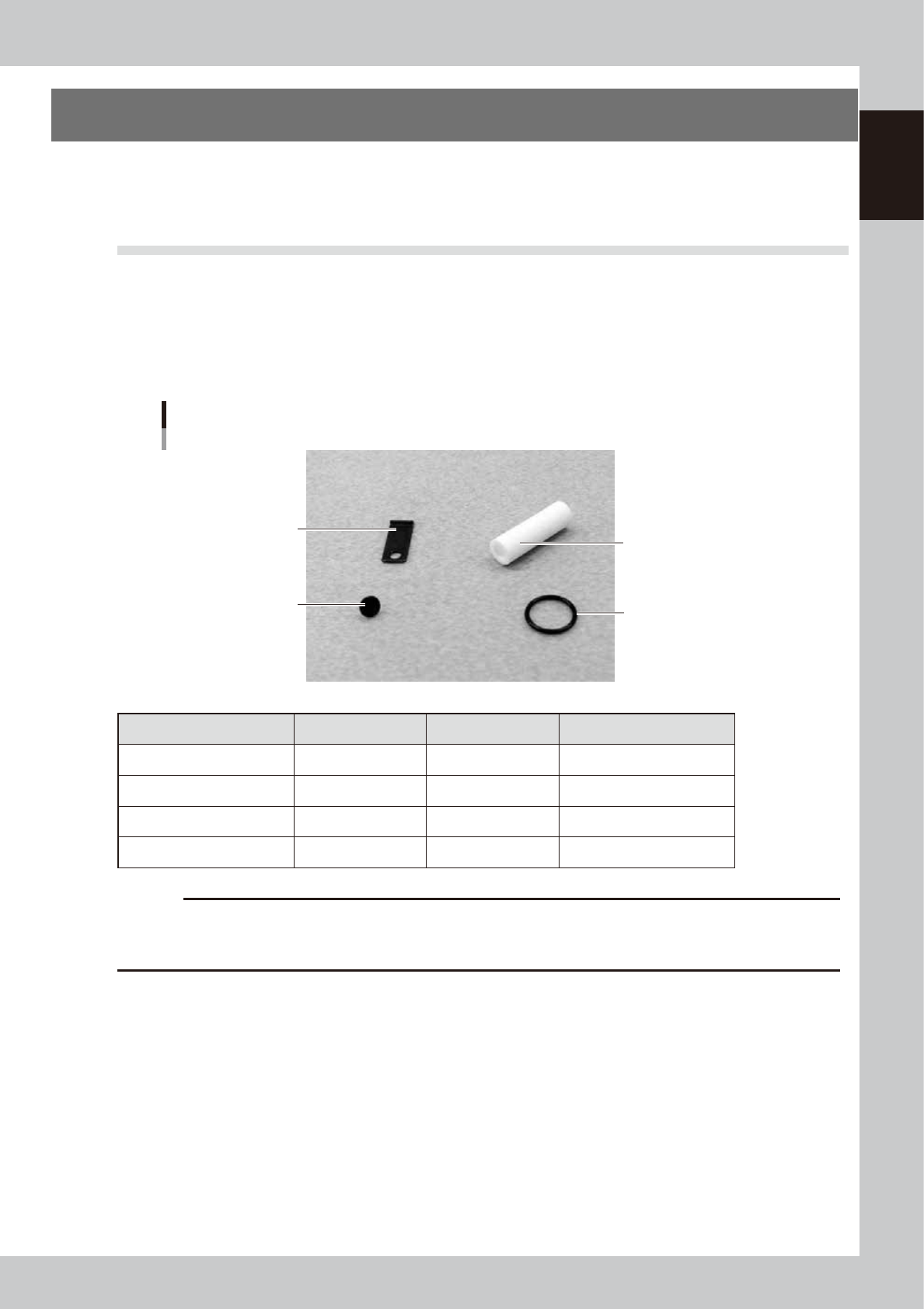

Consumable parts (Parts supplied with YS12P and YS12F)
Consumable parts
Parts supplied with machine
Nozzle leaf spring
Ejector O-ring
Ejector filter
Nozzle leaf mounting screw
53100-M7-00
Product Name Parts List Designation Parts No. Note
Nozzle leaf spring LEAF SPRING KG7-M7137-A0X
Nozzle leaf spring mounting screw
SCREW, PAN HEAD 90990-08J016 M2xL2.5
Ejector filter FILTER K46-M8527-C0X
Ejector O-ring O-RING 90990-17J010
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-4
1
Maintenance
n
Consumable parts (Optional purchase parts)
Consumable parts
Optional purchase parts
Conveyor belt
Air filter Oil mist filter
Filter element Mist filter element
53101-M7-20
Product Name Parts List Designation Parts No. Note
Conveyor belt (standard) BELT 1, CONVEYOR KHY-M9129-000 L=2692mm
Conveyor belt (extended) BELT 1, CONVEYOR KHY-M9129-100 L=3111mm
FILTER ELEMENT FILTER ELEMENT KG7-M8501-40X For air filter
MIST FILTER ELEMENT MIST FILTER ELEMENT KG7-M8502-40X For oil mist filter
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-5
1
Maintenance
2.1.2 Nozzles
n
Consumable parts (optional parts)
Name Part name Part No. Note
Standard 30X
Group nozzles
NOZZLE 301A ASSY. KHN-M7710-A4X 0603 to 1005 size components
NOZZLE 302A ASSY. KHN-M7720-A3X 1608 to 3216 size components
Narrow-pitch
31X Group
nozzles
NOZZLE 311A ASSY. KHY-M7710-A4X 0603 dedicated
NOZZLE 312A ASSY. KHY-M7720-A3X 1005 to 1608 size components
NOZZLE 313A ASSY. KHY-M7730-A2X 2012 to 3225 size components
Standard &
narrow-pitch
Common
nozzles
NOZZLE 303A/314A AS. KHY-M7740-A0X
4532 to 7343 size components, SOP
NOZZLE 304A/315A AS. KHY-M7750-A0X QFP, PLCC, etc.
NOZZLE 307A/318A AS. KHY-M7780-A0X
YS12F only.
32mm Sq. to 45mm Sq.
components
Gripper nozzle
(option)
NOZZLE 30ALB
NOZZLE 30ALD etc.
-
YS12F only.
Select gripper nozzle according to
component shape.
n
NOTE
The gripper nozzle is used when picking up and mounting the special-shaped component. Select and/or
manufacuture the gripper nozzle by special order according to the component shape.
