3-1
3
Periodic maintenance items
1. Weekly inspection
This section mainly describes weekly inspection and cleaning.
1.1 Inspecting and cleaning the nozzles
A spring-action or defective nozzle leaf spring may cause pickup errors. To prevent this, inspect each nozzle.
1.1.1 Inspecting and cleaning the slide section
n
Checking the spring-action
Check the spring-action of the nozzles. Press on a nozzle. If it returns normally, there is no problem. However,
if the return action is poor (sluggish), pickup errors and recognition errors will occur.
c
CAUTION
When checking by pressing the nozzle tip, do not apply excessive force. The condition is normal if the tip returns to its
original position after being pressed in approx. 1 mm.

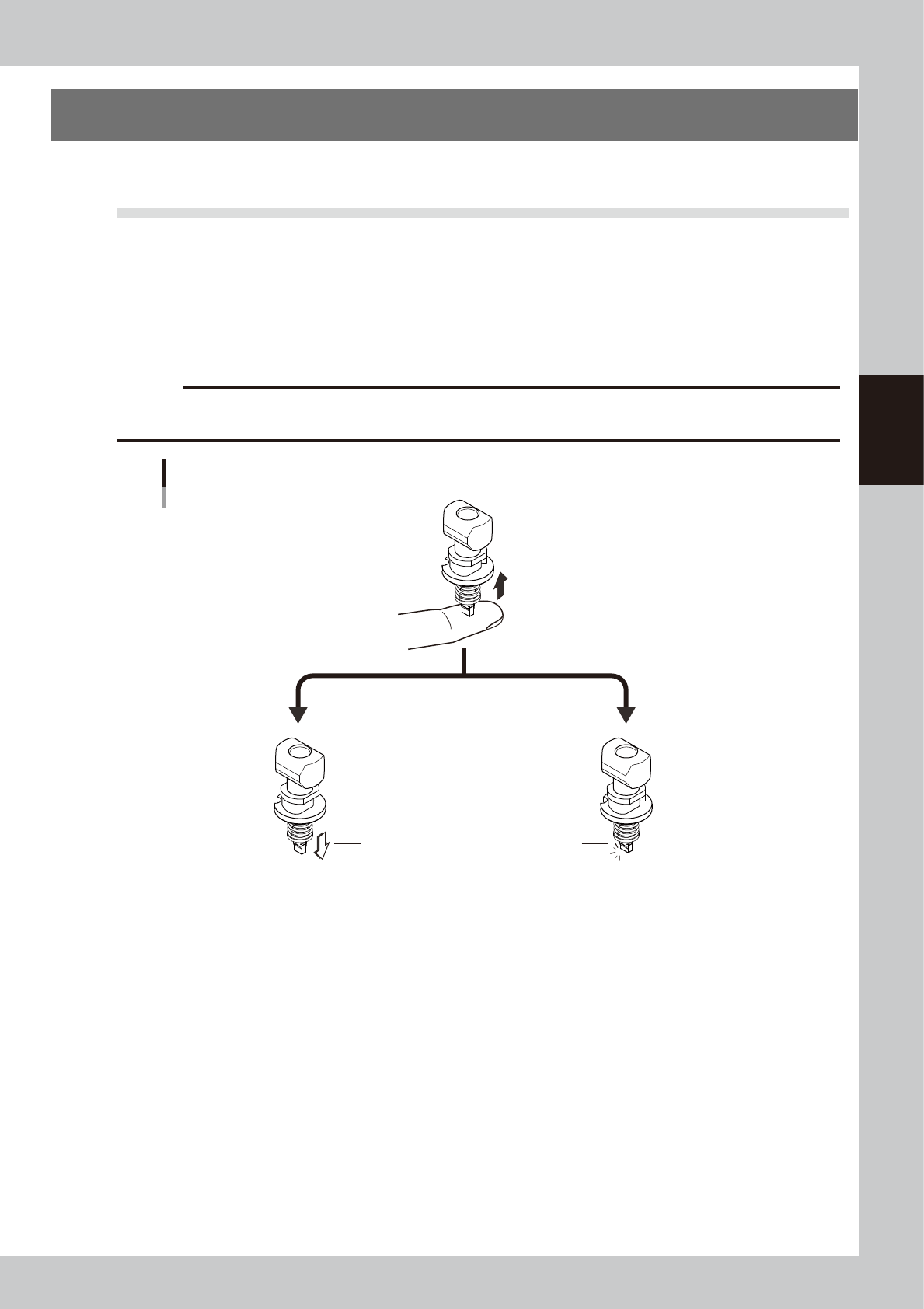

Checking the nozzle spring action
Press on the nozzle tip with your hand.
OK
No good
Returns to original
position
Returns sluggishly
or does not return.
53300-L6-00
3-2
3
Periodic maintenance items
n
Cleaning the slide section
e
1
Remove nozzles.
1. Press the emergency stop button and
then open the machine safety cover.
2. Remove nozzles from the head. If the
machine is equipped with the nozzle
station, press the [Nozzle Stn Shutter]
button to open the nozzle station shutter
and remove nozzles.
2
Clean the slide section.
Apply IPA (isoprophyl alcohol) or ethanol to
the slide section. Push the nozzle tip several
times to repeat the buffing action (spring
action) to clean the slide section. After
cleaning, blow sufficient air to remove IPA or
ethanol.
3
Lubricate the slide section.
Using a precision screwdriver or similar tool
with a pointed tip, apply a small amount of
turbine oil (just enough so that it sinks in) to
the slide section.
53303-L6-00
4
Check the buffing action (spring
action).
Push the nozzle tip several times to repeat
the buffing action and spread turbine oil.
Use a lint-free cleaning cloth to wipe away
excess oil from around the nozzle.
53304-L6-00
5
Remove excess oil remaining in the
nozzle.
Using an air blow tool, blow air for about 5
seconds from the nozzle tip, and for about 5
seconds from the nozzle attachment side.
Repeat this process a few times to remove
excess turbine oil remaining in the nozzle.
n
NOTE
A thin coat of oil is enough to lubricate the slide section.
6
Check that the oil was removed.
Blow air through the nozzle again while
placing commercially-available oil blotting
paper over the opposite end of the nozzle,
and check for residual oil in the nozzle.
53302-L6-00
n
NOTE
Performing step 5 is usually sufficient to remove oil
remaining in the nozzle. However, if oil still remains,
blow air through the nozzle once agai.
7
Reinstall the nozzle.
After checking one more time no oil
remaining in the nozzle, return the nozzle to
the head.
n
NOTE
If removed nozzles from the nozzle station, return them
to the nozzle storage positions.

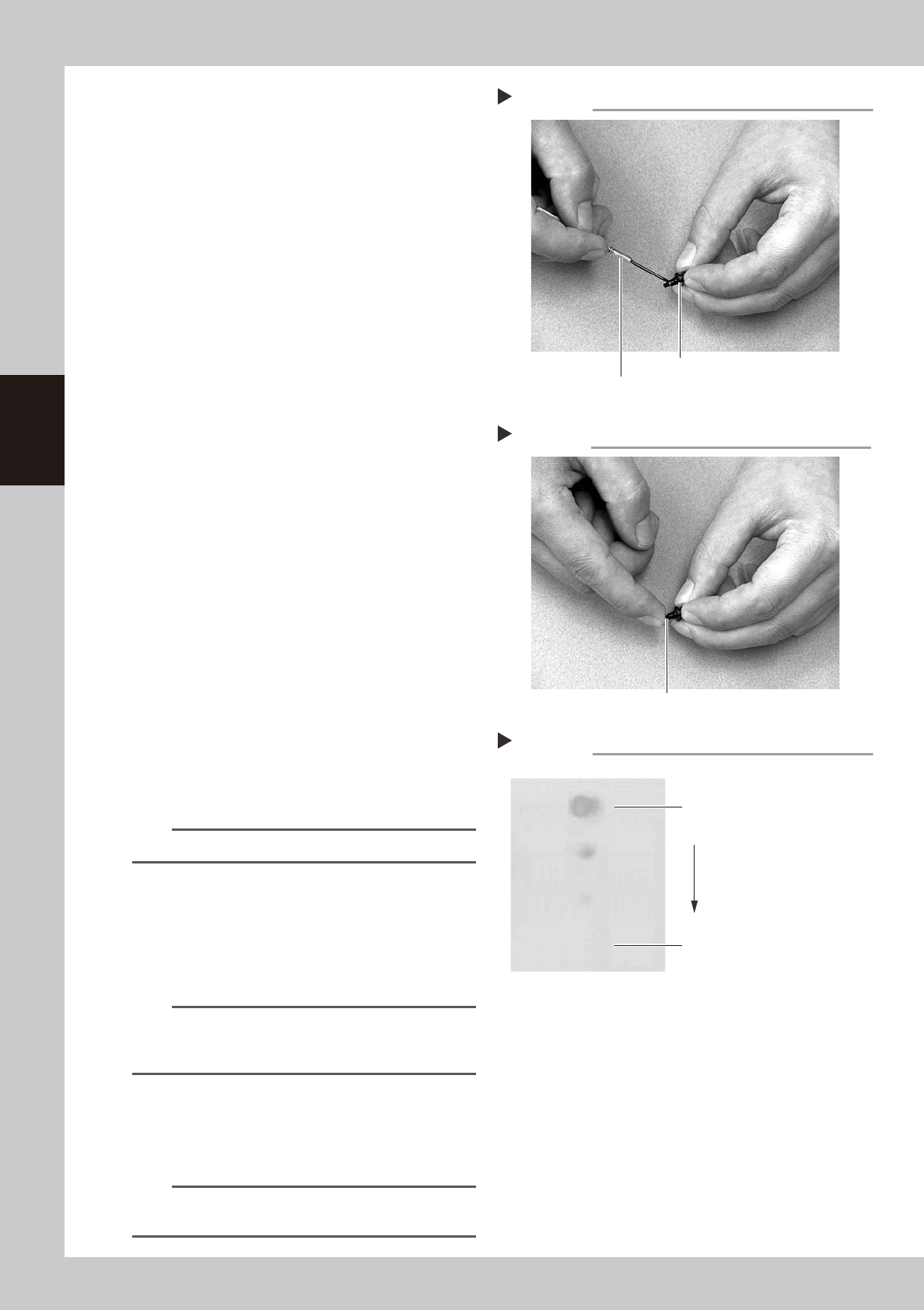

Lubricating the slide section
Step 3
Nozzle
Precision screwdriver
(with a small amount of turbine oil applied)
Checking the spring action
Step 4
Spring action at nozzle tip
Step 6
Checking for residual oil
Oil blotting paper
Oil will appear after blowing air (first
time) for about 5 seconds from the
nozzle tip.
Repeat the air blow for about 5
seconds each from the nozzle tip
and from the attachment side.
This task is finished when oil no
longer appears.
