chapt er 1 This Chapter describes the work environment and working tools for the maintenance of the machine. Conditions fo r Main t e nanc e Nex t Generation, Multi- Functi onal Placer DE CAN S1 M ain ten anc e Ha nd boo…
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-2
Common Working Procedure before Maintenance
Conditions for Maintenance

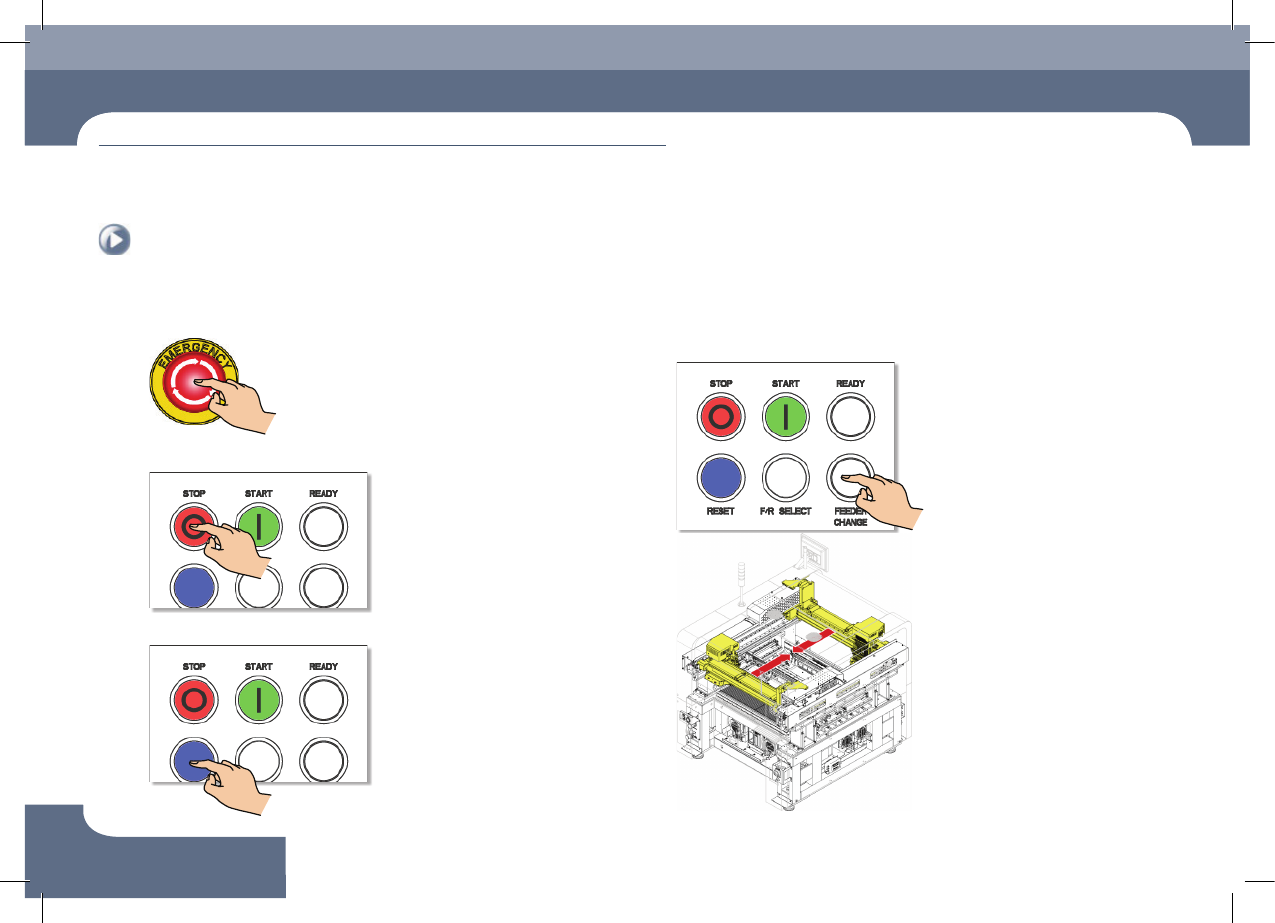

2. How to perform emergency stop
Step 1.
Press the 'EMG' switch
Step 2.
Press the 'STOP' button
Step 3.
Press the 'RESET' button
3. Move the front and rear X frames to the center
of the machine
Step 1.
Press the 'FEEDER CHANGE' switch
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-3
Common Working Procedure before Maintenance

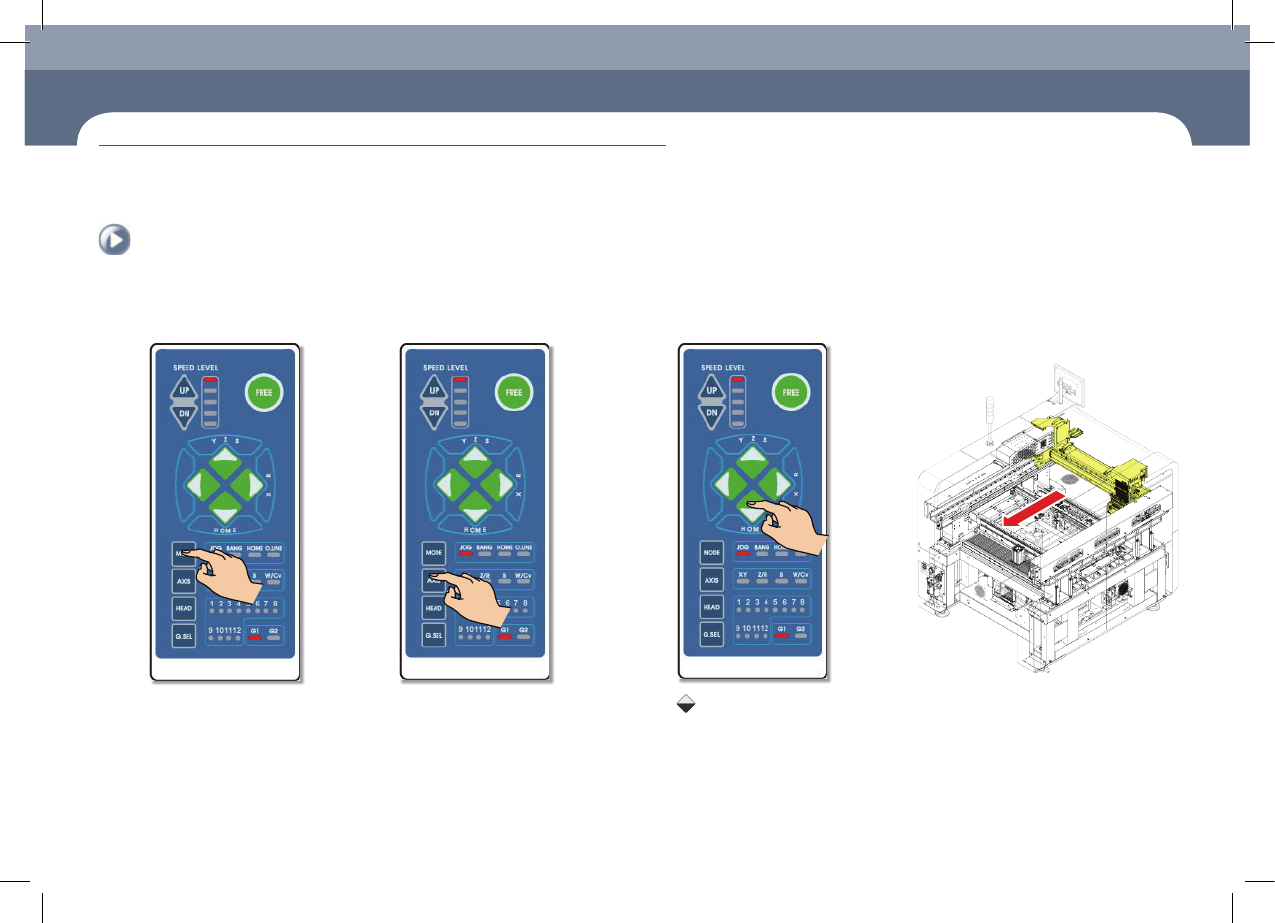

1. Press the 'MODE' button
Select JOG
2. Press the 'AXIS' button
Select XY
3. Press the 'Direction' button
Press the Key
Keep pressing the key until
the front X-frame move to
the desired position.
4. Forward movement of the
X-fram e
4. Forward movement of the X-frame
chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
1-4
Common Working Procedure before Maintenance
Conditions for Maintenance
1. Press the 'MODE' button
Select JOG
3. Press the 'Direction' button
Press the Key
Keep pressing the key until
the front X-frame move to
the desired position.
2. Press the 'AXIS' button
Select XY
5. Backward movement of the X-frame
4. Backward movement of
the X-fram e
