chapt er 2 Inspe ction It ems fo r Main t e nanc e Nex t Generation, Multi- Functi onal Placer DE CAN S1 M ain ten anc e Ha nd boo k 2-4 W eekly Inspections Inspection It ems for Maint enanc e
chapter 2
Inspection Items for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
2-3
Weekly Inspections
Check-up List
Replacement
Time
Reference
Time
required
Period No Inspection Item Measures Tools
Weekly
W-1 Head Fly Camera Lens Clean Wrench, Air spray, cotton swab 5 Minutes
W-2 Head Mirror Clean Air spray, cloth 5 Minutes
W-3 Solenoid Valve Inspect and replace 2 years
Contact C/S for
replacement
20 Minutes
W-4 Head Vacuum Filter Inspect and replace 6 months
Contact C/S for
replacement
30 Minutes
Setting the replacement period for parts
ㆍ Based on the regulated use environment.
ㆍ If the use environment is poor, the intervals for part inspection and replacement can be shortened.
ㆍ In the above table, C/S means our designated C/S company (STS) or our overseas local agents.
Weekly Inspections
chapter 2
Inspection Items for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
2-4

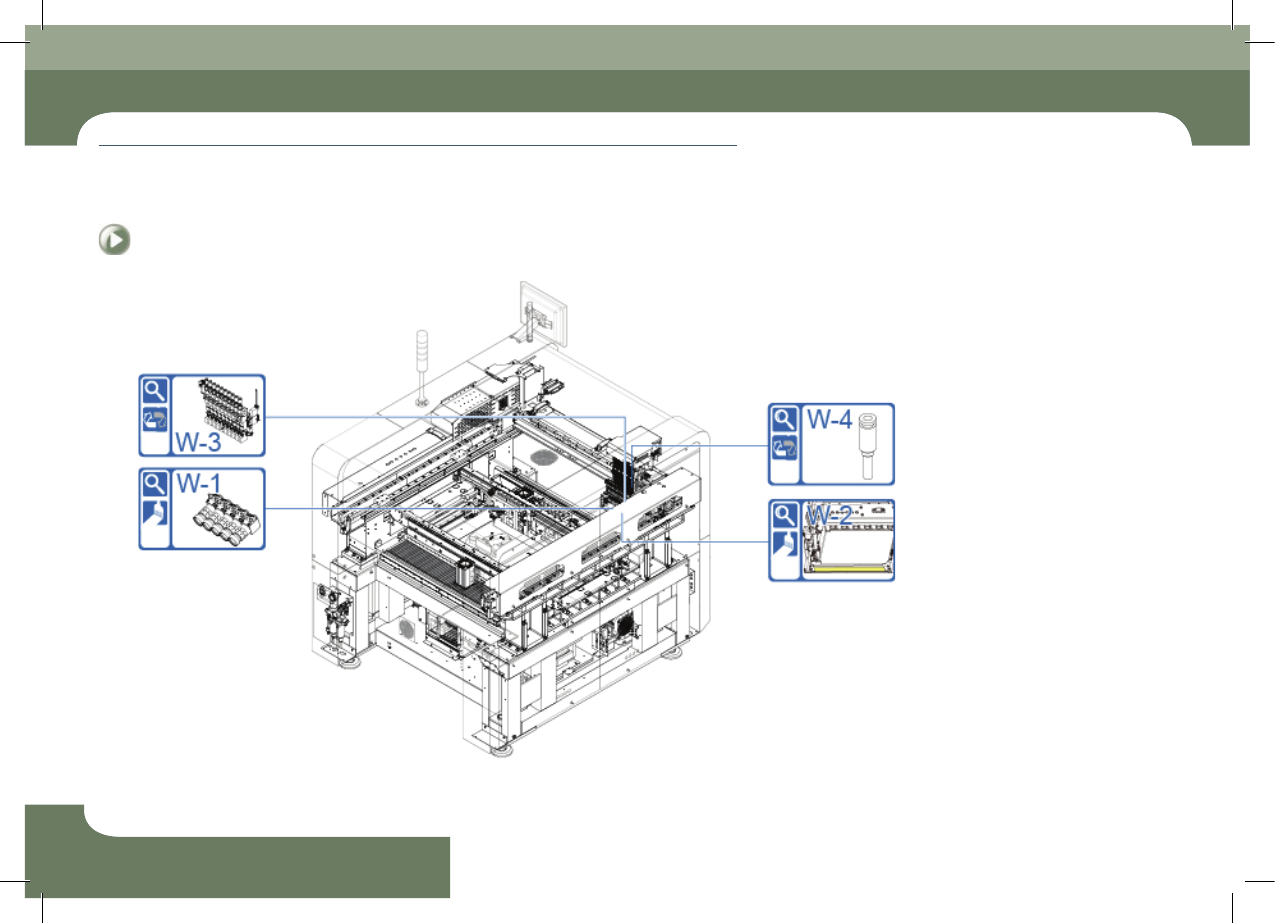

Weekly Inspections
Inspection Items for Maintenance
chapter 2
Inspection Items for Maintenance
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
2-5
Monthly Inspections (1/2)
Check-up List
Replacement
Time
Reference
Time
required
Period No Inspection Item Measures Tools
Monthly
M-1 Head Spindle Clean Air gun, cloth 30 Minutes
M-2 Conveyor Sensor / Fiducial Mark Inspect and clean Cotton swab, cloth 10 Minutes
M-3 Right Cover Cooling Fan Inspect and Replace
Flathead Screw driver, vacuum
cleaner
10 Minutes
M-4 Front, Rear Cover Cooling Fan Inspect and Replace Vacuum cleaner 6months 15 Minutes
Setting the replacement period for parts
ㆍ Based on the regulated use environment.
ㆍ If the use environment is poor, the intervals for part inspection and replacement can be shortened.
ㆍ In the above table, C/S means our designated C/S company (STS) or our overseas local agents.
Monthly Inspections (1/2)
