DECAN S1 Maintenance Handbook
3-16
chapter 3
Daily Inspection
Next Generation, Multi-Functional Placer
Checking and Cleaning and Fix Camera Lens
Daily Inspection
Remove foreign material on the camera lens to prevent part recognition error.
Tool for Maintenance
Ultra fine fiber cloth, alcohol, Wrench
Measures

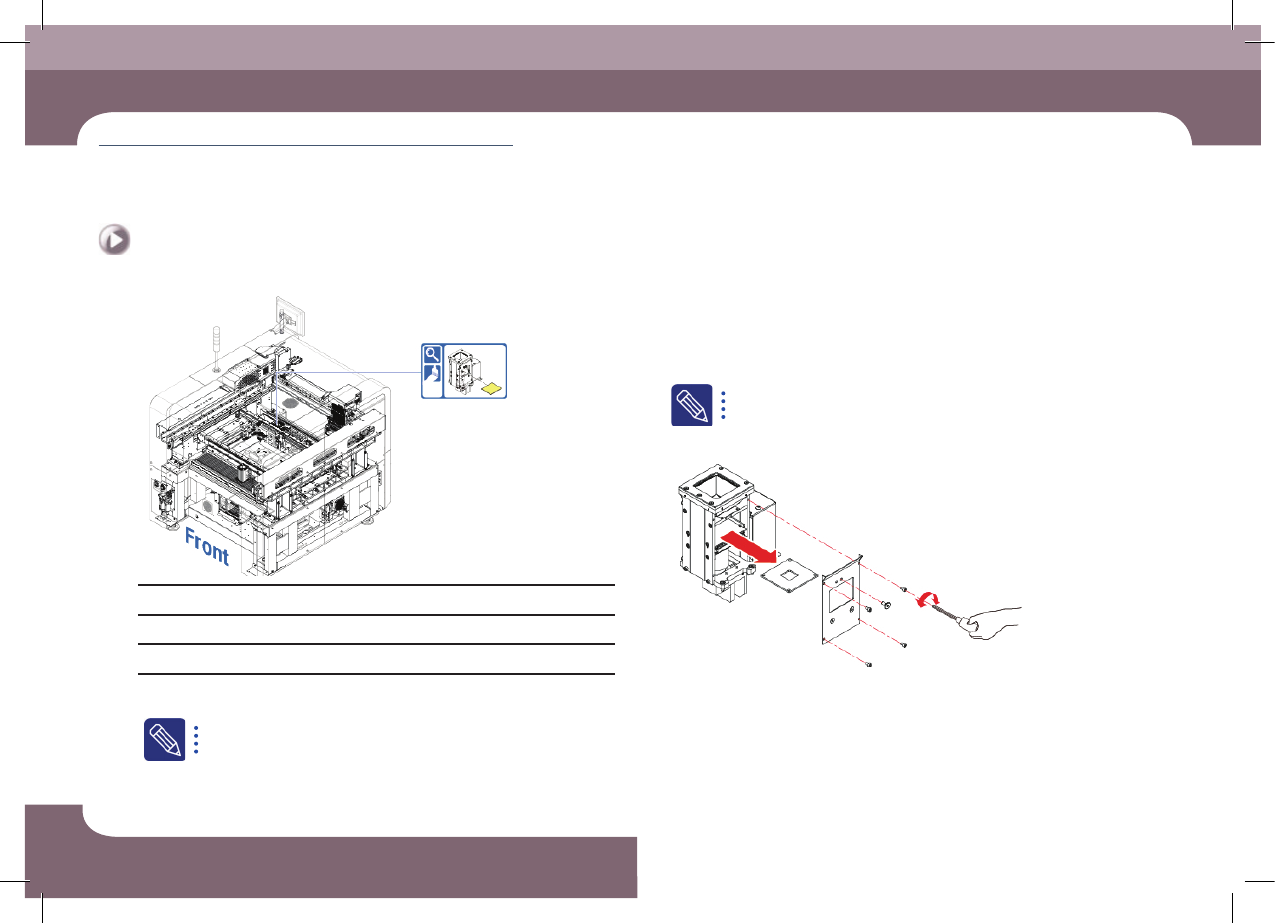

Step 1.
Move the X-frame to the rear.
For more details, refer to "Backward movement of the X-frame" on
page 1-4
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.
Separate cover glass
Checking and Cleaning and Fix Camera Lens
(Time required: 10min / No. D-7)
DECAN S1 Maintenance Handbook
3-17
chapter 3
Daily Inspection
Next Generation, Multi-Functional Placer
Checking and Cleaning and Fix Camera Lens
Step 4.

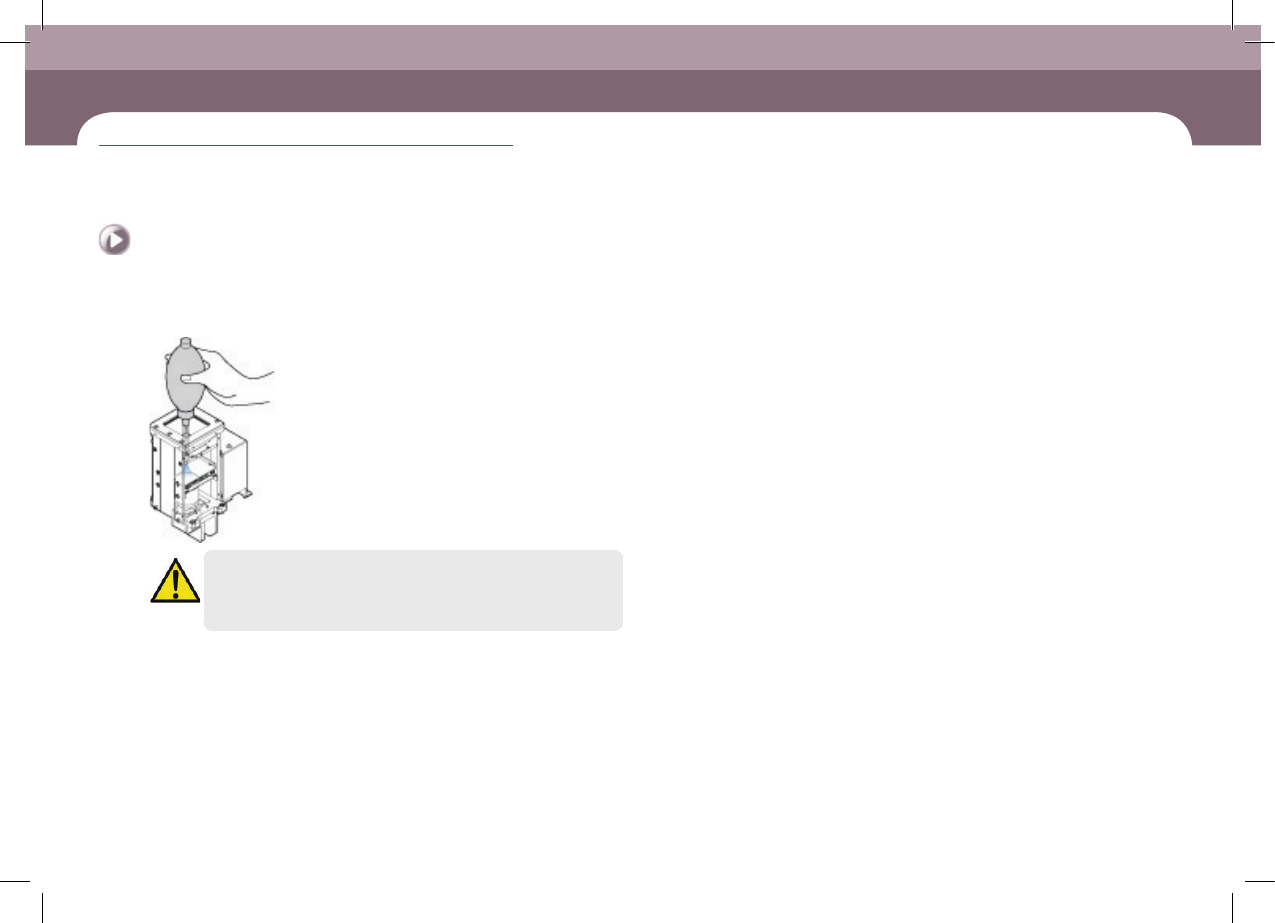

Clean the lens using an air spray
Caution
The cover glass is fragile. Take care.
MEMO
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
3-18
Daily Inspection
