Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-9
Cleaning and Lubricating Head Spindle, Mirror CAM
Tool for Maintenance
Ultra-fine fiber cloth, Flat Brush, syringe, GREASE GADUS S2 V220-2
Measures
Step 1.
Move the X Frame to front by referring to "Forward
movement of the X-frame" on page 1-3.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.

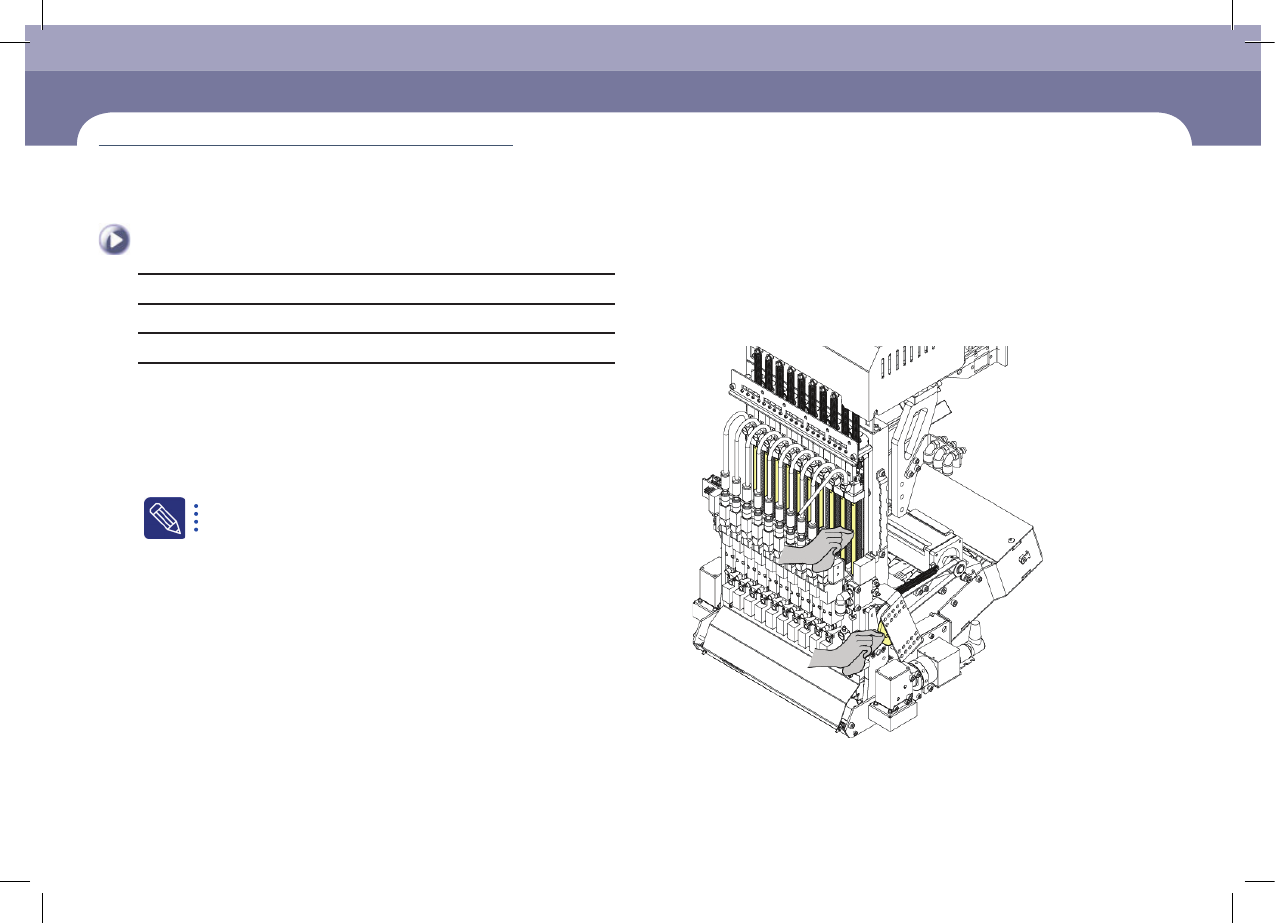

Clean the LM guide rail, ball screw and mirror CAM
Cleaning and Lubricating Head Spindle, Mirror CAM
(Time required: 30min / No. M-7)
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-10
Cleaning and Lubricating Head Spindle, Mirror CAM
Monthly Inspection
Step 4.

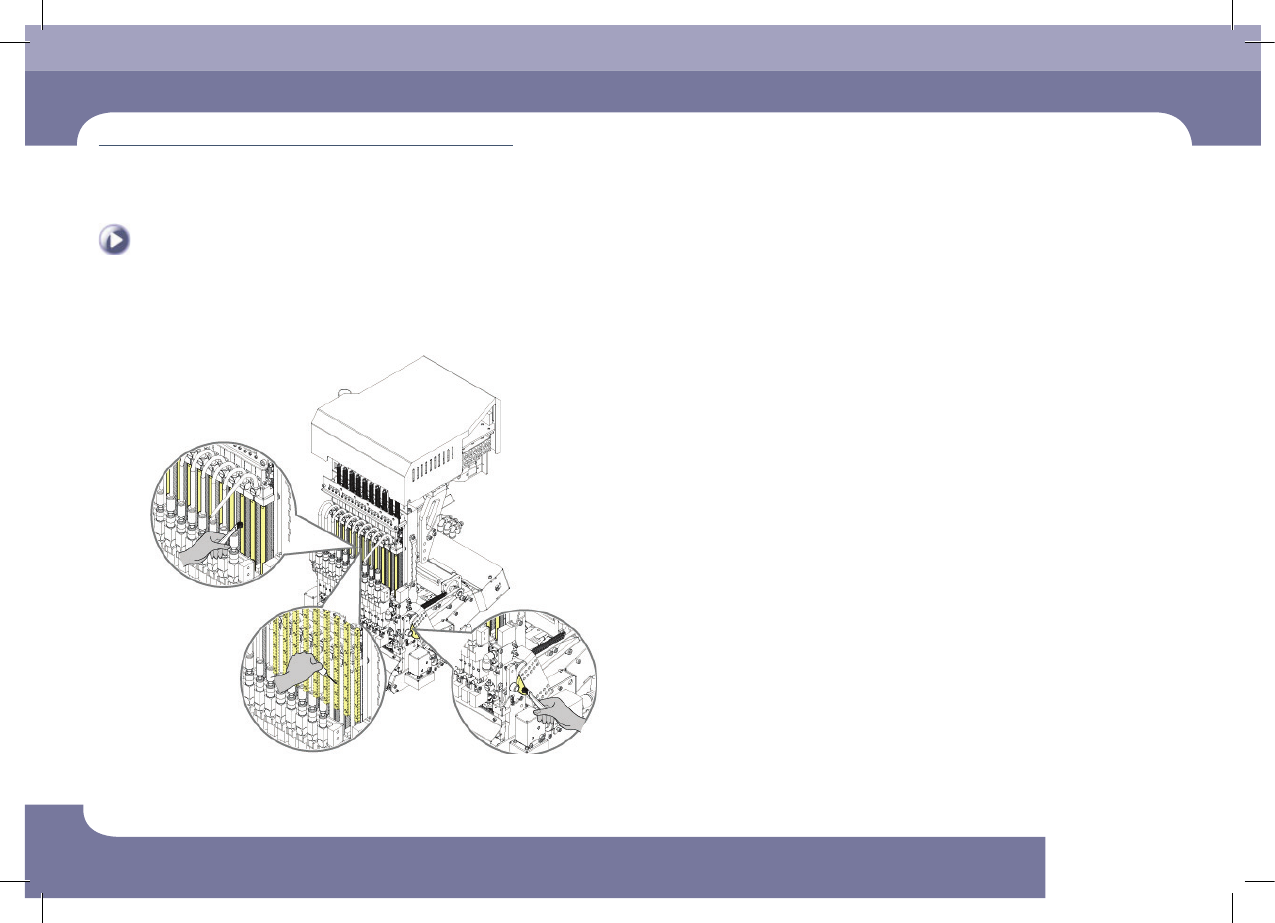

Apply grease to the LM guide rail using a syringe and
apply grease to the ball spline and the Mirror CAM.
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-11
Checking and Cleaning Head Beam Splitter
Tool for Maintenance
Air Spry, (+) driver
Measures
Step 1.
Move the X Frame to front by referring to "Forward
movement of the X-frame" on page 1-3.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.

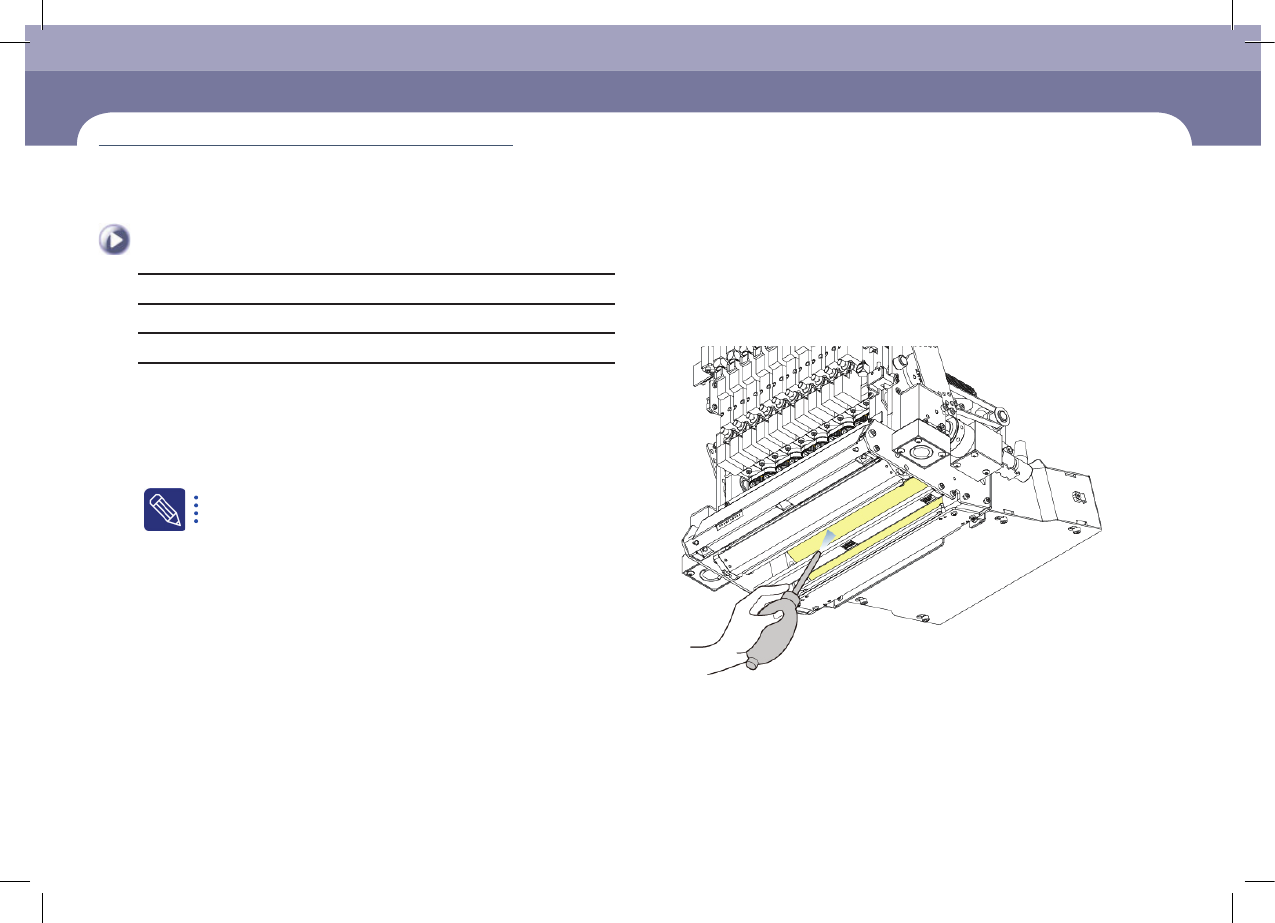

Clean the beam splitter below the head using an air spray.
Step 4.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
Checking and Cleaning Head Beam Splitter
(Time required: 20min / No. M-8)
