Mon thly Inspe ction chapt er 5 Nex t Generation, Multi- Functi onal Placer DE CAN S1 M ain ten anc e Ha nd boo k 5 -2 0 Cleaning and apply grease and lubricating the conveyor lead screw , LM guide Monthly Inspe ction It…
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-19
Cleaning and Lubricating Y Frame LM Guide
Step 5.

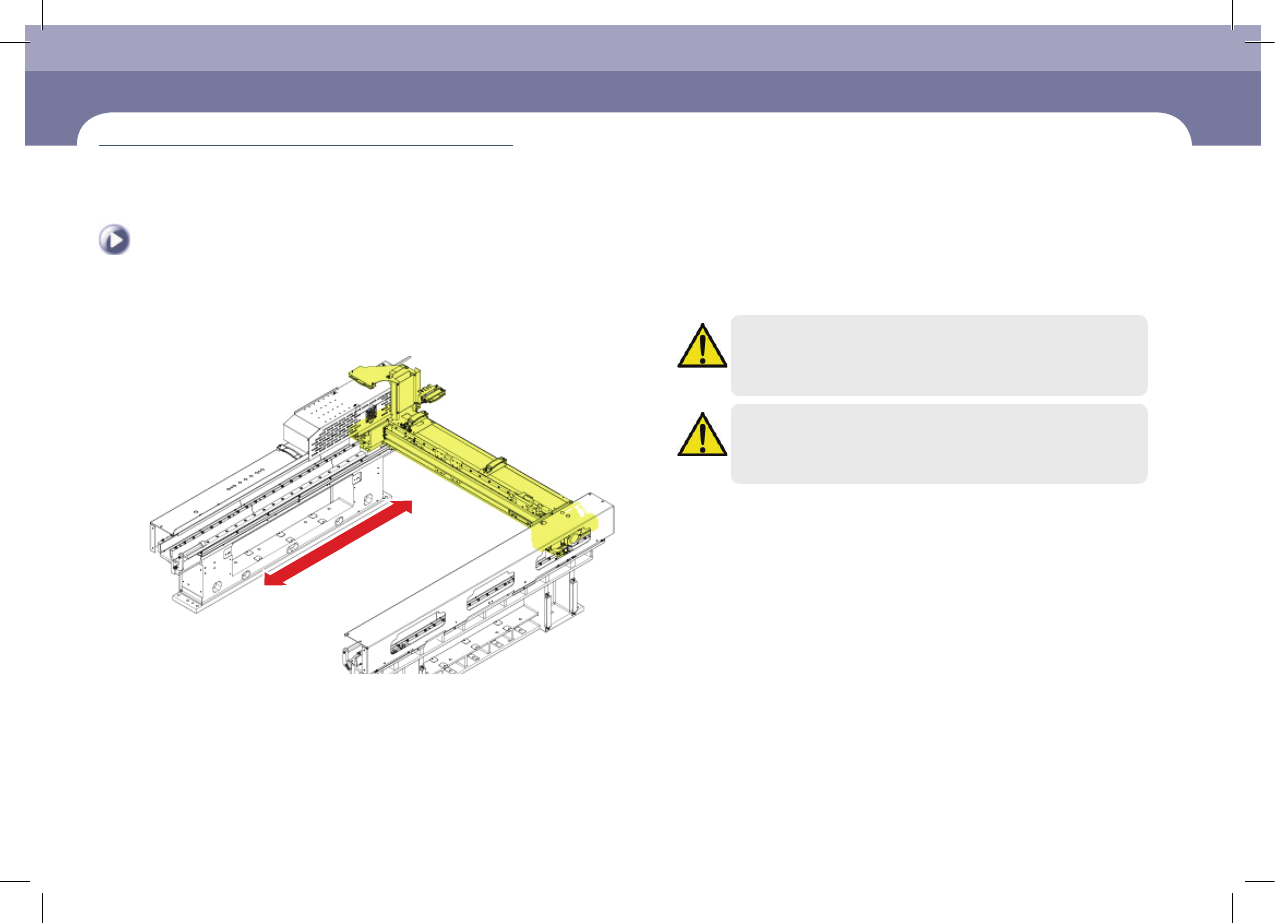

Move the front and rear X frames back and forth three
times.
Caution
The designated grease must be applied using the designated
lubricator in the designated manner. Other lubricating methods are
unacceptable.
Caution
If the machine's operating environment is harsh, check its lubrication
status frequently.
Step 6.
Release the emergency stop as described in "Releasing
'Emergency Stop' mode" on page 1-6 and perform the
operation again.
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-20
Cleaning and apply grease and lubricating the conveyor lead screw, LM guide
Monthly Inspection
It is possible to prevent deformation of the corresponding section by friction or an
error due to increased temperature.
Tool for Maintenance
Ultra-fine fiber cloth, Flat Brush, Lubricator, GREASE GADUS S2 V220-2
Measures
Step 1.
Move the X Frame to rear by referring to "Backward
movement of the X-frame" on page 1-4
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to "How to perform emergency stop" on page
1-2.
Step 3.

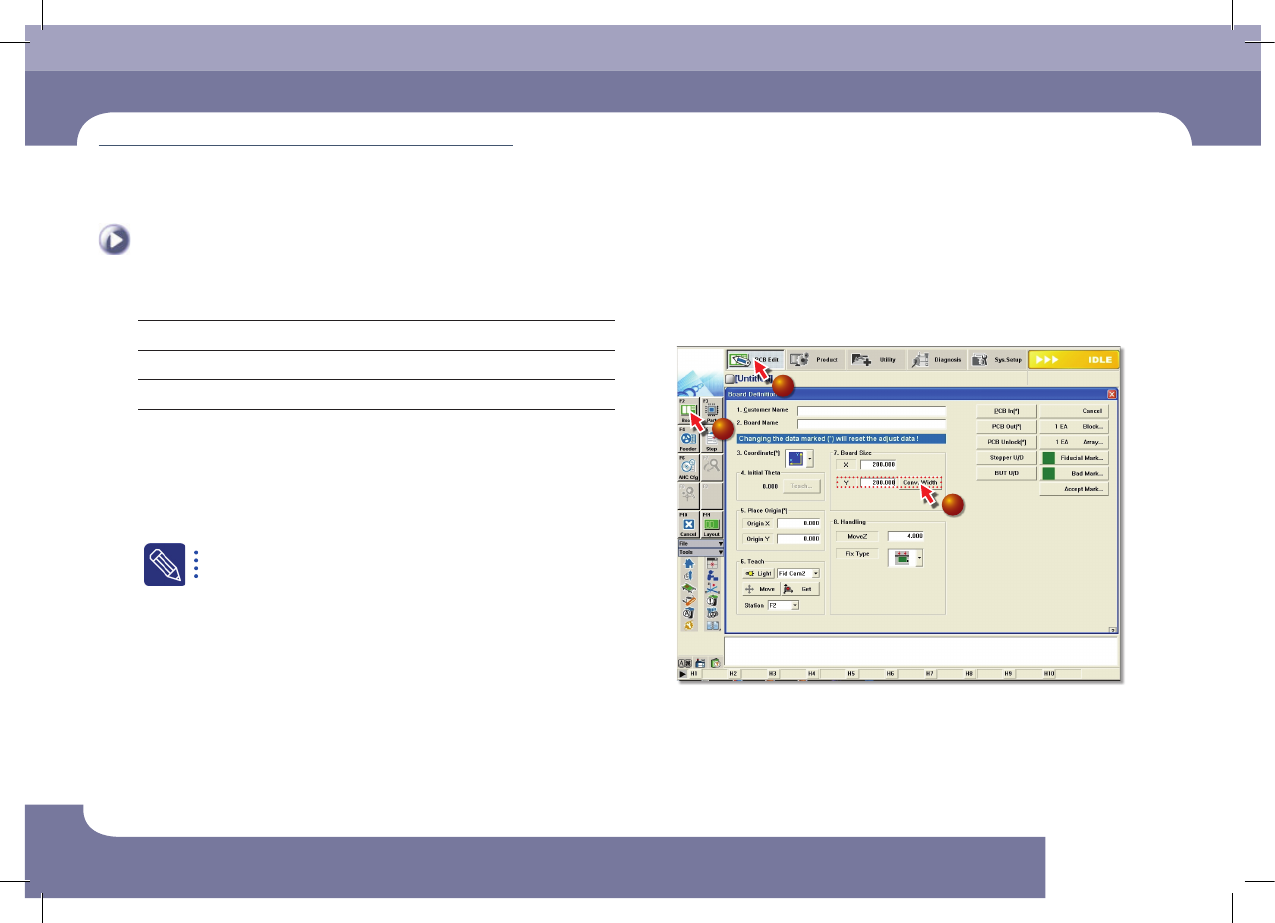

Adjust the conveyor width
1
2
3
①Select the 'PCB Edit' Menu
②Select the 'Borad' Submenu
③Enter 200 (maximum size in the Y direction) in the <7. Board Size> group and
click the <Conv.Width> Button
Cleaning and apply grease and lubricating the
conveyor lead screw, LM guide
(Time required: 30min /
No. M-11)
Monthly Inspection
chapter 5
Next Generation, Multi-Functional Placer
DECAN S1 Maintenance Handbook
5-21
Cleaning and apply grease and lubricating the conveyor lead screw, LM guide
Step 4.

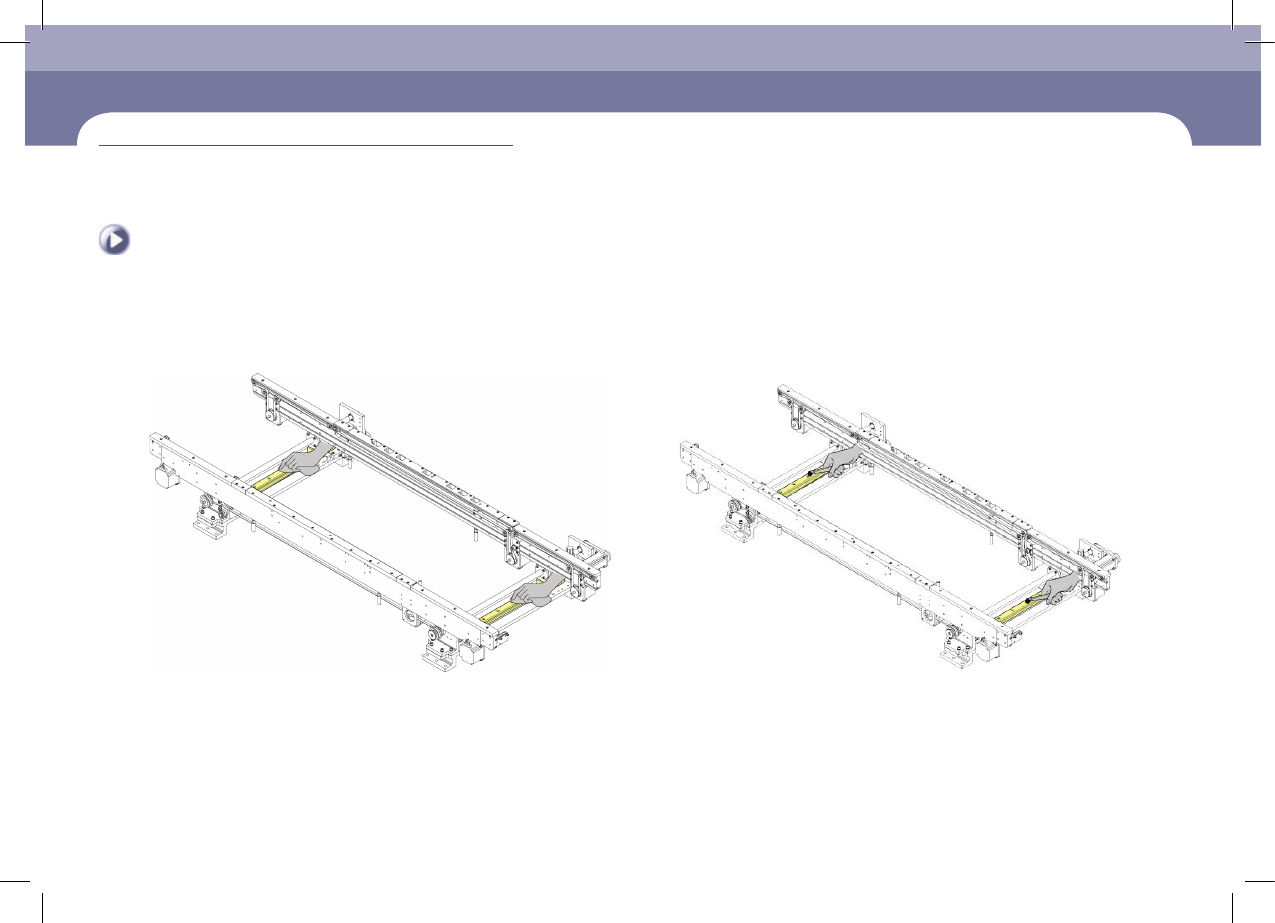

Using an ultra-fine fiber cloth, remove any dust or foreign
materials from the LM guide and lead screw of the work
station, exit station and entry station.
Step 5.
Using a flat brush, apply grease to the LM guide and
lead screw of the work station, exit station and entry
station.
