PA G E 9 YV100XTg (KGC) Con fi dential & Proprietary KGC-000-CN5 Operation panel

100%1 / 30
PAGE
8
YV100XTg (KGC)
Confi dential & Proprietary
KGC-000-CN5

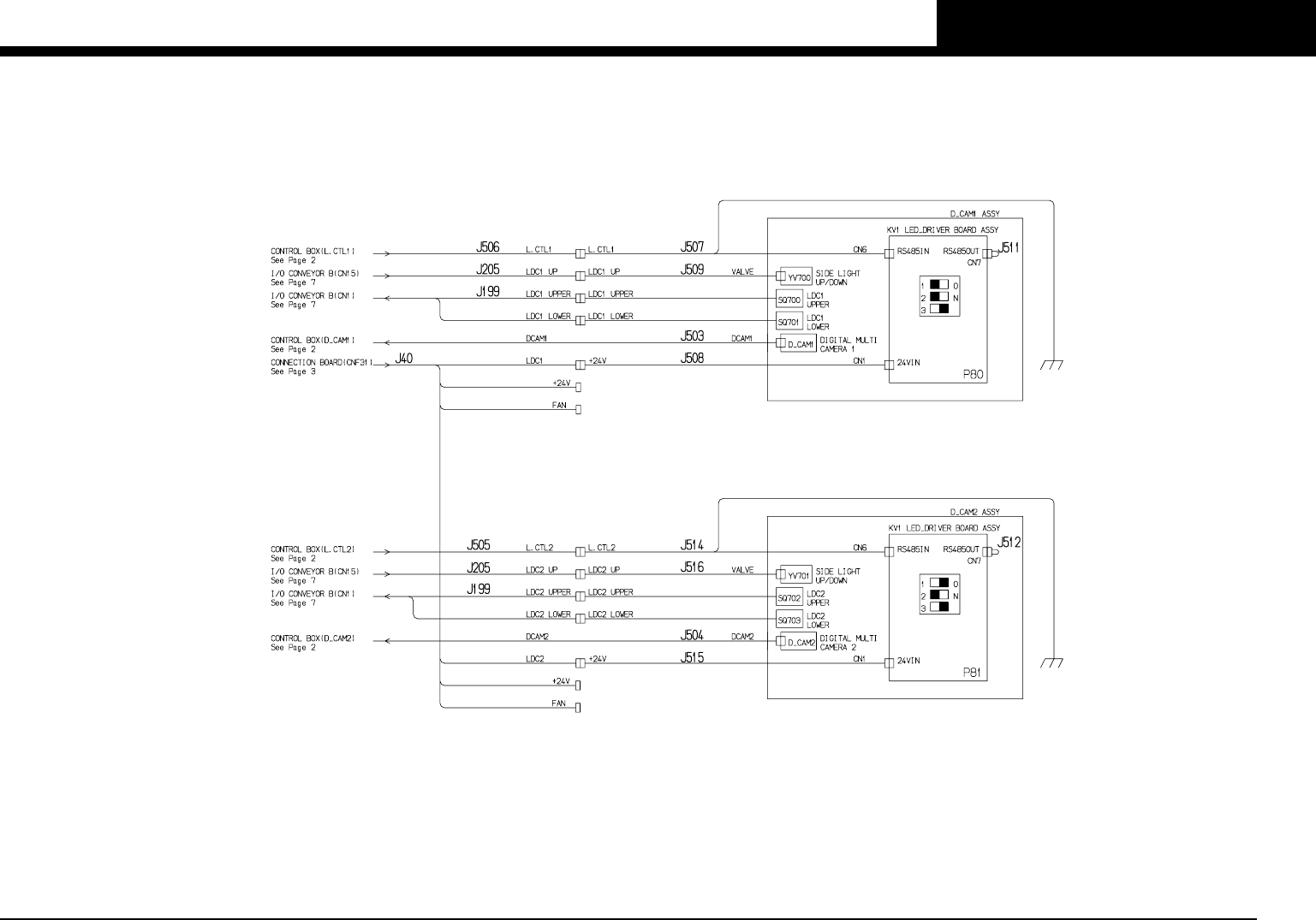

Camera unit
PAGE
9
YV100XTg (KGC)
Confi dential & Proprietary
KGC-000-CN5

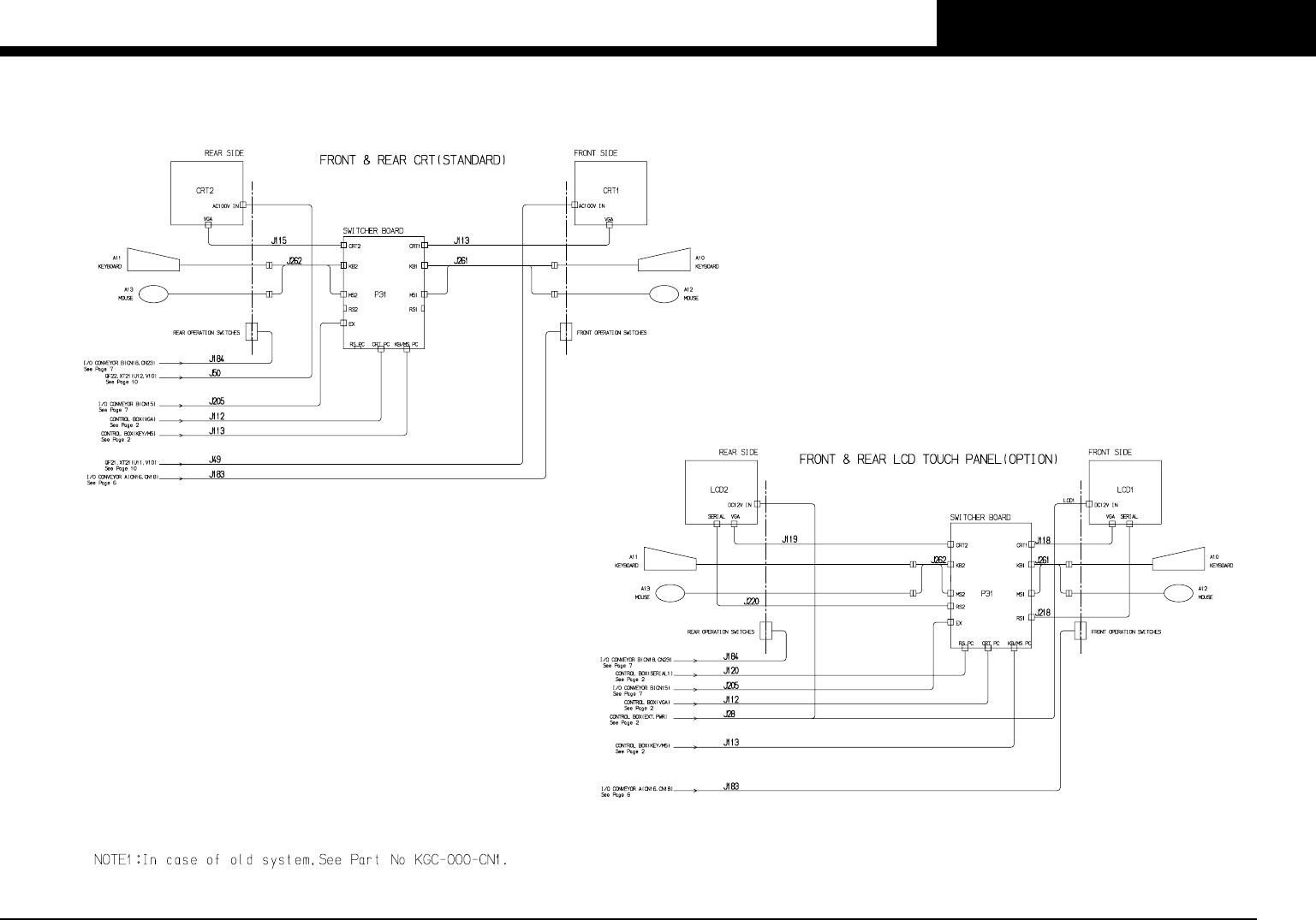

Operation panel
PAGE
10
YV100XTg (KGC)
Confi dential & Proprietary
KGC-000-CN5

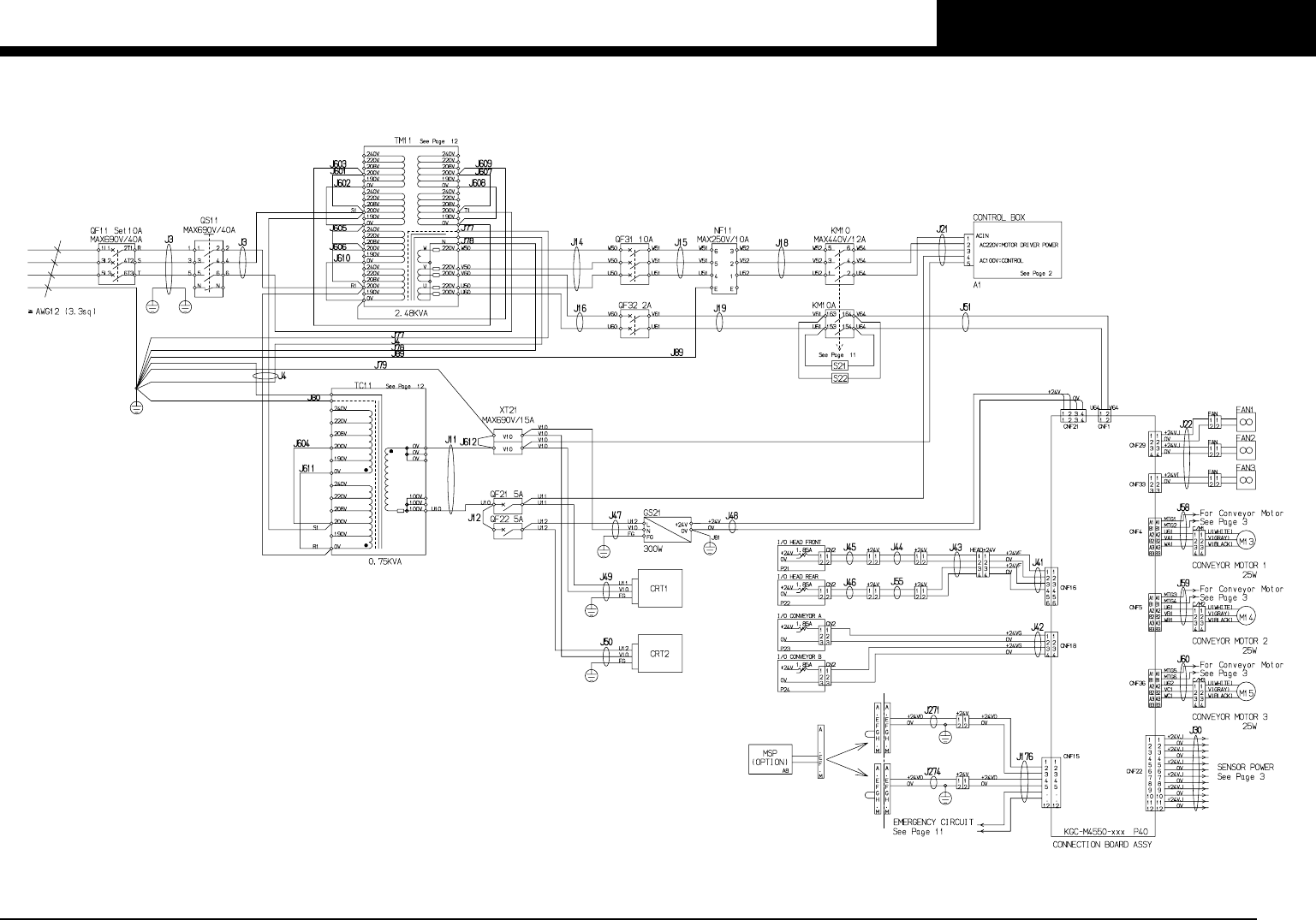

Power circuit
