Maint enance ■ Add itional F eatures - 96 - Data I/O ■ 096 - 0465 - 00 1C Note: Speci f ic it ems ar e noted at each individual procedure. G ENERA LL Y R EQUIRED I TEMS • Len s cleaning paper (Data I/O PN 57 0041) • Wat …
Additional Features Materials Required for Preventive Maintenance
PSV5000 Owner’s Manual - 95 -
Every
Quarter
Gantry guide rails
(every 100,000
devices or every
three months,
whichever comes
first)
Clean and lubricate quarterly, or sooner if the
gantry becomes noisy.
Page
110
Items to check Every Six Months
6-mos. PNP head
Check; tighten if necessary.
Page
110
Every
6-mos. or
as
needed
depending
on use
Laser Marking
System*
Fume Extractor
Clean the nozzle and extraction tube.
Replace the Pre-Filter.
Replace the main filter twice yearly, or whenever the
Filter System alarm sounds and blinks the red
lamp.
Page
126
Items to check Once a Year
Every year programmers
Run conformance verification test using Data I/O’s
DAB. Or have a Data I/O Service Technician
perform the test. Customers with an APS contract
have some costs of the test covered in the
agreement.
• FlashCORE Programmers: DAB part number
910-2200-003 or higher.
• LumenX Programmers: DAB Kit 910-2211-001A
or higher.
Page
119
Every year Vacuum Generator
silencers PNP head
Check vacuum generator silencers; replace as
necessary.
Page
109
* Denotes optional equipment
Materials Required for Preventive Maintenance
To perform preventive maintenance procedures on the PSV5000 System,
in general you need the following materials.
Maintenance ■ Additional Features
- 96 - Data I/O ■ 096-0465-001C
Note: Specific items are noted at each individual procedure.
GENERALLY REQUIRED ITEMS
• Lens cleaning paper (Data I/O PN 570041)
• Water dampened cloth for cleaning
• Isopropyl alcohol
• Antistatic cleaner
• Dry, compressed air
• Safety goggles
• Disposable protective gloves
• Particle (dust) mask
• SAE and metric hex socket wrenches and hex keys (Allen
Wrenches). Data I/O hex key set PNs: Metric 565-0006-001, and
Standard 565-0007-001
• Screw driver sets, flat and Phillips
• Metric open end wrenches for the probe tips
• Shop vacuum cleaner
• Self-Serve Spares Kit (page 97)
Turning off the Systems
When the PSV5000 System will not be used for several days, or before
performing a service procedure, turn OFF the system.
See Shutting Down the PSV5000 System on page 38.
Self-Service Spares Kit Turning off the Systems
PSV5000 Owner’s Manual - 97 -
Self-Service Spares Kit
The Self-Service Spares Kit, Data I/O part number 952-0508-001 or
higher, can be purchased at any time.

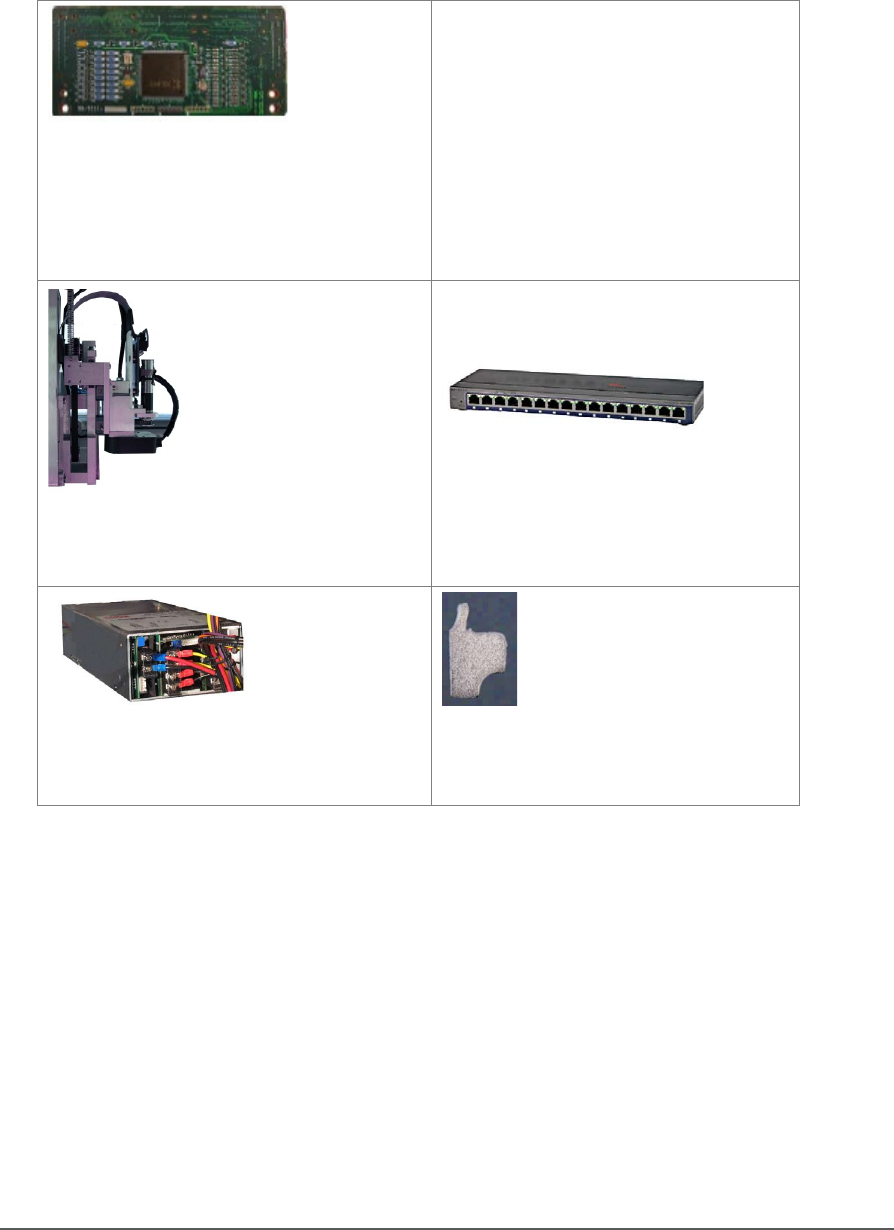

910-2200-00d or higher: Diagnostics
Adapter Board (DAB) only for FC
programmer calibration
(Sales PN: FC-DIAGNOSTICS BOARD)
750-2474-001 or higher: an entire
probe assembly
480-0070-001 or higher: 16-port
V-LAN Ethernet hub
750-2464-001 or higher: programmer
power supply
2940220001 or higher: Pneumatic
Silencer
