Workspace, Head and Gantry Socket Adapters and Actuation
PSV5000 Owner’s Manual - 101 -
WARNING: Electric shock hazard! Opening any access doors while
the power is ON can be dangerous even when steps instruct you to
do so. Use extreme caution and do not touch any electronic
equipment except as directed.
3. Open the access door nearest the target programmer and locate the
in-line air flow control for the up (sockets closed) position. Refer to
Figure 4-3.
Figure 59: Actuator flow controls (arrow). The lower one (that the
screwdriver is at) sets the UP speed. FlashCORE programmers
shown here.
4. Adjust the appropriate flow control 1/2 to 1 revolution clockwise
for slower action, or counter-clockwise for faster action.
5. Close the access door, and clear the door open warning on the
monitor.
6. At the Actuate tab of the Gantry window, click the Actuate Socket
switch to ON while listening and watching the opener. If it is too
fast it will produce a louder noise than optimum when it operates.
If it is too slow it will look slow.
7. Click Actuate Socket OFF.
8. Adjust the flow controls as necessary and repeat the test.
9. Perform the same procedure for the other flow control if necessary.
Maintenance ■ Workspace, Head and Gantry
- 102 - Data I/O ■ 096-0465-001C
Cleaning the PSV5000 Machine
GENERAL MACHINE CLEANING
General cleaning should be performed on a weekly basis. General
cleaning includes, but is not limited to, the following listed item.
WARNING: Vision hazard! Pressurized air or debris blown into
the eyes or skin could cause bodily damage. Always use care and
wear protective eye goggles when cleaning with pressurized air.
1. Remove all dropped devices, debris, and other materials from all
working areas.
2. With air and power OFF, remove all devices and materials that may
have fallen inside the machine.
3. Use dry, compressed air to remove all dust and debris from the
work surface and from under the machine.
4. Dust the safety doors, inside and outside, with an antistatic
cleaner.
5. Wipe the top and side panels to remove grease, fingerprints, and
dust.
6. Dust the top surfaces of the input/output modules.
CLEANING THE CAMERA COVER
Fingerprints and excessive amounts of dust or other residue on the
camera cover will affect the alignment.
If the camera can’t provide a good image, it may be an indicator that the
cover needs cleaning.
Wipe the camera glass in the work surface with a soft cloth and isopropyl
alcohol.
Pick and Place Probe Checking the Probe Tip
PSV5000 Owner’s Manual - 103 -
Pick and Place Probe
The workspace Pick and Place head (PNP head) has one probe which
requires periodic maintenance. The headings below describe
maintenance.
Checking the Probe Tip
A worn or damaged probe tip on the PNP head can cause dropped devices
and placement problems.
1. Check the probe tip for cracks or tears. If necessary, replace with a
probe tip of the same size.
2. Test the probe tip—
2a. At the Setup window, click System > Gantry.
2b. Click the Vacuum switch to ON.
2c. Open the safety door and place a device on the target probe.
2d. If the vacuum does not firmly hold the device, replace the
probe tip with a probe tip of the same size.

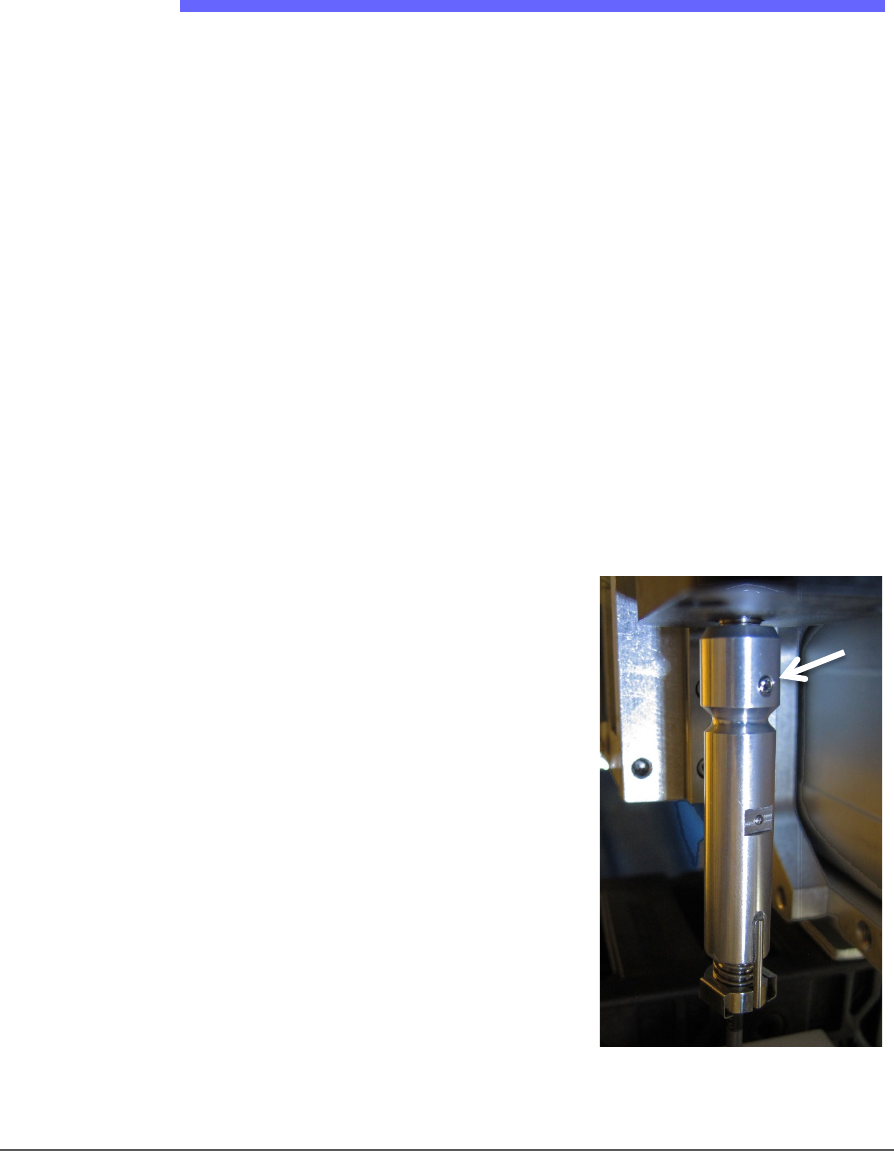

CHECKING THE PROBE
Check that the probe is not loose. Tighten the set screw on the stem if
necessary. If you suspect or hear an air leak:
1. Remove the set screw on the probe
stem.
2. Pull off the probe stem and check
the O-Ring. Replace if necessary.
3. Reassemble.
CLEANING THE PROBE TIP
To clean the Probe tip:
1. Move the PNP head to a convenient
position by clicking one of the
yellow labels on the Gantry
window. The Tool position is
recommended.
2. Open the safety door.
3. Wipe the tip with alcohol wipes
(Data I/O PN 570-0410-001) or a
damp cloth.
