Pick and Place Prob e Inspecting Gantr y Parts PSV5000 O wner ’s M anual - 113 - Figure 68: One of the t wo front g antry rail lube du cts . Note tha t the guard h as already b een remov ed. 10. Lubricate t h e fro n…
Maintenance ■ Pick and Place Probe
- 112 - Data I/O ■ 096-0465-001C

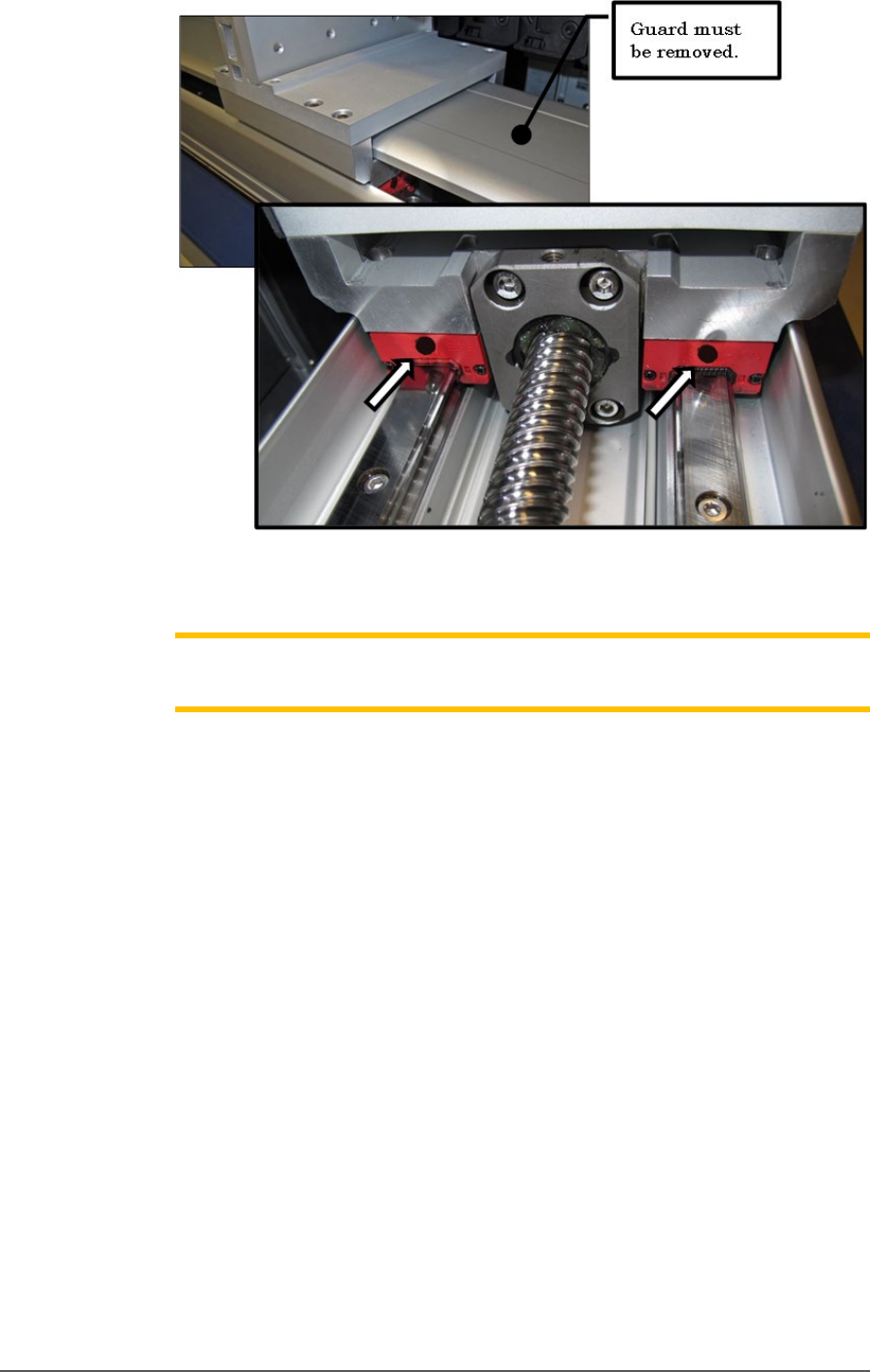

Figure 67: Two of the four grease ducts on the rear linear guide of
the gantry.
Note: Too much grease may cause grease to splatter inside the work
envelope. Do not over-apply the grease.
9. Lubricate the rear ball screw after wiping off the old grease. Directly
apply new grease to the ball screw sparingly. Wipe off any excess.
10. Open the front safety doors and remove the four screws securing the
front guard of the front linear guide of the gantry (2 mm hex key).
11. Remove the screw covering the grease duct.
12. Apply grease to the grease duct on each end of the slide block. Wipe
off any excess. See figure below.
Pick and Place Probe Inspecting Gantry Parts
PSV5000 Owner’s Manual - 113 -

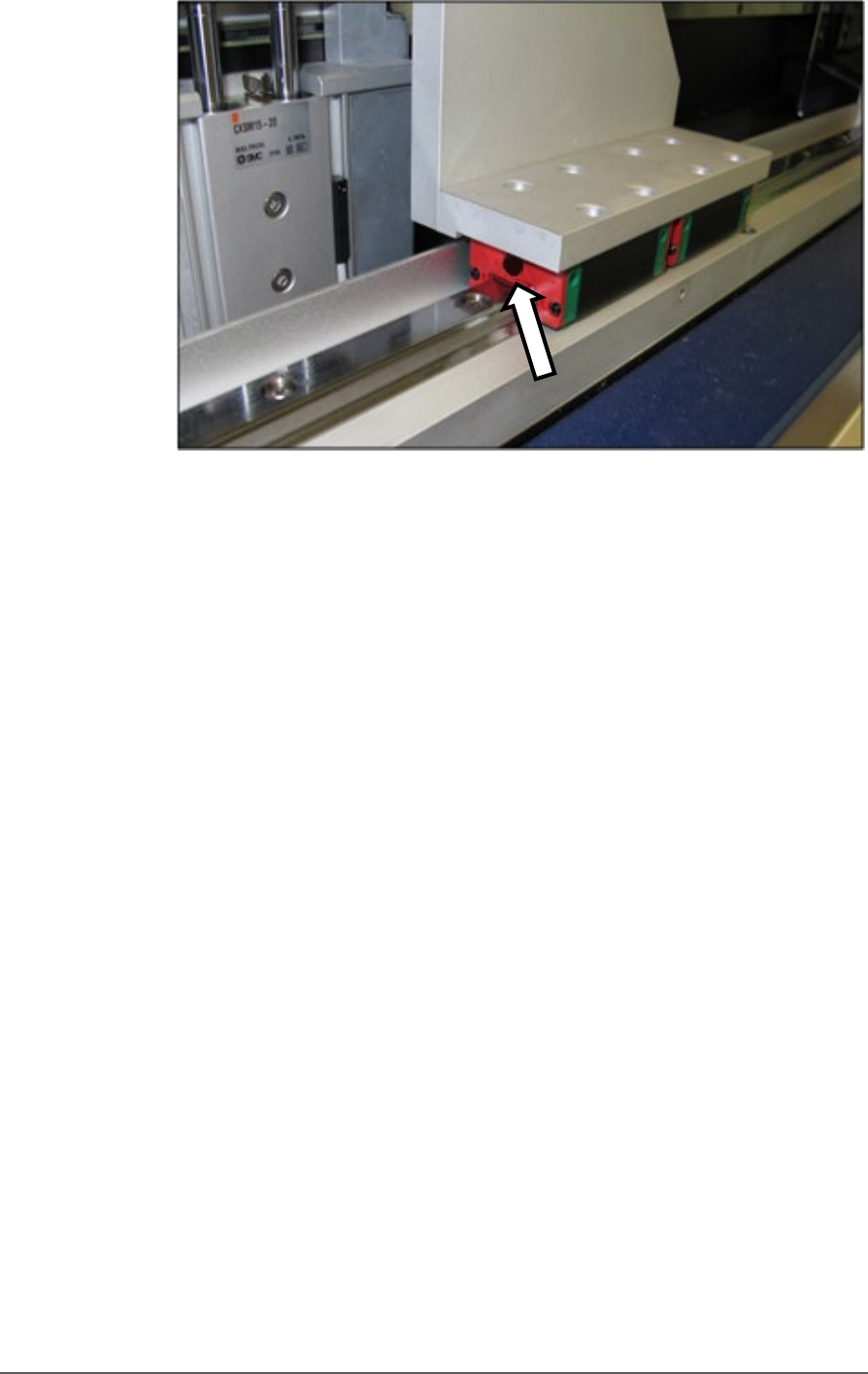

Figure 68: One of the two front gantry rail lube ducts. Note that the
guard has already been removed.
10. Lubricate the front ball screw after wiping off the old grease. Directly
apply new grease to the ball screw sparingly. Wipe off any excess.
11. Replace all screws, guards, and shields.
GANTRY Y-AXIS LUBRICATION
1. Open the front and rear safety doors and remove the four screws
securing the guard of the Y-axis linear guide (2 mm hex key).
2. Slide the guard out from either the front or back after pulling slightly
to clear the end cap.
Maintenance ■ Pick and Place Probe
- 114 - Data I/O ■ 096-0465-001C
A spare Probe Assembly
comes with the
Self-Service Spares Kit.

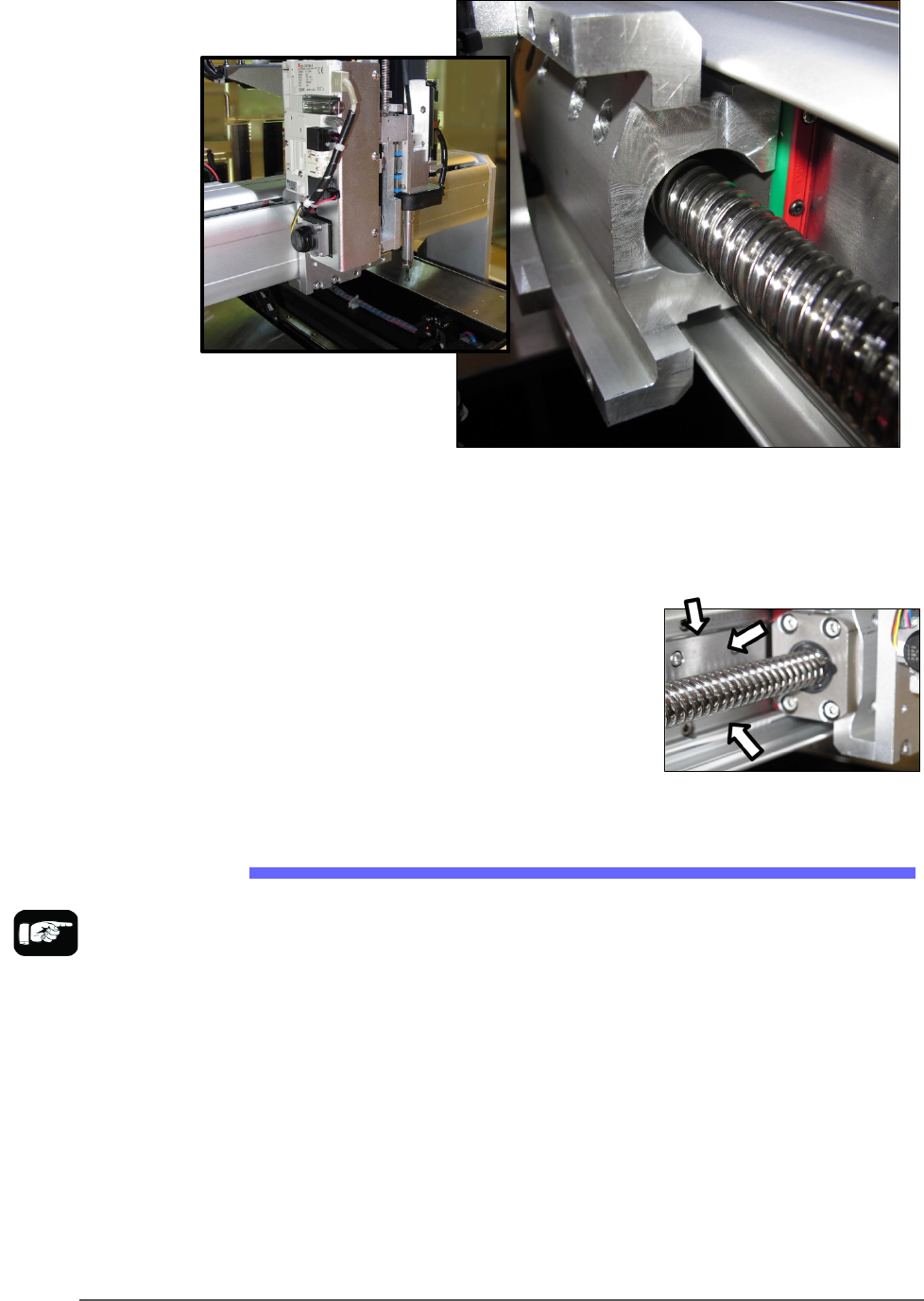

Figure 69: The Y-axis gantry ball screw and guide block, with cover
(left) and without.
3. Apply grease directly to the linear guide. Wipe off any excess.
4. Lubricate the Y-axis ball screw after
wiping off the old grease. Directly
apply new grease to the ball screw
sparingly. Wipe off any excess.
5. Replace all guards and shields.
Replacing a PNP Probe Assembly
Technicians trained on the PSV5000 can remove and re-install a Probe
Assembly if it is damaged or malfunctioning.
Requirement
• Metric hex key set (Long set with extended reach is best)
• Spare Probe Assembly
To remove a Probe Assembly
1. End a job and move the PNP head to the PARK position (click System
> Gantry > Tool) to move it to an accessible position.
2. Properly shut down the PSV5000 System; refer to Shutting Down the
PSV5000 System on page 38.
