T roublesh ooting Collect all PSV 5000 System Logs PSV5000 O wner ’s M anual - 135 - 2. (Op tional) Check a dditiona l SP C file s if the error ra rely a ppea rs or appeared a long time ago. 3. (Optional) In Coll ect…
Maintenance ■ Troubleshooting
- 134 - Data I/O ■ 096-0465-001C

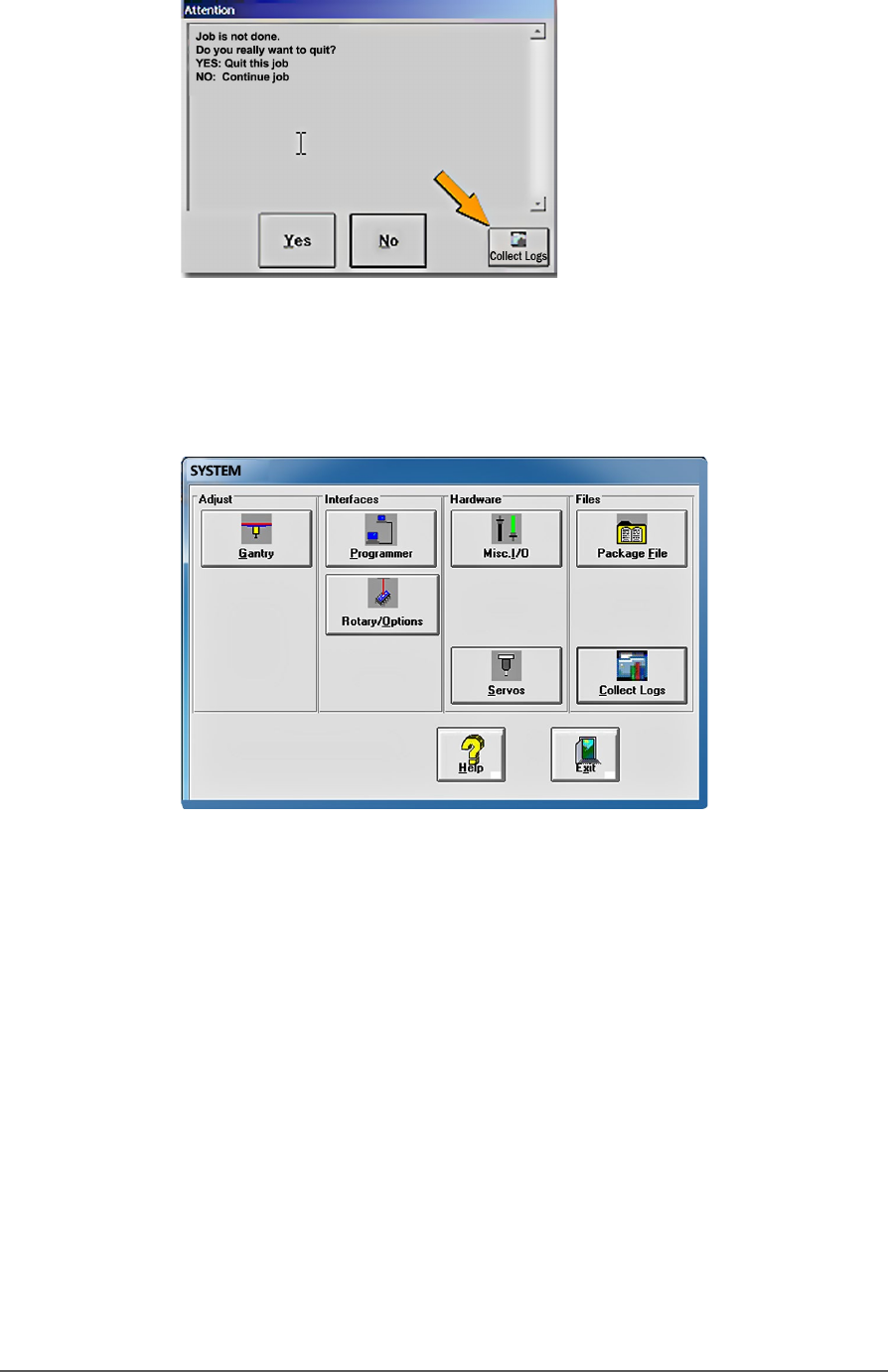

• SECOND AUTO METHOD: The CH700 Software also displays a
button in the System window.
When starting Collect PS Logs in AUTO Mode, only a progress screen is
shown on the lower left corner of the screen. All defaults are used and no
user action is required. A log zip file named with the current date and
time is saved in the Documents folder (C:\Documents, or
C:\Libraries\Documents.)
START APP METHOD IN WINDOWS OS
The Start App (non-auto) method is the Windows method using the
Windows Start menu; it offers some options. Click Window Start > All
Programs > Data IO > Collect PS Logs.
After starting Collect PS Logs from the Start menu, the main window
appears where you can select which items you need to collected.
1. Select or clear check boxes for files as desired.
Troubleshooting Collect all PSV5000 System Logs
PSV5000 Owner’s Manual - 135 -
2. (Optional) Check additional SPC files if the error rarely appears or
appeared a long time ago.
3. (Optional) In Collect PSV5000 Logs, to enter a text description to
the Zip file:
a. Click Add description.
b. Type a description into the field available. In addition to what
you type, the description will include the Date and Time the
log was captured and the serial number information from the
winAH400.ini file.
4. Click Collect and ZIP.
A ZIP file is created and copied to the Windows Clipboard. A message
advises pasting it into a folder you choose.
5. Click OK to the message about pasting the ZIP file to a desired folder.
For more information see the CH700 on-screen Help.
Maintenance ■ Troubleshooting
- 136 - Data I/O ■ 096-0465-001C
Programming Problems
Lamp Color Error Messages Possible Resolution
None
• One programmer has
many continuity
failures (in Statistics
window).
• Move the Socket Adapter to another
programmer to see if the problem is the
programmer or the adapter, as follows:
1. If a job is running click Pause and wait
until all programmer activity is done.
2. Check that there are no devices in the
target adapter. If there are, click Finish.
3. Replace the target Socket Adapter with
another empty adapter.
If the failure moves with the Socket
Adapter, check for bent, damaged or worn
pins on the sockets.
If continuity failures persists in the same
programmer, see Pick and Place Problems
on page 137.
If a programmer is not performing and you
cannot correct the error, you can continue to use
other programmer sites after disabling the
non-functional programmer. See Disabling
Programmers in the PSV5000 Operators
Manual or the CH700 on-screen Help.
Red
• All programmers fail to
program devices.
• Check that the Programmer Simulation
switch on the Setup window is OFF. If not,
switch it to OFF.
• Check that the Programmers circuit switch
on the Power Panel is On.
• Check the Log file for helpful information as
follows:
1. Pause the job.
2. Exit the Run window.
3. At the Setup window click System >
Log File.
