Introduction ■ Software - 28 - Data I/O ■ 096 - 0465 - 00 1C • A fume extractor traps mar king fumes and other by - prod ucts o f the laser marking operation. • The syste m desi gned t o compl y with Complie s wit h ANSI…
■ Software □ CH700 Application
PSV5000 Owner’s Manual - 27 -
on our website under the SUPPORT tab. For more information, see
TaskLink online Help or Job Runner/Job Creator online Help.
CH700 Application
Data I/O’s Automated Handler software is a Microsoft
®
Windows
®
-based
application for setting up and programming integrated circuits (devices)
on PSV5000 Systems. It offers a selection of many PSV5000 System
options such as input/output configurations, labeling options, and
statistical feedback methods. The CH700 application software resides in
the Handler Computer.
For updates to CH700 Software see Software and Firmware
on our web
site under the SUPPORT tab. Then look for PSV5000 under Download
the Latest Firmware.

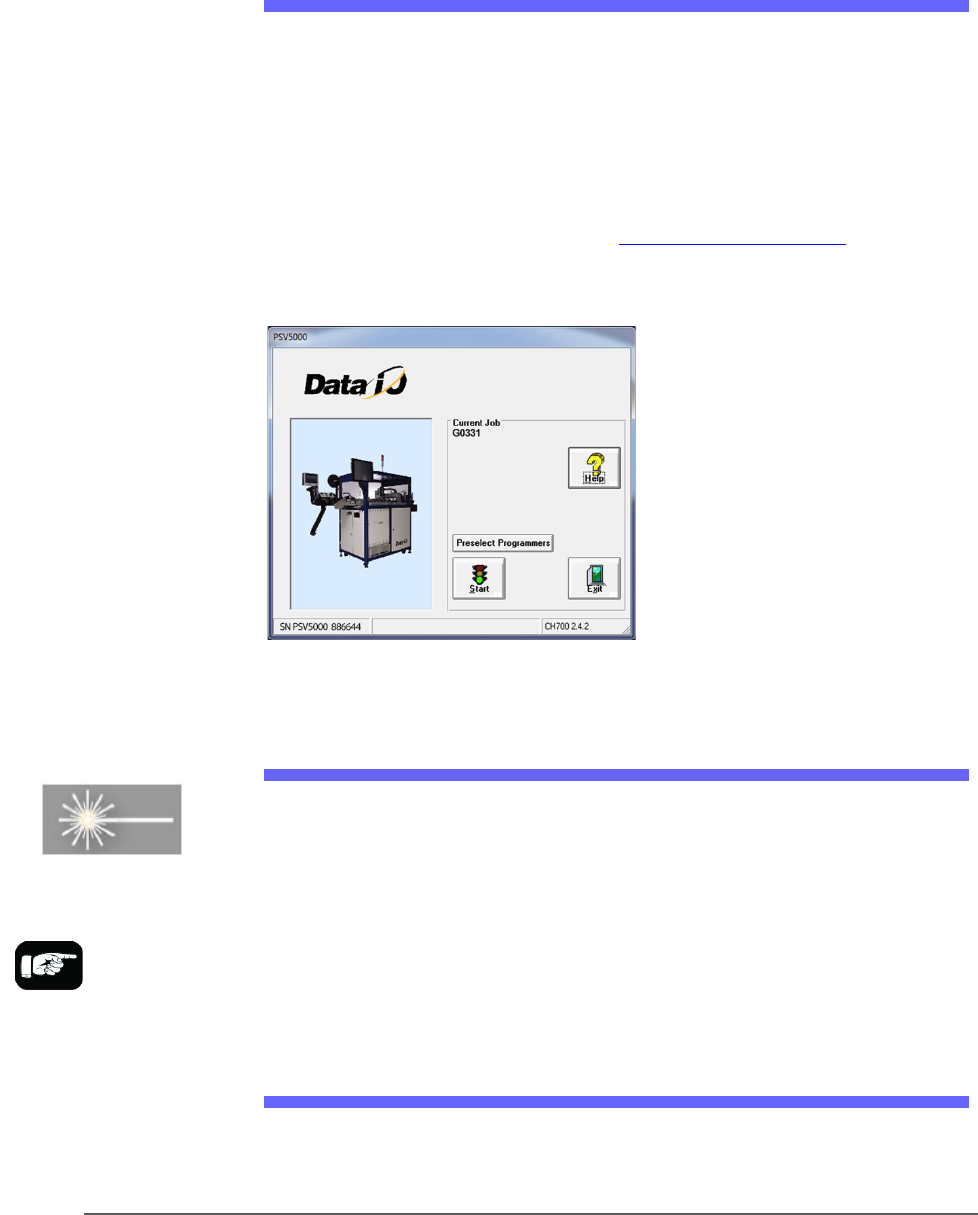

Figure 14: CH700 Start-up window for PSV5000.
Laser Software
The Laser software is a Windows-based application that allows creating
parameters required for laser marking jobs as well as initiating laser
marking. This MarkingMate software is on the Handler computer.
When the Laser Marking System is set up and initialized, it receives
commands from the CH700 which starts the marking sequence.
For more information please refer to the MarkingMate software help.
Laser Safety
The PSV5000 Laser option is designed in accordance with the following
safety guidelines:
For more information
about the Laser System,
see Setting Up the Laser
Marking Module on page
55 and (Optional)
Creating a Laser Marking
File on page 81.
Introduction ■ Software
- 28 - Data I/O ■ 096-0465-001C
• A fume extractor traps marking fumes and other by-products of the
laser marking operation.
• The system designed to comply with Complies with ANSI, IEC, and
CDRH guarding standards.
• Refer to and follow laser and safety precautions in ANSI Z136.1 -
2007, American National Standard for the Safe Use of Lasers.
Procedures listed under the Standard include: appointment of a
Laser Safety Officer, operation of the product in an area of limited
access by trained personnel, servicing of the equipment only by
trained and authorized personnel, and posting of signs warning of
potential hazards.
WARNING: Possible eye and skin injury! The laser will fire even
when safety doors are open. If equipped with Laser Marking, do
NOT interfere with, or work on, the Laser Module while the Laser PC
key-switch is ON.
■ Room Consideration □ Access Space
PSV5000 Owner’s Manual - 29 -
Room Consideration
When planning the space and environment for a PSV5000 machine
installation, consider ventilation and access for maintenance and
repair.
Summary-Regarding ventilation, the minimum room size for any
PSV5000 System is 3 x 3 meters x 2.4 meters high (10 x 10 x 8 feet).
However, access space for some machines requires a larger room;
see Access Space below.
The PSV5000 System, and its optional components, such as a Tape
Output System or Automatic Tray Feeder, contains mechanical
components and electrical systems that generate heat and
extremely low levels of particulate matter.
The room should have suitable levels of general room heating,
ventilation, and air conditioning. For an occupied office area, the
American Society of Heating, Refrigeration, and Air Conditioning
Engineers, Inc. (ASHRAE) Standard 62-1992 specifies a minimum
of 15 cubic feet/minute (CFM) (0.424 cubic meters/minute) of air
per occupant. This level of ventilation is intended to provide the
occupants of the room with sufficient air movement to provide a
comfortable environment.
However, because the PSV5000 System generates heat, an
additional 85 CFM (2.40 meter
3/minute) is recommended, bringing
the total room air exchange rate to 100 CFM (2.83 meter
3/minute).
In a room with dimensions of 10 feet by 10 feet, with an 8 foot
high ceiling (800 cubic feet of total interior area), 100 CFM would
provide approximately six room air changes per hour. (Metric room:
3.0 M x 3.0 M x 2.4 M high ceiling equals 22.65 cubic Meters of
total interior area).
Based on industrial hygiene monitoring performed during the worst
case operating scenario of a PSV5000 System, this rate of air
movement is sufficient to provide a safe and healthy work
environment regarding air quality.
Access Space
The PSV5000 Machine should be located in a room with adequate
space to allow easy access to all enclosures.
The air movement is
intended to dissipate
heat, odors, and other
exhalation products
from respiration such as
carbon dioxide and water
vapor.
