■ Setting Up Input and Output Media □ The Tape Output Setup an d Operation PSV5000 O wner ’s M anual - 49 - c. Rotate th e rectangular s hield countercl ockwise 9 0° to the ‘sto rage’ po sitio n and screw it to the fixed…
Setup ■ Setting Up Input and Output Media
- 48 - Data I/O ■ 096-0465-001C
the carrier tape through a mechanism that seals the tape (using heat or
pressure), and rolls the filled tape onto a reel for delivery to the next
stage in the manufacturing process.
Figure 25: Tape Output Module on PSV5000
Note: For additional information, refer to the TM-50 Tape Output System
User’s Guide that came with your Tape Output System.
INSTALLING THE TAPE OUTPUT MODULE
TOOLS REQUIRED
• Metric hex key set
• Three people to lift / install the Tape Output Module
These steps are for installing the Tape Output Module (which can be
ordered with the PSV5000).
1. On the left side of the machine prepare the small clear safety covers
for receiving the Tape Output Module.
a. Loosen the screw on the lower left of a rectangular safety
shield shown in Figure 2‐14 (4 mm hex key).
b. Unscrew the top screw (4 mm hex key).
■ Setting Up Input and Output Media □ The Tape Output Setup and Operation
PSV5000 Owner’s Manual - 49 -
c. Rotate the rectangular shield counterclockwise 90°to the
‘storage’ position and screw it to the fixed safety shield with
the screw you just removed. Refer to the figure below.

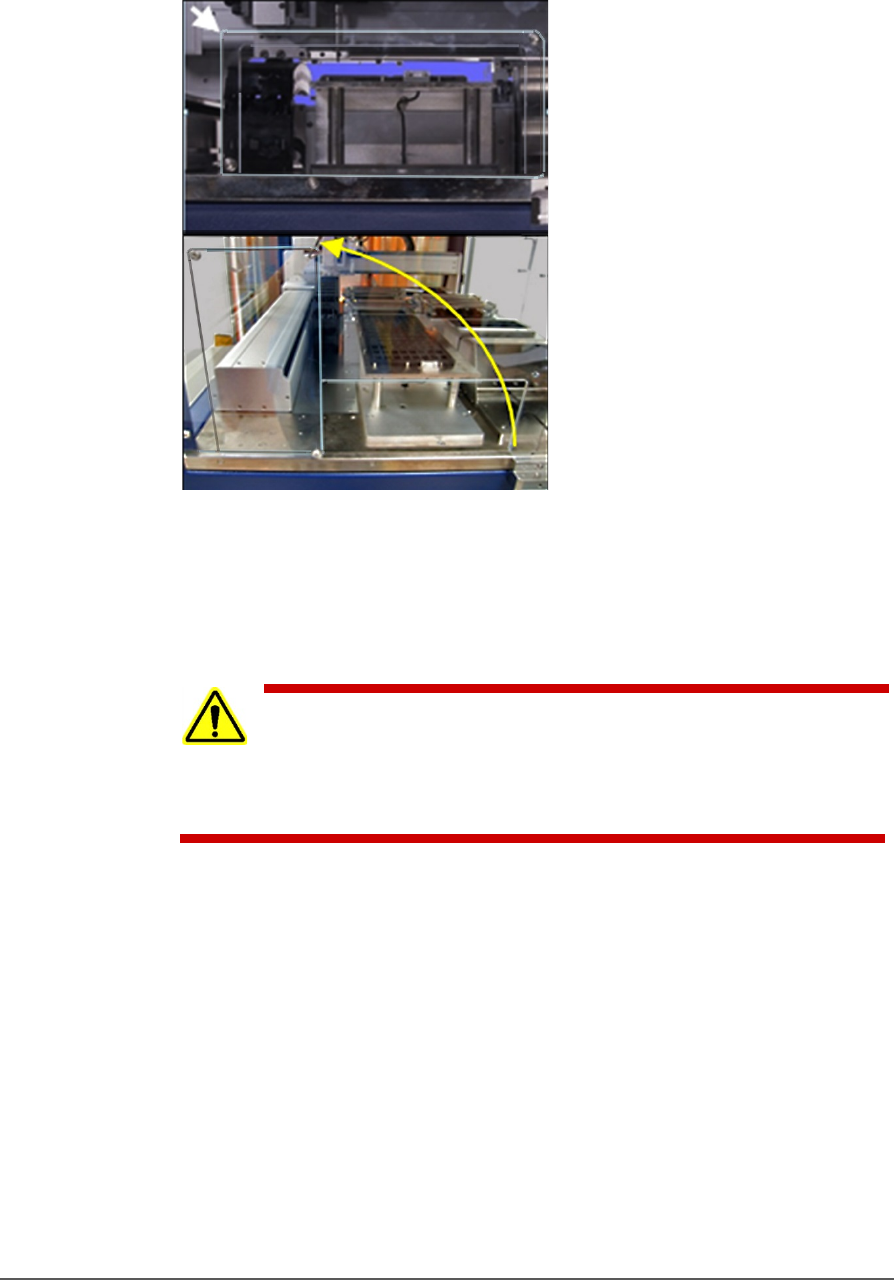

Figure 26: To install the Tape Output Module, Shield rotates
counterclockwise 90°.
2. Unscrew the five screws that secure large fixed safety shield
(4 mm
hex key).
WARNING: Possible injury or property damage! The Tape
Output
Module is heavy. Use caution. Two people are
required to lift this
equipment. Approximate weight: 47.63 kg
(105 lbs.). A third person may be
required to bolt it into place.
3. Install the Tape Output Module onto the plate in the PSV5000
workspace and screw it down with six screws (5 mm hex key). See
the figure below.
Setup ■ Setting Up Input and Output Media
- 50 - Data I/O ■ 096-0465-001C

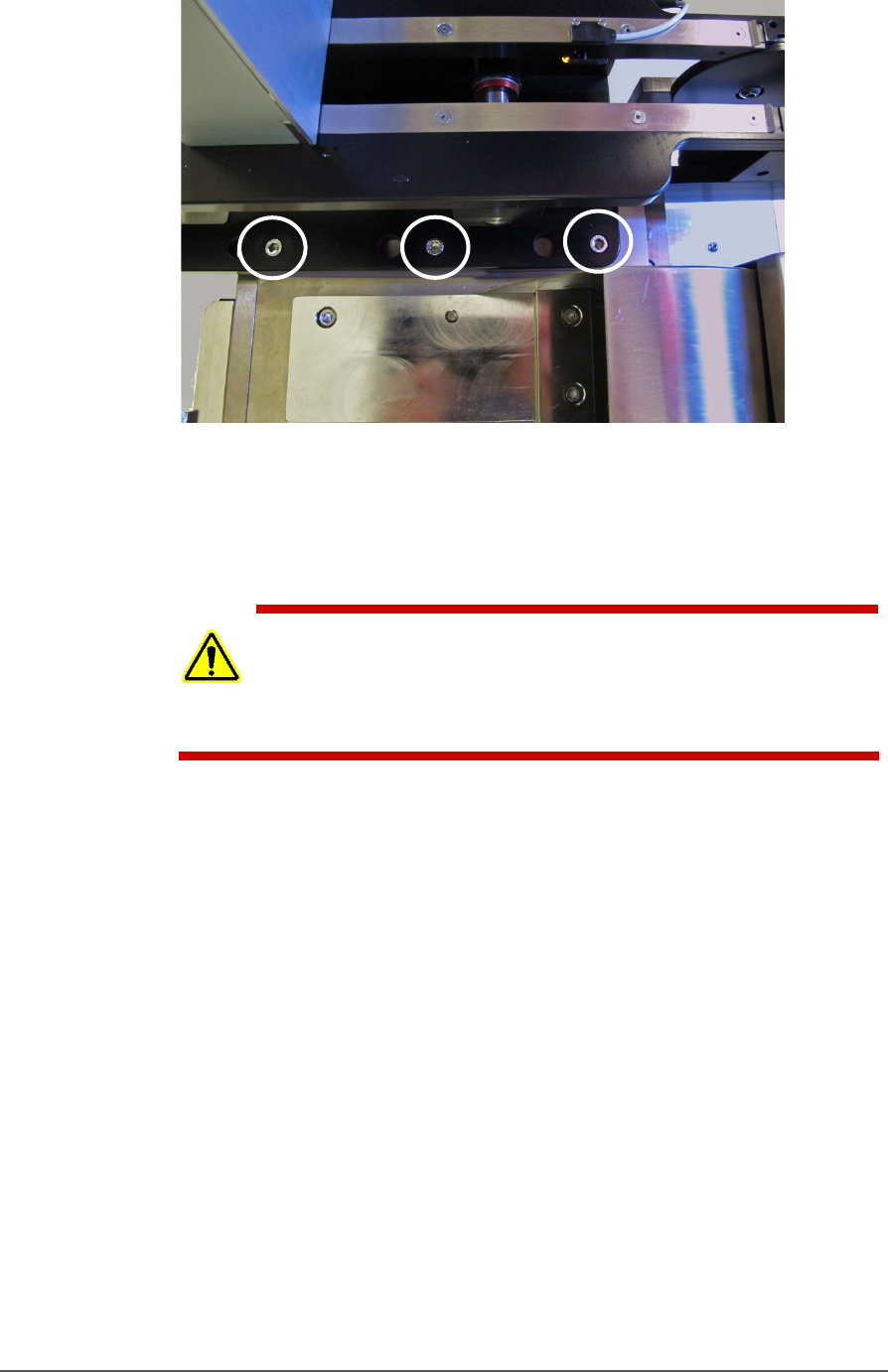

Figure 27: Tape-Output Module mounting screws (circled). Three
more mounting locations are on back side (hidden in this view).
Ref: The Tape-In mount and chute are in the foreground.
SETTING UP THE TAPE OUTPUT MODULE
CAUTION: Possible tape damage from excessive heat! Improper routing
of the device tape may cause enough heat to melt the tape. Ensure the
correct routing path is followed. See the TM-50 Tape Output System
User’s Guide.
To set up the Tape Output System:
1. Edit the winAH400.ini file for Tape Output—
1a. Using Windows Explorer, locate C:\CH700\winAH400.ini
and make a backup copy, for example,
winAH400backup.ini.
1b. Open the original file with Microsoft Notepad.
1c. Locate the line: TapeOutPutInstalled=FALSE and change it
to True: TapeOutputInstalled=TRUE
1d. Save the winAH400.ini file and exit Windows Explorer.
2. The Tape Output Module gets power and air from the PSV5000
System. Connect the compressed air, electrical power, and
communication (Just right below the Tape Output System).
3. Ensure the PSV5000 System air is connected and power is ON.
4. Switch the Tape Output Module ON by pressing the power switch.
