Administrative Functions ■ Administrator Functions
- 68 - Data I/O ■ 096-0465-001C
2e. After it finishes, verify that the job passed the tests.
Note: If a programmer does not have a Socket Adapter, or an incorrect
Socket Adapter is installed, the programmer will automatically be
disabled.
(Optional) Setting TaskLink to Operator Mode
Options to add, remove, and edit Tasks are found in TaskLink’s Task
Manager Dialog when in Administrator Mode (the default). You can set
TaskLink to Operator Mode which limits actions to running and viewing
tasks in the Operator Dialog but not editing or deleting Tasks, Kits, or
Archived Jobs.
To switch between Operator Mode and Administrator Mode, see
TaskLink’s online Help.
Enhanced Yield Programming
1. Several selections on the Setup window > Options tab affect yield
that are not set in TaskLink. Administrators may wish to advise
operators regarding the setting of the Continuity Retries field and
the Fail Retries field.
2. [Automotive Performance Pak only] Optional: Determine if any of
the five utilities available with the AP Pak are required for this job.
They must be set in the CH700 Setup window > Options tab.
3. Set security rights for each operator that you do—and do
not—authorize to make AP Pak changes. Changes to User Rights
are made in the Security Dialog.
Note: Only installed options are available for selection on the Options tab.
If different input media (tape or tray) is desired, the winAH400.ini file may
need to be edited. See the online Help for instructions editing the
WinAH400.int file or contact Data I/O support or an authorized technician.
Dry Run (Ignore Programmers)
(Optional) If you want to do a Dry Run or transfer devices from input
media to output media with no programming, click Ignore Programmers
so it is ON (green); the PNP head will not stop at the programmers. Laser
For more information
about Security see
Creating Security
Profiles on page 65.
For more information
on the AP Pak, see the
CH700 on-screen
Help.
Administrator Functions ≡ Teaching the Workspace Locations
PSV5000 Owner’s Manual - 69 -
marking can be used with Ignore Programmers turned ON. The default is
Off.
Note: Set security rights for each operator to use—or not use—the Ignore
Programmers option. Changes to User Rights are made in the Security
Dialog.
Teaching the Workspace Locations
The Package File is a text file containing calibration information that the
PNP head uses to properly pick, rotate and place devices.
After your new Package File is taught, it will contain information about
the specific device package and Socket Adapter as well as the number of
programmers, input and output media, and optional equipment such as
laser marking, if applicable.
A Package File must be created for each device that uses a different
Socket Adapter. If a Package File already exists that can be reused (same
device package, same Socket Adapter, and same input/output media) a
new one is not necessary.
PREREQUISITES
• A Task and a Package File must exist. For more information, see
topics above.
• A primary device has been selected.

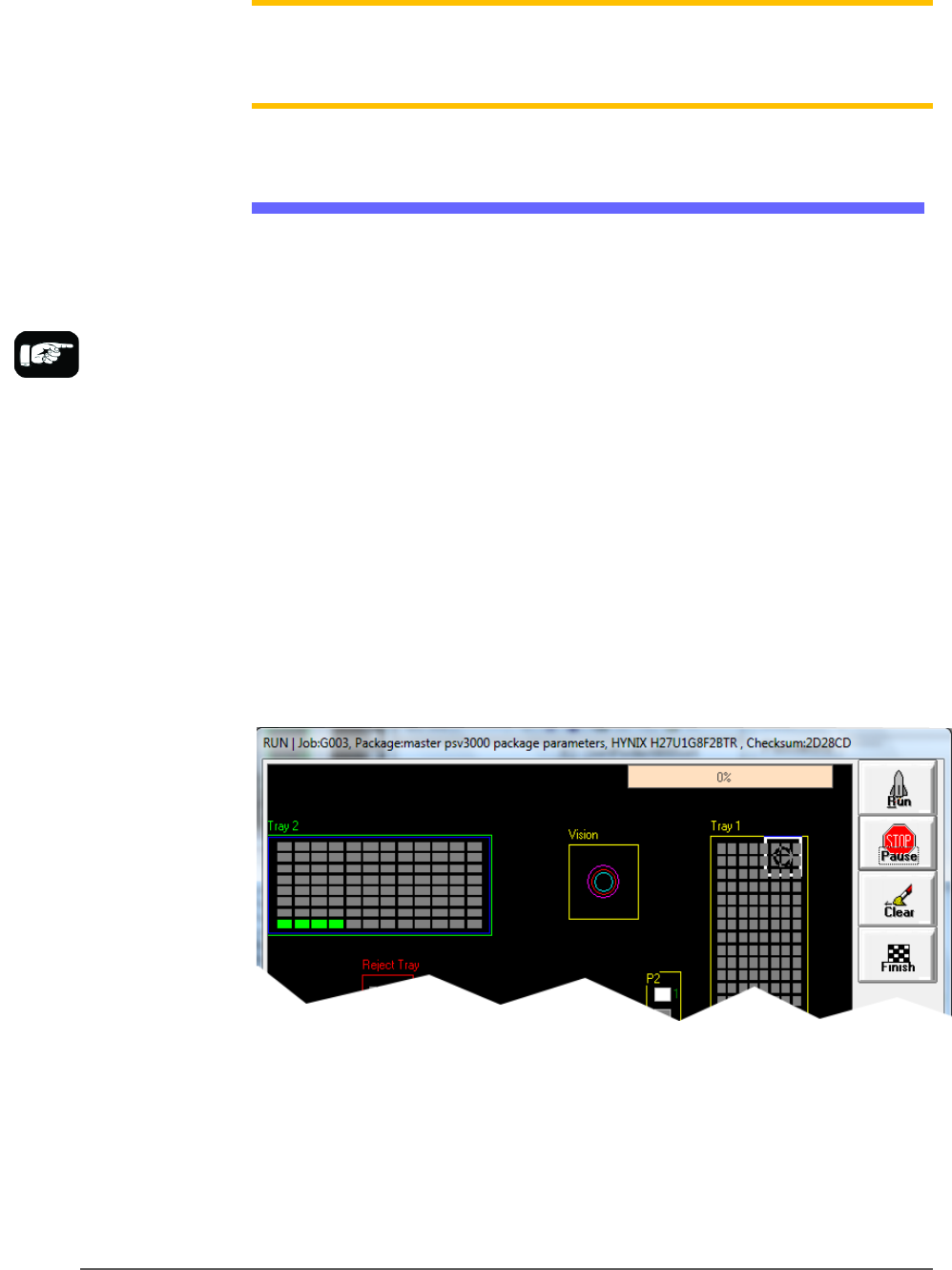

Figure 37: Run window shown with static Trays.
TO TEACH LOCATIONS
1. Run the job in TaskLink/Job Creator/Job Runner that uses your
new (renamed) Package File.
1a. Select a Task/Job and click Run.
Package Files reside in
the Handler Computer in
Folder
C:\CH700\Package..
Administrative Functions ■ Administrator Functions
- 70 - Data I/O ■ 096-0465-001C
1b. When the CH700 Application opens, click Start.
1c. At the Setup window, make setup selections.
1d. Click System > Gantry. A password may be required—refer to
Creating Security Profiles on page 65.
2. To continue, see the CH700 on-screen Help (Teaching Locations >
Printable list of the steps). It covers teaching workspace locations for
all media options.
Note: The PSV5000 System can have static trays or a Tray Feeder.
Teaching tray locations is the same for both.
ERRORS
Please Refer to CH700 on-screen Help. In the Help table of contents click
Browse Sequences->Create a Package File->Errors Creating the Package File.
Optimize Movetimes
After the equipment locations are taught, you can optimize the
movement of the PNP head in the work envelope. This command (Get
Movetimes) calculates programming times versus head travel time to
decide the best PNP head path, especially effective when some
programmers are not used.
To get Movetimes:
1. On the Gantry window, click Get Movetimes.

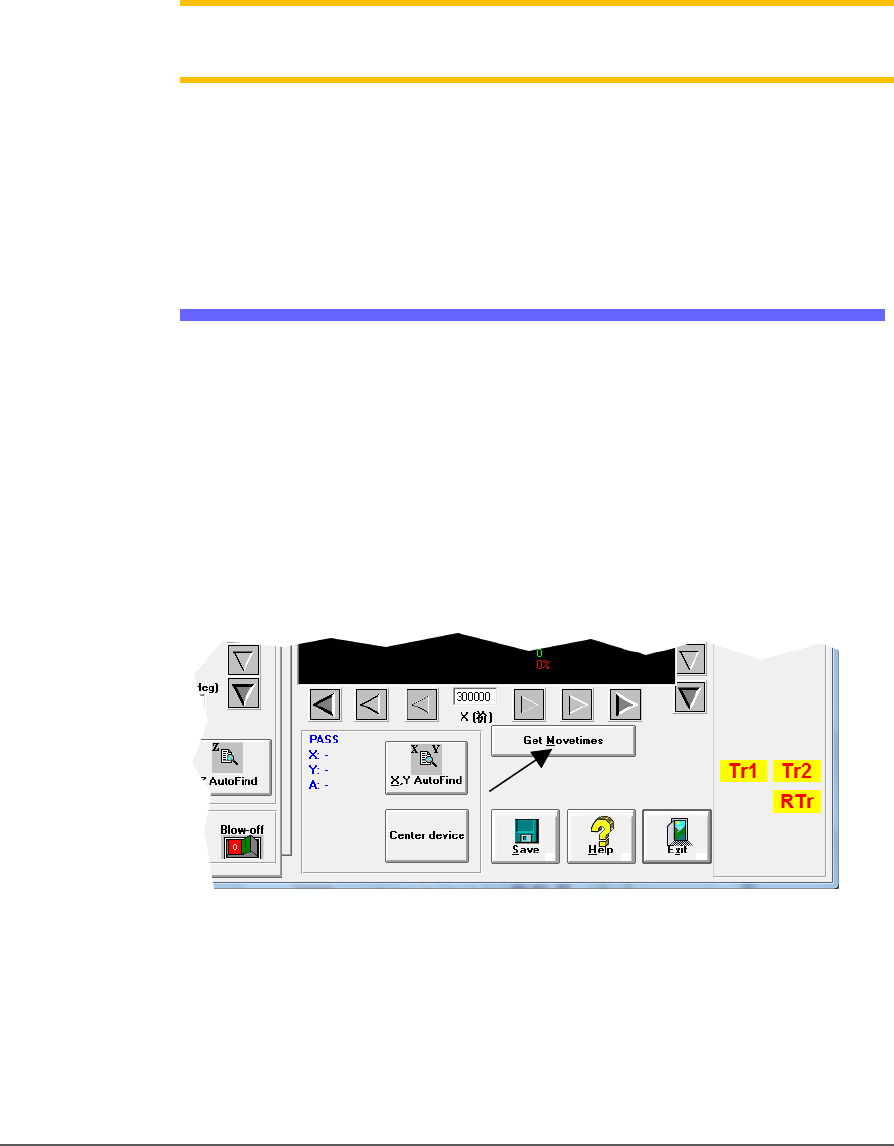

Figure 38: Click Get Movetimes to optimize head travel.
2. Click Yes when prompted to save positions.
