Administrative Functions ■ Administrator Functions
- 74 - Data I/O ■ 096-0465-001C
Note: In the above example the SPC logging file is saved to C:\ directory. It
can, however, be saved elsewhere on the Handler Computer hard drive, or
on a networked drive if network connected.
The SPCOut.txt file contains semicolon-delimited fields. A partial list
follows:
The SPCOut.txt Field Descriptions
01 DevicesInputsystem - number of devices picked from Input
media
02 DevicesInspected - number of devices inspected by Vision system
03 InspectionQuality* - as percentage, compared with reference
vision
04 InspectionYield
05 DevicesInsertedSocket - number of devices inserted into socket
06 SocketYield
07 ProgrammerYield
08 ProgSysYield - Yield of all programmers together
09 DevicesProcessedMarker
10 MarkingYield
11 SystemThroughputExcWait - starts with first device placed,
excludes wait times.
12 SystemTotalThroughputIncWait - starts when Run starts,
includes wait times
13 SystemYield
14 AreaID - Programmer #1 = “17”, Programmer #2 = “18”, …,
Programmer #6 = “40”)
15 PosID - that is Socket #
16 TimeStamp - Date/Time of SPC log entry
17 OrderNumber - Job Name and or number
18 Package - A Package File used for the job
If the Automotive Performance Pak is installed, an extended SPC log file
(with APP enabled) would have the following delimited fields:
TimeStamp
Administrator Functions ≡ Monitoring Statistics
PSV5000 Owner’s Manual - 75 -
JobName
JobDescription
Device
Package
VisionPRJ
RecordID
SystemStatus
SystemMSG
FromAreaID
FromPosID
DeviceStatus
WhichCup
SNused
ToAreaID
ToPosID
DevicesInspected
InspectionPassed
InspectionQuality
DevicesInserted-Socket
SocketYield
ProgrammerYield
ProgSysYield
DevicesProcessed-Marker
DevicesMarked
DevicesInputSystem
SystemYield
SystemThroughputExcWait
SystemTotalThroughputIncWait
DevicesOutputSystem
MachineID
ProgTime
*Inspection quality contains a 4 number record divided by the pipe[|],
such as 1|2|3|4.
1: 100.0-> vision pass or XXX.X->vision error code
Administrative Functions ■ Administrator Functions
- 76 - Data I/O ■ 096-0465-001C
2: dX
3: dY
4: dZ
E
XAMPLE:
100.0|85.0|-152.4|-1022.4
dX,dY are recorded in μm, dR is in microdegree (μdeg)

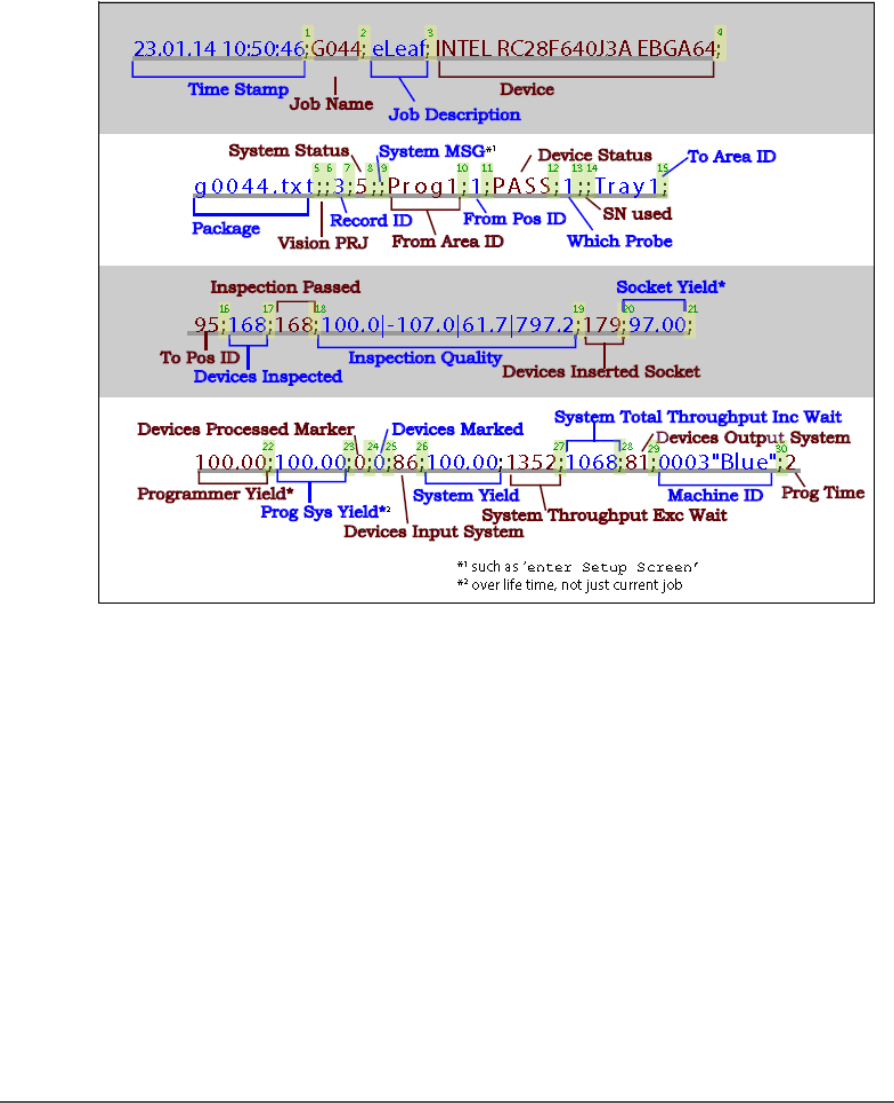

Figure 42: Sample SPC Log File line entry defined.
