SPECIFICATION Item Specification Models DEK 265 machine, 220Volt -240Volt 50/60Hz. Part No.157491 DEK 265 machine, 100Volt -120Volt 60Hz. Part No.157490 Cabinet Material: High impact ABS R21 UL94 H&B Pinseal finish c…
Issue 3. Nov 00 DEK Printing Machines Ltd 7
DEK VACUUM AND FILTRATION UNIT SP08
DESCRIPTION
24V Supply
from DEK Machine
24V Fuse
Mains Fuse
On / Off Switch
Incoming Mains Supply
Chassis Plug
HP Air In
from DEK Machine
Exhaust from
HP Outlet
Silencers
Exhaust from
Motor Fans

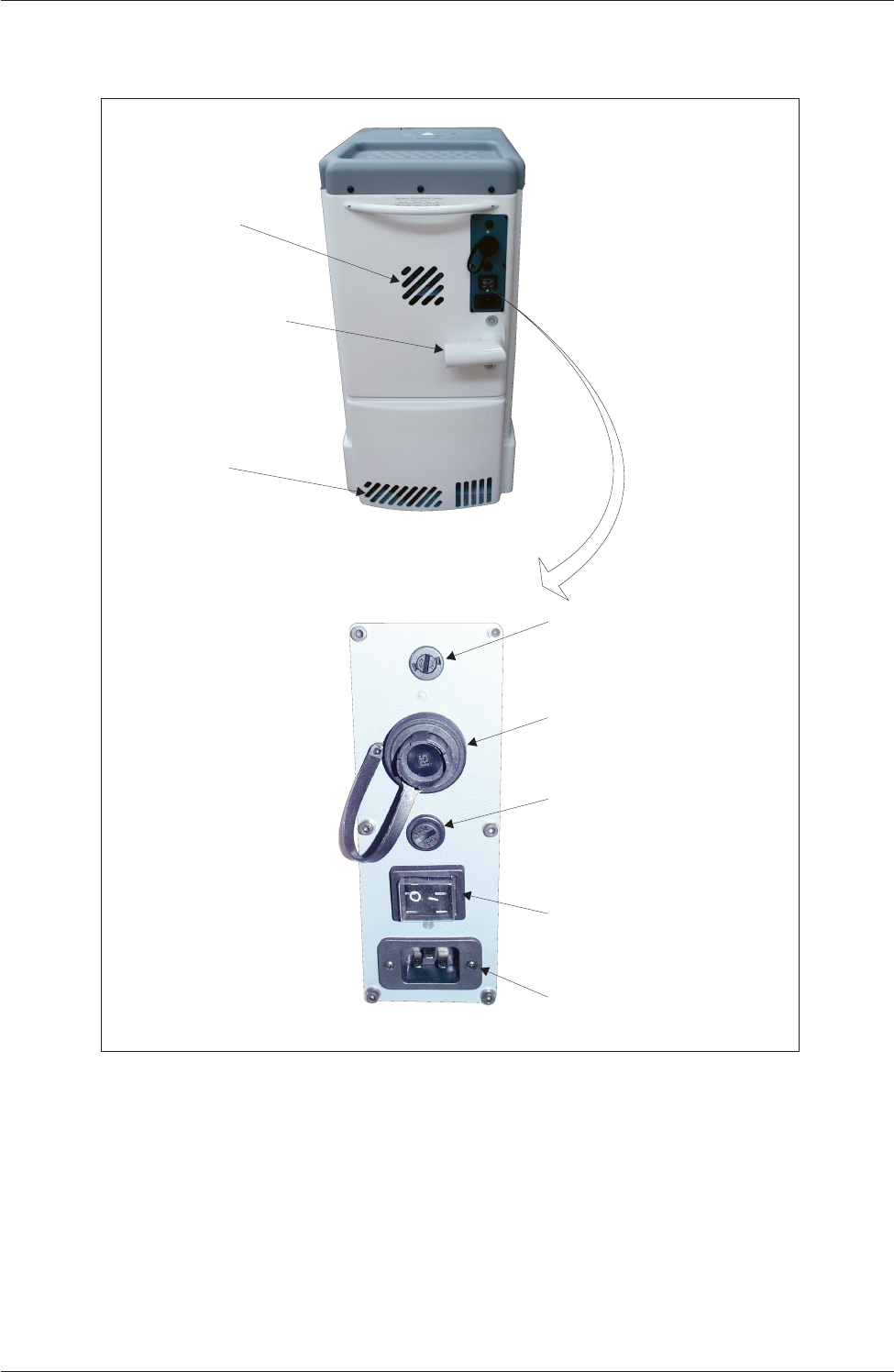

Figure 3 Rear Connection Panel
SPECIFICATION
Item Specification
Models DEK 265 machine, 220Volt -240Volt 50/60Hz. Part No.157491
DEK 265 machine, 100Volt -120Volt 60Hz. Part No.157490
Cabinet Material: High impact ABS R21 UL94 H&B Pinseal finish colour 0706
Height - 870mm
Width - 422mm
Depth - 600mm
Front control panel height - 500mm
Contaminated air intake height - 500mm
By-pass Cooling
Module
Contains the cooling air inlet and high-pressure air outlet to two stage silencer
assembly.
Vacuum Pump and
HEPA Module
Motors - Twin multi-stage by-passing cooling acoustic motors fitted with fail
stop carbon brushes.
Available
Voltages -
220Volt -240Volt, 50/60 Hz
100Volt -120Volt, 60Hz
Power - 2000 Watts
NOTE:
Motor watts shown are MAXIMUM input watts. However, in accord
with the specific requirements of the majority of International Approved
Agencies, rating labels on machines show MEAN operational watts,
being the average watts consumed during normal use,
i.e. 1000 watts MAX = 800 watts MEAN
2000 watts MAX = 1600 watts MEAN
Vacuum 1257 mm. Water gauge
Airflow Free air 49.6 L/sec
HEPA
Filtration
High efficiency particulate air filter 0.5 micron to 99.9975% efficiency
Third Stage Filter A 5-micron fabric filter is located between vacuum pump assembly and the activated
granular (ozone) filter
Ozone Filter Comprises a stainless steel bodied activated coconut shell granular filter containing
12.5 kg filter media
Pre-filter A 5-micron fabric filter is located between air in chamber and the activated granular
(ozone) filter
Air-in Chamber Powder coated mild steel contaminated air inlet receiving chamber secured to base of
cabinet
8 DEK Printing Machines Ltd Issue 3. Nov 00
DEK VACUUM AND FILTRATION UNIT SP08
SPECIFICATION
Item Specification
Power Control Box Folded aluminium fabrication located at top front of cabinet containing:
2 x 30 amp double pole power relays
1 x 30 amp motor power regulator
1 x 16 amp outlet socket (to motor unit)
1 x EMC mains filter
1 x 7 pin outlet socket (to front control panel)
2 x flying leads to rear panel
Internal Transfer
Pipework
A 52 mm bore wire-reinforced hose fitted with neoprene hose ends
Integral Silencer
Assembly
A 68 mm bore x 500 mm PVC acoustically lined transfer pipe coupled to the exhaust
muffler
Front Control Panel Comprising:
Displaying 7 digit motor run hours service meter
Motor speed controller 50% to 100%
Red standby neon indicator.
Green blinking remote control run indicator.
Fitted with flying lead and 7 pin plug to control box
Rear Control Panel Comprising:
1 x 16 amp chassis plug
1 x 16 amp double pole switch
1 x 13 amp fuse holder and fuse
1 x 2 pin remote chassis plug (for remote switching)
1 x 500 ma. fuse holder and fuse.
Cabinet Lid Recessed grey moulding (acoustically lined) tongue and grooved fixing at front, 3
screw fixing at rear with A4 size moulded tray
Grab Handles Powder coated 15mm solid bar aluminum front and rear
Noise Level 57dB
Weight 58Kg
Internal Cabinet
Temperature
41.5
o
C
Mains Lead 5 Meters x 1.5mm, black
Suction Hose 2 Meters x 38mm, EVA (Ethyl Vinyl Acetate)
Issue 3. Nov 00 DEK Printing Machines Ltd 9
DEK VACUUM AND FILTRATION UNIT SP08
