AV131 MAINTENANCE MANUAL 5.6 Anv il Unit D79MEC- Y4-400-A 0 5.6- 4
AV131
MAINTENANCE MANUAL
5.6 Anvil Unit
D79MEC-Y4-400-A0
5.6-3
Sensor Layout Drawing (Part A)
No. Name Type
1.
θA axis origin detection
EE-SPX403
2.
θA axis (+) safety limit
EE-SPX403
3.
θA axis (-) safety limit
EE-SPX403
2. θA axis (+) safety limit
1. θA axis origin
3.
θ
A axis (-) safety limit
AV131
MAINTENANCE MANUAL
5.6 Anvil Unit
D79MEC-Y4-400-A0
5.6-4
AV131
MAINTENANCE MANUAL
5.7 Part Supply Unit
D79MEC-Y5-000-A0
5.7-1

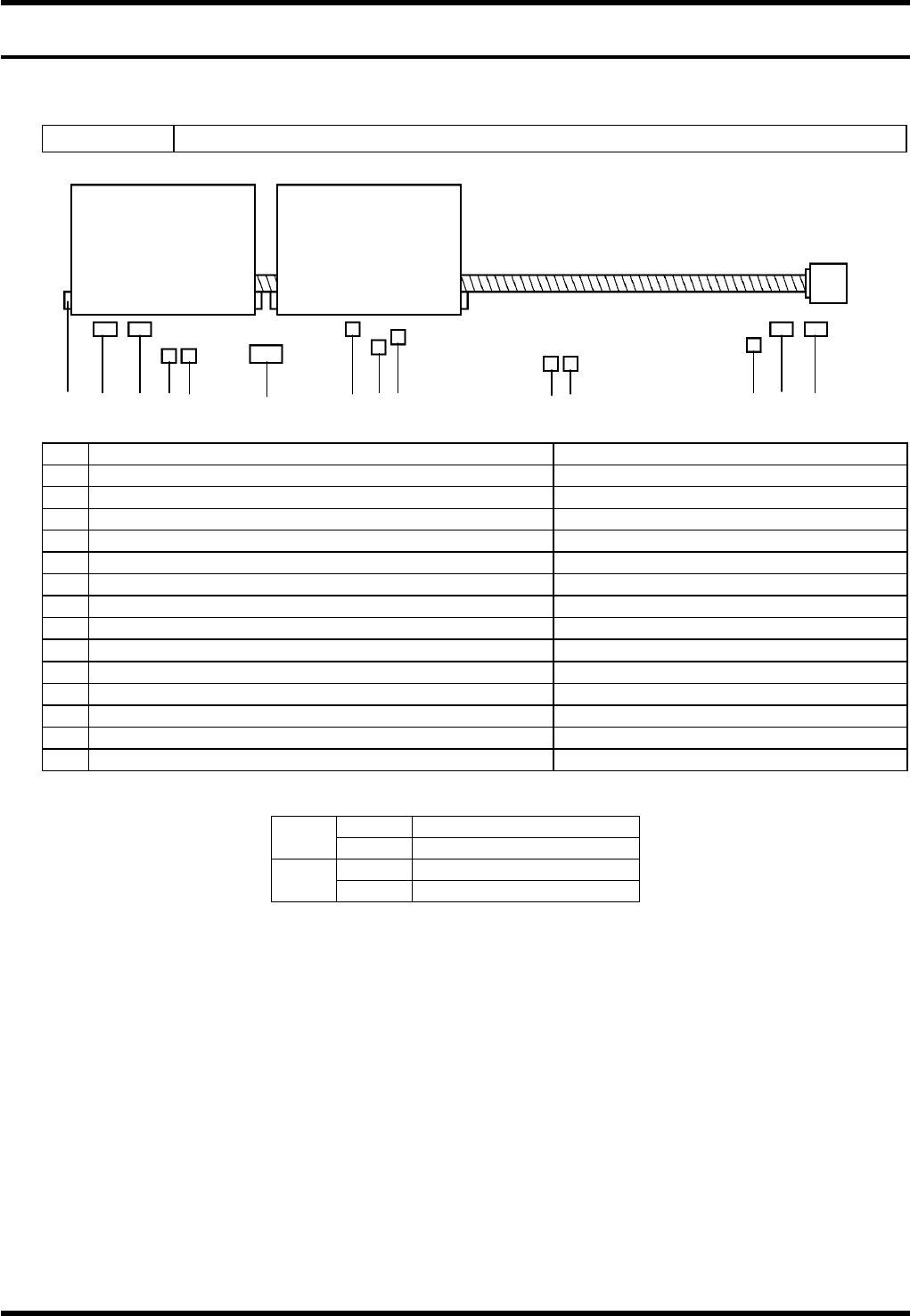

5.7. Part Supply Unit
D79MEC-Y5-000-A0
5.7.1 Z Axis (120 Inputs)
Unit No. N610064467AA
No. Name Type
1. Cartridge missing detection sensor E32-TC200
2. ZR axis safety SW LS-11S / RL
3. ZR axis standby check SW LS-11S / RL
4. ZR axis origin detection P921S1
5. ZR axis (-) limit detection P921SA1
6. Table gap sensor LS-11S / RL
7. ZL axis (-) safety detection P921SA1
8. ZL axis origin detection P921S1
9. ZL axis (-) limit detection P921SA1
10. ZR axis (+) safety detection P921SA1
11. ZR axis (+) limit detection P921SA1
12. ZL axis (+) limit detection P921SA1
13. ZL axis standby check SW LS-11S / RL
14. ZL axis safety SW LS-11S / RL
Z axis overlimit position
+ side 1820.50 to 1821.50
ZL
- side -4.50 to -5.50
+ side 1820.50 to 1821.50
ZR
- side -4.50 to -5.50
1. 2. 3. 4. 5. 6. 7. 8. 9. 10.11. 12. 13. 14.
