6.1.2 Grease Gun Unit

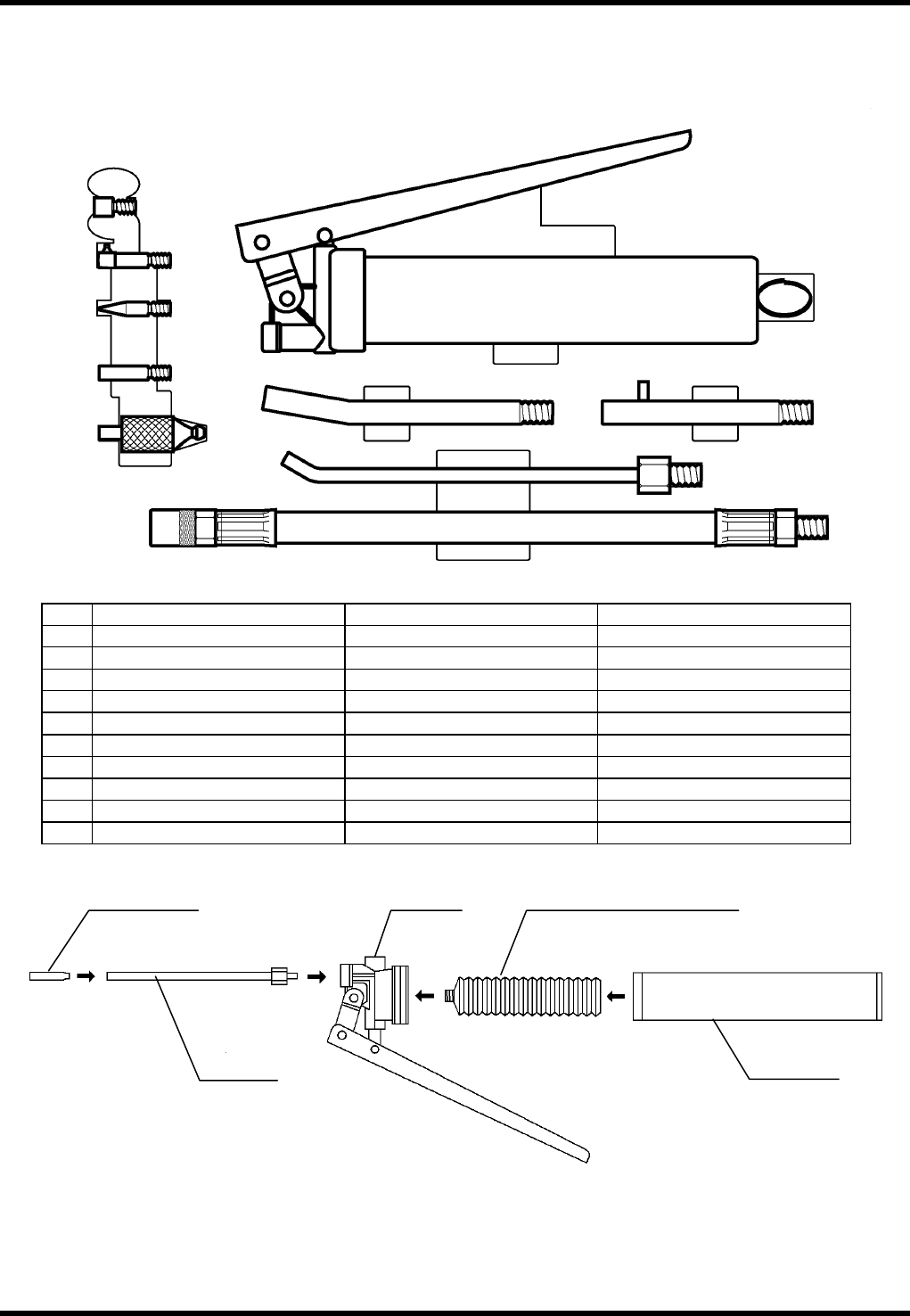

The drawing below shows the configuration of grease gun unit. (1046601000)
This unit enables you to inject grease approx. 0.5 cm
3
per shot.
No. Name Part No. Model
1 Attachment N2 type N938YYYY-009 Nozzle N2
2 Attachment L type N938YYYY-007 Nozzle L
3 Attachment P type N938YYYY-006 Nozzle P
4 Attachment N1 type N938YYYY-008 Nozzle N1
5 Attachment J type N938YYYY-010 Nipple J
6 Grease pump type N938CH100A CH-100A
7 Attachment H type N938YYYY-004 Nozzle H
8 Attachment NL type N938YYYY-011 Nipple NL
9 Attachment U type N938YYYY-015 Nozzle U (remodeled)
10 Flexible hose N938YYYY-012 SPK-3C, L=280
1
2
3
4
5
6
7 8
9
10
Grease (N990PANA-027)
Attachment Body
Cover
Nozzle
