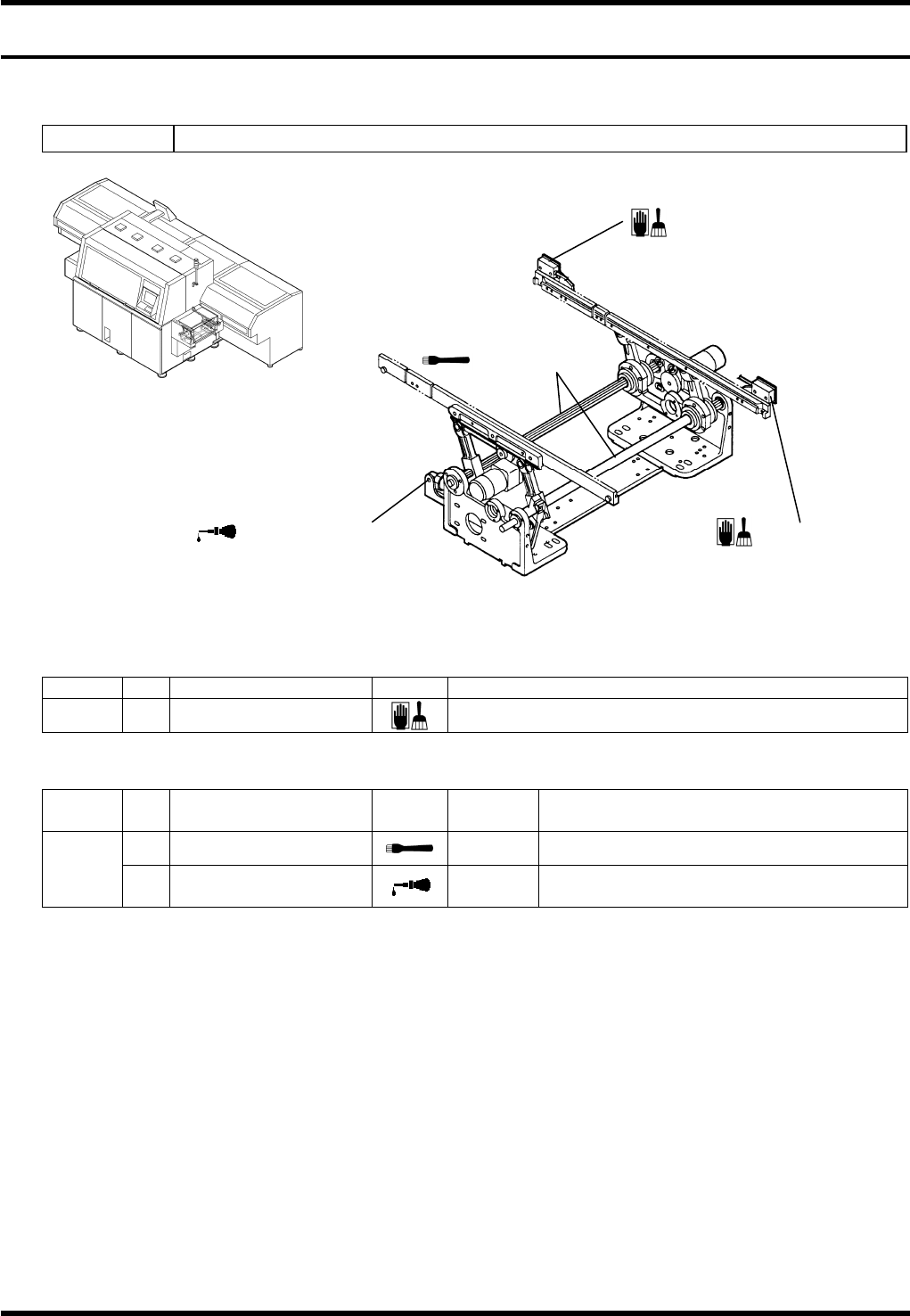

7.4. Transfer Rail
D79MEC-Z3-000-A0
7.4.1 Transfer Rail
Unit No. N610061299AA
Inspection
Period No. Item Task Description
Weekly a. Photo sensor
Remove oil or dust.
Oiling
Period No. Item Task
Oiling
volume
Description
1. Shaft surface 0.25 cm
3
Apply a thin coat of grease.
3
months
2. Cylinder support
1 to 2
drops
Position: Each support
a. Photo sensor
2. Cylinder support
a. Photo sensor
1. Shaft surface
