AV131 MAINTENANCE MANUAL 7.5 PC B Positi oning Unit D79MEC- Z3-400- A0 7.5- 1 7.5. PCB Positionin g Unit D79MEC -Z3- 4 00- A0 7.5. 1 Posi tioner Unit No. N610061375A A Inspection Perio d No . Item T ask Descrip tion W …
AV131
MAINTENANCE MANUAL
7.4 Transfer Rail
D79MEC-Z3-000-A0
7.4-2
AV131
MAINTENANCE MANUAL
7.5 PCB Positioning Unit
D79MEC-Z3-400-A0
7.5-1

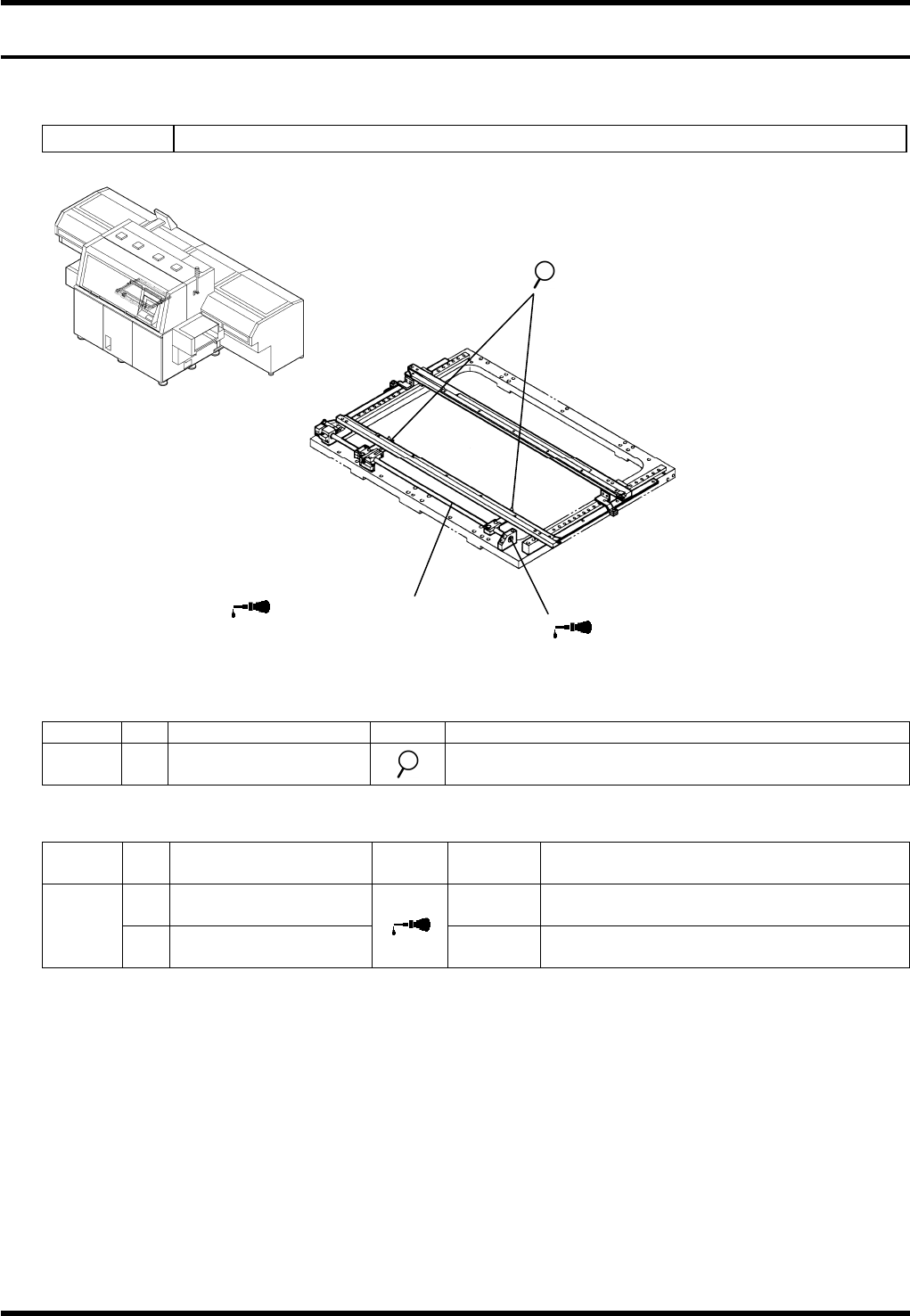

7.5. PCB Positioning Unit
D79MEC-Z3-400-A0
7.5.1 Positioner
Unit No. N610061375AA
Inspection
Period No. Item Task Description
Weekly a. Reference pin
Make sure that the reference pin is not worn or
damaged.
Oiling
Period No. Item Task
Oiling
volume
Description
1. Shaft rotor
1 to 2
drops
3
months
2. Shaft sliding surface
Moderate
amount
Wipe it with a cloth dampened with machine
oil.
a. Reference pin
2. Shaft sliding surface
1. Shaft rotor
AV131
MAINTENANCE MANUAL
7.5 PCB Positioning Unit
D79MEC-Z3-400-A0
7.5-2
