AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-2
Oiling
Period No. Item Task
Oiling
volume
Description
1.
Sliding surface of the
cam follower (5 areas)
2.
Rotating bearing of the
shaft
Set cycle timer to 262° for the lubrication.
3.
Sliding surfaces
between the slider and
the frame
4.
Sliding surfaces
between the shaft and
the bush
Position: Grease nipple
5.
Sliding surfaces
between the shaft and
the bush (2 areas)
6.
Sliding surfaces of the
shaft, bush and guide
(3 areas)
7.
Sliding surface of the
slider
8. Trapezoidal screw
9.
Sliding surfaces
between the shaft and
the bush
0.5 cm
3
Position: Grease nipple
Monthly
10.
Sliding surfaces
between the guide and
the rod
0.1 cm
3
11. Spring (x 2)
12. Spring (x 2)
13. Spring (x 2)
14. Spring
15. Pin (2 positions)
16. Pin (2 positions)
17. Pin (2 positions)
18. Pin (2 positions)
3
months
19. Pin (2 positions)
0.5 cm
3
AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-3

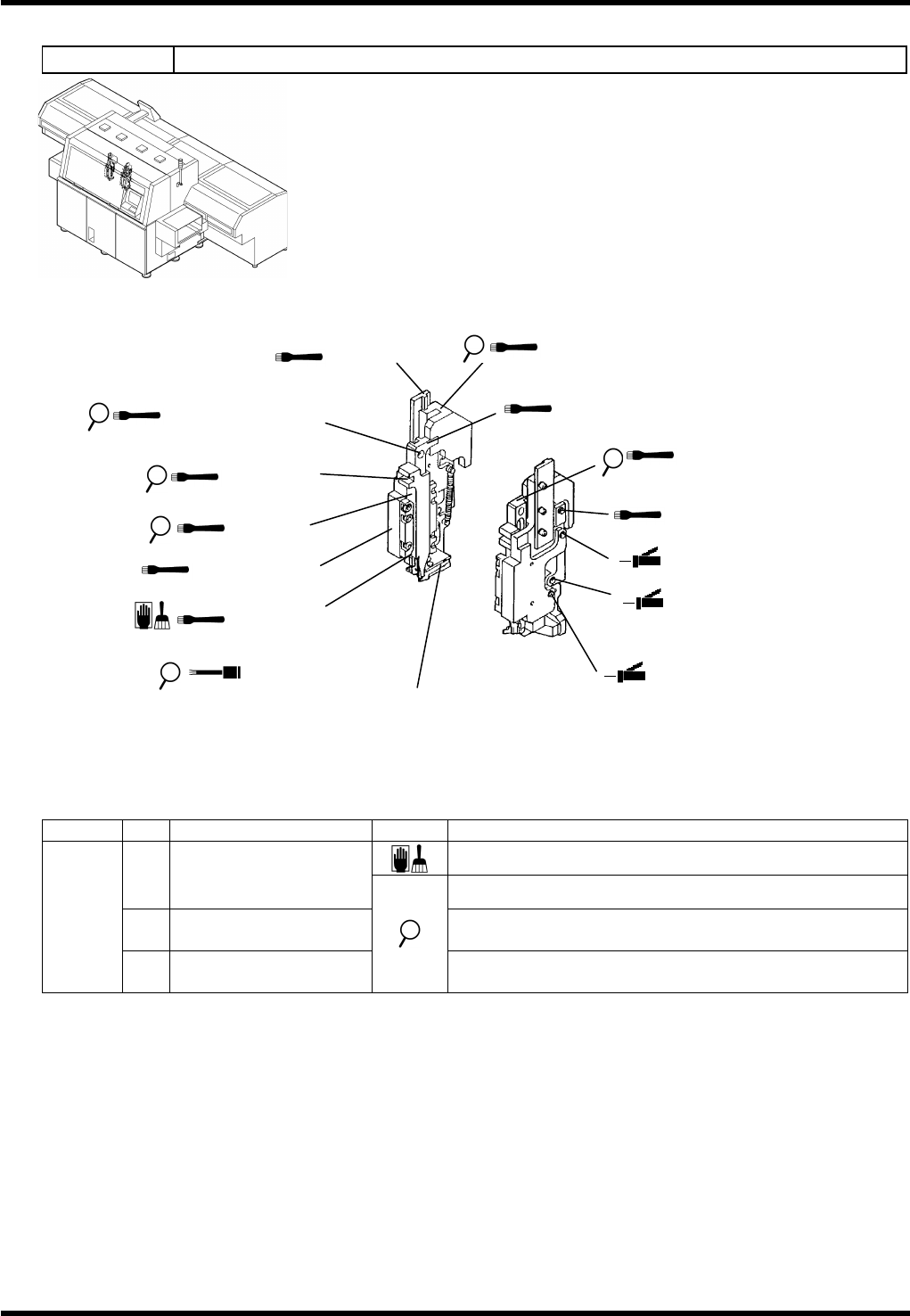

7.6.2 Insertion Unit
Unit No. 1087110000
Inspection
Period No. Item Task Description
Remove foreign matter or dust.
a. Cutter blade
Make sure that the cutter blade is not worn or damaged.
b. Insertion guide
Make sure that the insertion guide is not worn or
damaged.
Daily
c. Bending die
Make sure that the tip of the bending die is not worn or
damaged.
4. Guide
6. Roller and slide cam
12.Fitting surfaces between the insertion
guide and the slide cam
b / 2. Insertion guide
a. Cutter blade
5. Guide base
1. Pusher
10. Pusher
b / 11. Insertion guide
8. Pin, lever and guide base
8. Pin, lever and guide base
7. Pin and block lever
3. Slide cam
c / 9. Pin, bracket and bending die
AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-4
Oiling
Period No. Item Task
Oiling
volume
Description
1. Pusher Position: Up/down sliding surfaces
2. Insertion guide
0.05 cm
3
3. Slide cam 0.05 cm
3
4. Guide
5. Guide base
6. Roller and slide cam
7. Pin and block lever
8.
Pin, lever and guide
base
0.02 cm
3
9.
Pin, bracket and
bending die
0.01 cm
3
Position: Sliding surface
10. Pusher
11. Insertion guide
0.02 cm
3
Position: Sliding surface in the direction of
pitch
Every
other
week
12.
Fitting surfaces
between the insertion
guide and the slide
cam
0.01 cm
3
Position: Fitting surface
