AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-5
7.6.3 Insertion Unit Drive
Unit No. N610052015AA
Inspection
Period No. Item Task Description
Make sure that the belt is not worn or damaged.
3
months
a. Belt
Make sure that belt tension is properly adjusted.
Oiling
Period No. Item Task
Oiling
volume
Description
1. Ball screw 0.5 cm
3
Every
other
week
2. LM guide (2 areas)
0.1 cm
3
each
Apply grease after removing all foreign
matters.
2. LM guide
a. Belt
1. Ball screw
AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-6

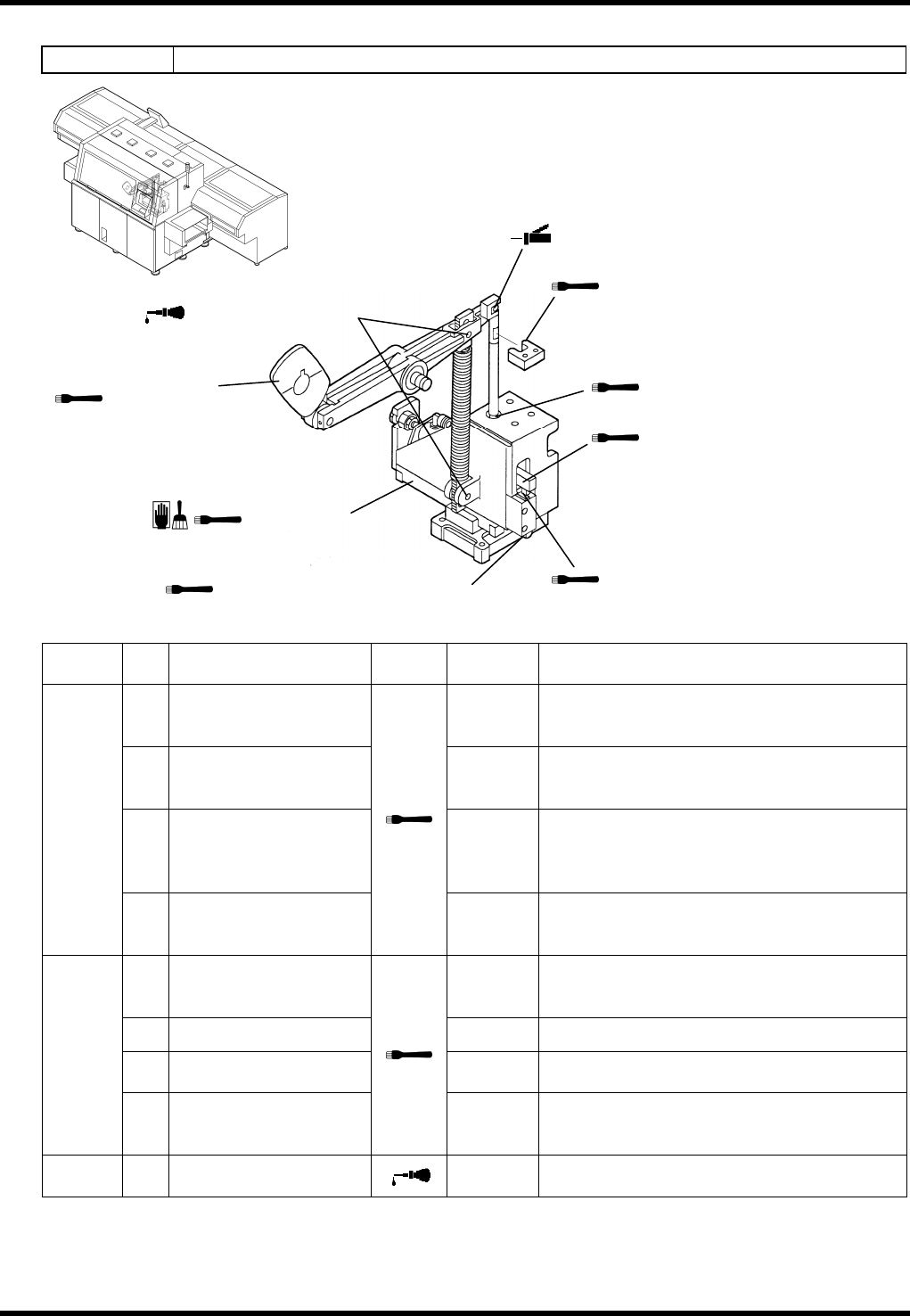

7.6.4 JW Head Drive Unit (Option)
Unit No. 1087120000
Oiling
Period No. Item Task
Oiling
volume
Description
2.
Sliding surfaces
between the cam
follower and the rod
0.5 cm
3
4.
Sliding surfaces
between the shaft and
the block.
0.1 cm
3
5.
Sliding surfaces
between the rod and
the bush (Insertion
Head) (2 areas)
0.1 cm
3
each
Every
other
week
6.
Sliding surfaces
between the shaft and
the cam follower
0.1 cm
3
1.
Sliding surfaces
between the guide and
the rod
0.1 cm
3
3. Cam surface 0.5 cm
3
Position: Periphery
7.
LM guide (2 units: front
and rear)
0.6 cm
3
each
Position: Rail surface
Monthly
8.
Contacting surfaces
between the shaft and
the pusher
0.05 cm
3
3
months
9.
Spring support pin
(2 positions)
0.5 cm
3
2. Sliding surfaces between the cam
follower and the rod
7. LM guide
3. Cam surface
5. Sliding surfaces between
the rod and the bush
6. Sliding surfaces between the
shaft and the cam follower
4. Sliding surfaces between
the shaft and the block.
8. Contacting surfaces between
the shaft and the pusher
9. Spring support pin
1. Sliding surfaces between
the guide and the rod
AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-7

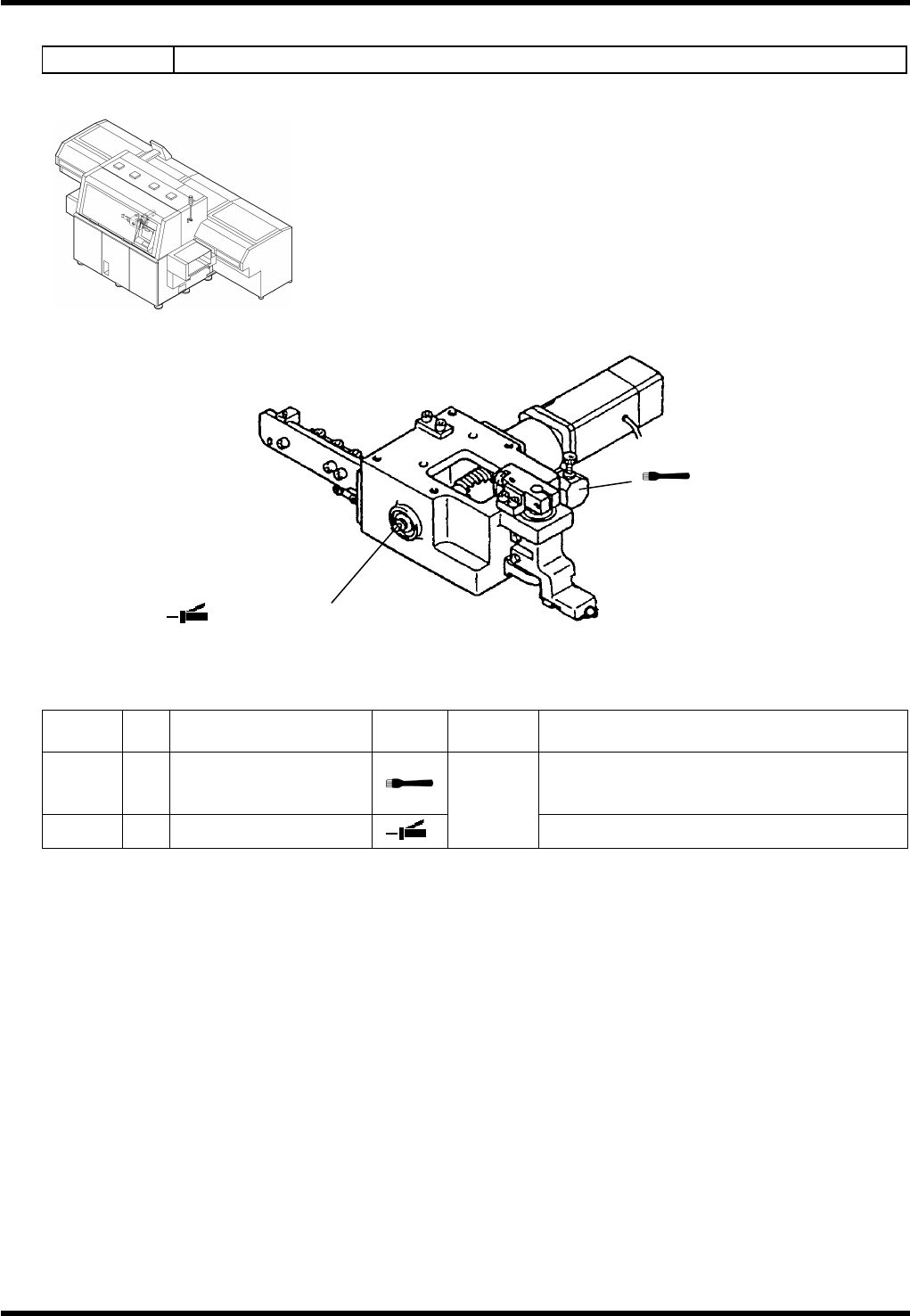

7.6.5 JW Head Unit (Option)
Unit No. N610052080AA
Oiling
Period No. Item Task
Oiling
volume
Description
Every
other
week
1.
Jumper wire setting
knob
Position: Sliding surface
Monthly 2. Worm gear
0.5 cm
3
each
Position: Grease nipple
2. Worm gear
1. Jumper wire setting
knob
