AV131
MAINTENANCE MANUAL
7.6 Insertion Head Unit
D79MEC-Z1-M00-A0
7.6-8

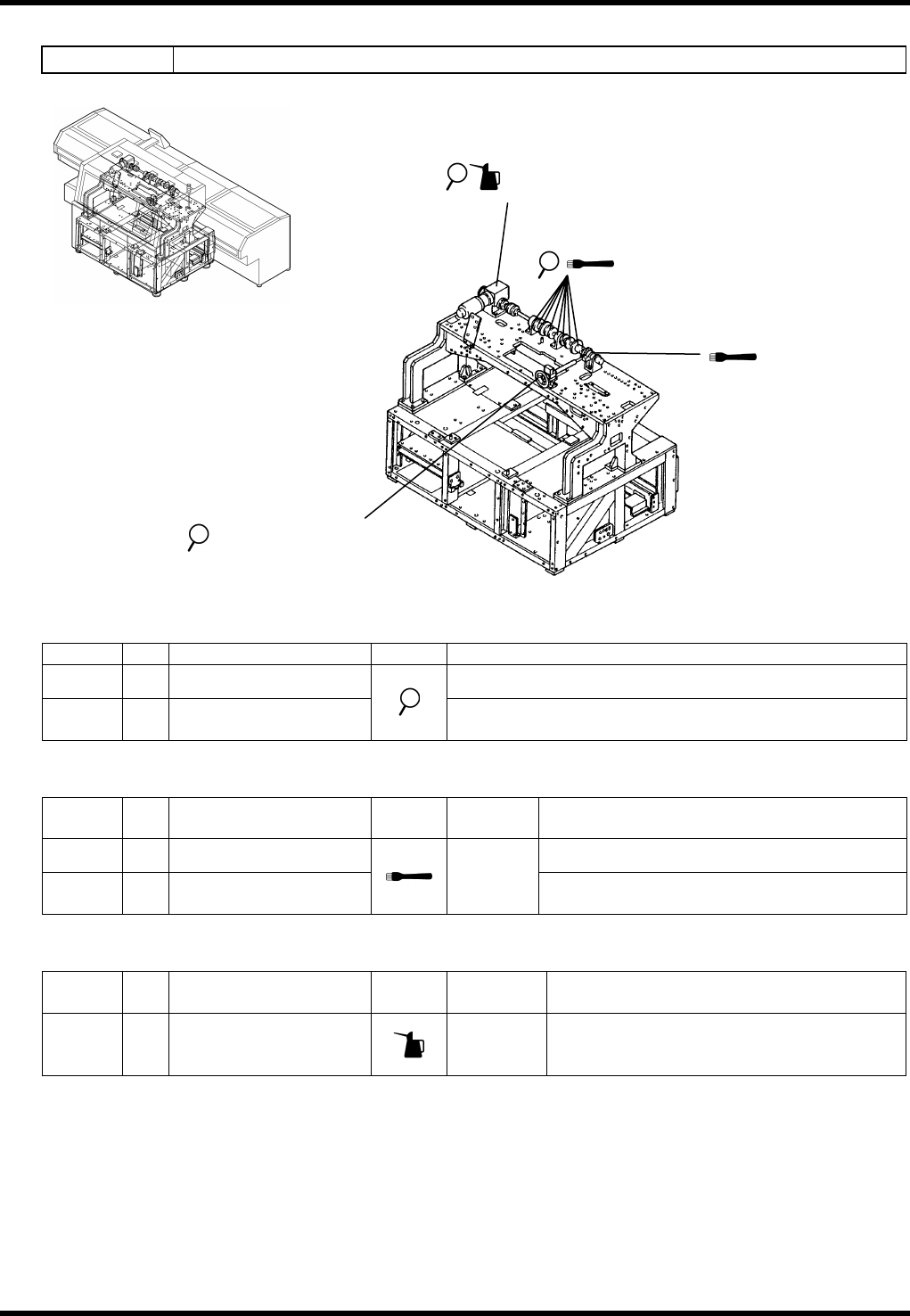

7.6.6 Main Unit
Unit No. N610060939AA
Inspection
Period No. Item Task Description
Weekly a. Manual rotation wheel Make sure that the gear rotates smoothly.
3
months
b. Worm reduction gear
Make sure that lubricant is not leaking out from the
worm reduction gear.
Oiling
Period No. Item Task
Oiling
volume
Description
Monthly 1. Cam surface Position: Cam surface
3
months
2. Gear surface
0.5 cm
3
Position: Engagement of gear
Oil Change
Period No. Item Task
Changing
volume
Description
Every
5000
hours
3. Worm reduction gear
1.9 L
Position: Oil hole
Change oil after the first 2000 hours and
thereafter every 5000 hours.
2. Gear surface
a. Manual rotation wheel
b / 3. Worm reduction gear
1. Cam surface
AV131
MAINTENANCE MANUAL
7.7 PCB Transfer Unit
D79MEC-Ｚ3-200-A0
7.7-1

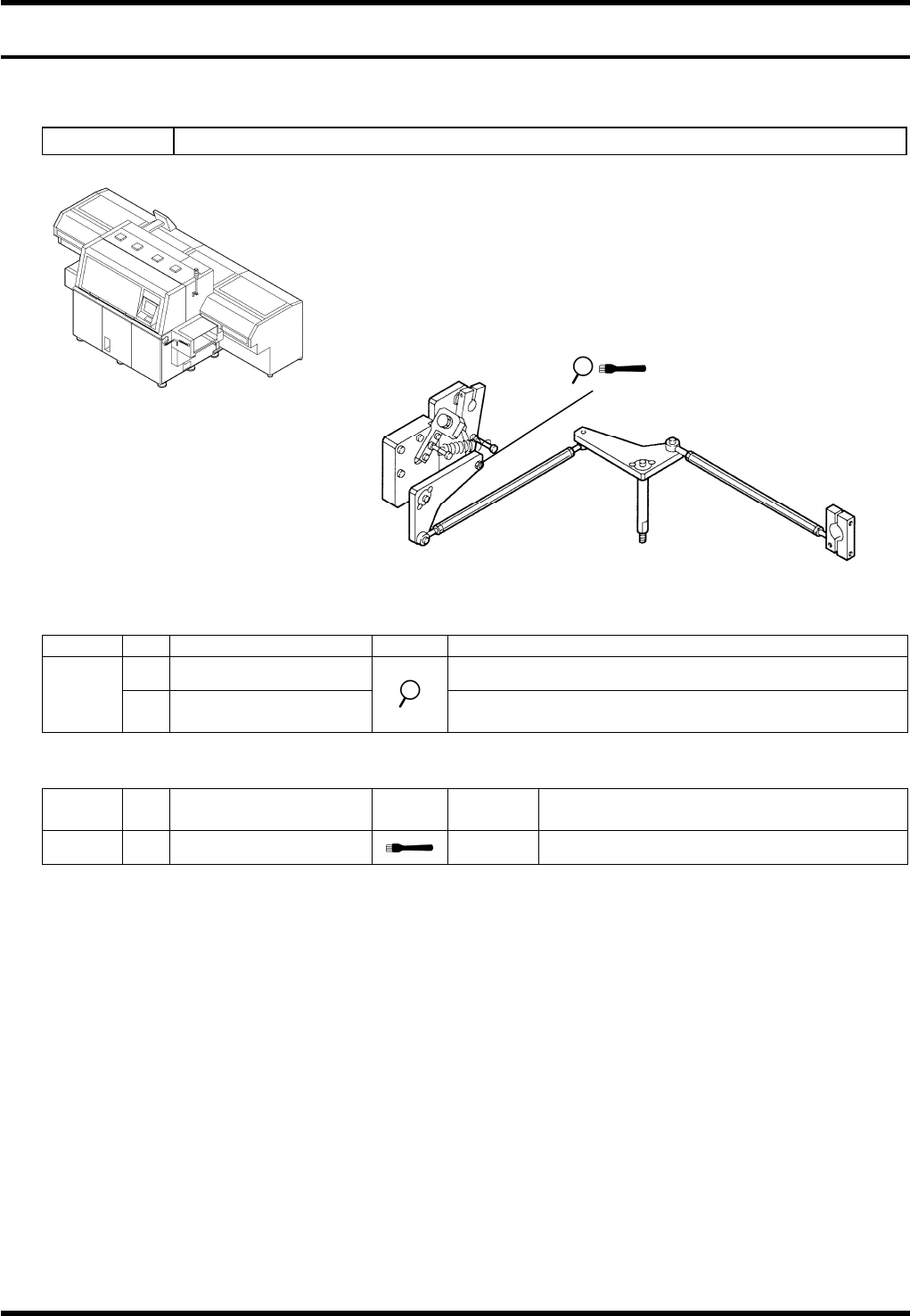

7.7. PCB Transfer Unit
D79MEC-Ｚ3-200-A0
7.7.1 Transfer Arm Interlock Unit
Unit No. N610060946AA
Inspection
Period No. Item Task Description
a. Roller Make sure that the roller turns smoothly.
Monthly
b.
Transfer arm interlock
unit
Make sure that the unit is not worn, and moves
smoothly without abnormal noises.
Oiling
Period No. Item Task
Oiling
volume
Description
Monthly 1. Cam follower 0.1 cm
3
Position: Sliding surface
a / 1. Cam follower
AV131
MAINTENANCE MANUAL
7.7 PCB Transfer Unit
D79MEC-Ｚ3-200-A0
7.7-2
7.7.2 PCB Transfer Unit
Unit No. N610060945AA
Inspection
Period No. Item Task Description
Make sure that the transfer pin claw is not loosened.
Weekly a. Transfer pin
Make sure that the transfer pin claw is not damaged or
deformed.
Oiling
Period No. Item Task
Oiling
volume
Description
1. Lever support
1 to 2
drops
3
Months
2. Shaft
Moderate
amount
Position: Sliding surface
1. Lever support
a. Transfer pin
2. Shaft
