AV131
MAINTENANCE MANUAL
7.7 PCB Transfer Unit
D79MEC-Ｚ3-200-A0
7.7-2
7.7.2 PCB Transfer Unit
Unit No. N610060945AA
Inspection
Period No. Item Task Description
Make sure that the transfer pin claw is not loosened.
Weekly a. Transfer pin
Make sure that the transfer pin claw is not damaged or
deformed.
Oiling
Period No. Item Task
Oiling
volume
Description
1. Lever support
1 to 2
drops
3
Months
2. Shaft
Moderate
amount
Position: Sliding surface
1. Lever support

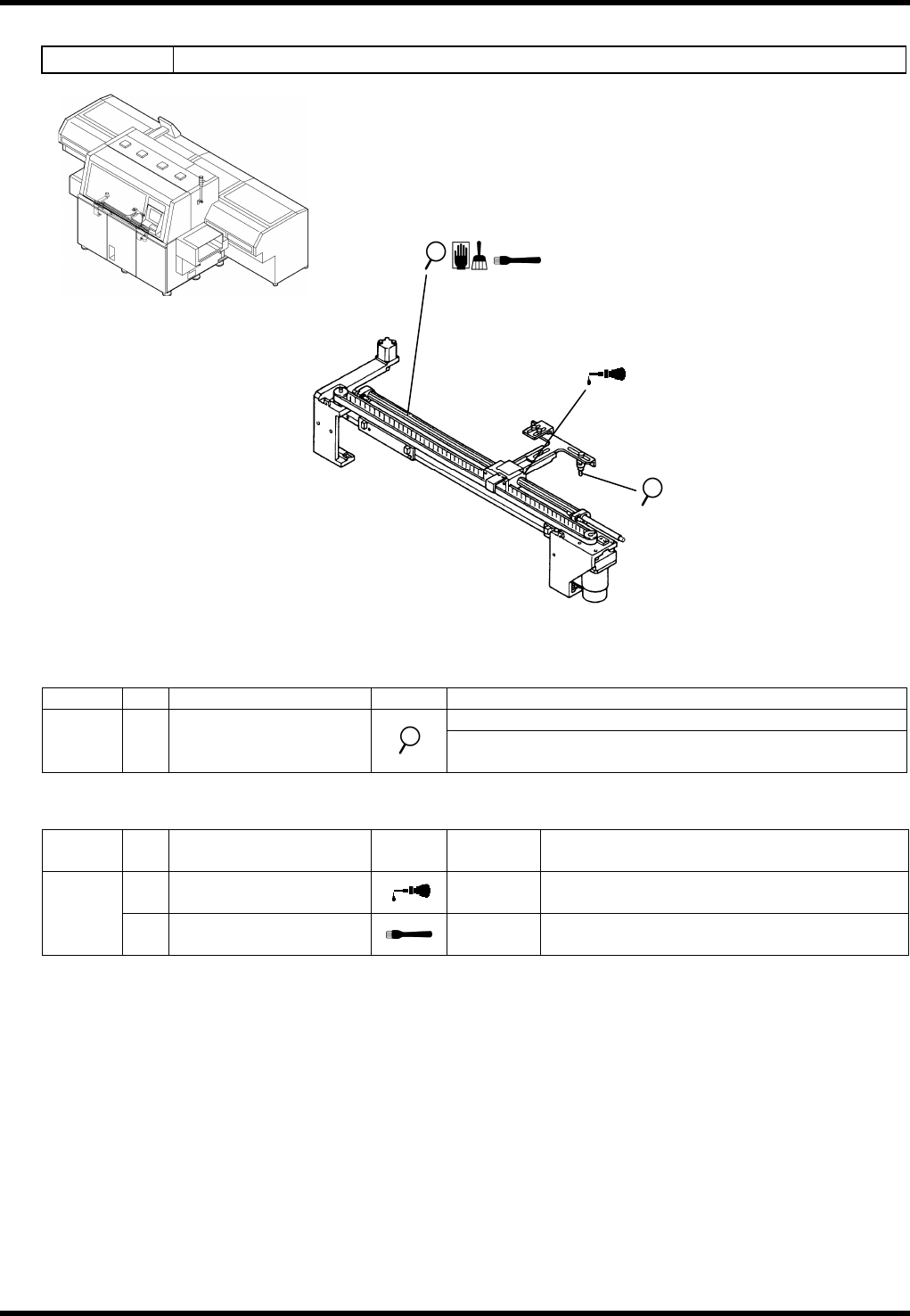

a. Transfer pin
2. Shaft
AV131
MAINTENANCE MANUAL
7.8 Part Supply Unit
D79MEC-Z5-000-A0
7.8-1
7.8. Part Supply Unit
D79MEC-Z5-000-A0
7.8.1 Part Supply Unit
Unit No. N610064467AA / N610060958AA
120 Inputs
60 Inputs
Feeder frame
Feeder frame
2. Cam follower
a / 1. LM guide
b / 3. Ball screw shaft
2. Cam follower
Feeder frame
a / 1. LM guide
2. Cam follower
b / 3. Ball screw shaft
AV131
MAINTENANCE MANUAL
7.8 Part Supply Unit
D79MEC-Z5-000-A0
7.8-2
Inspection
Period No. Item Task Description
a. LM guide
Monthly
b. Ball screw shaft
Remove dirt or dust.
Oiling
Period No. Item Task
Oiling
volume
Description
1. LM guide (x 2)
2.0 cm
3
each
120
inputs
1.0 cm
3
each
60
inputs
Position: Rail surface
2.
Cam follower
120 inputs (x 12)
60 inputs (x 6)
1.9 cm
3
each
Position: Roller surface
3
months
3. Ball screw shaft
120
inputs
80 cm
3
60
inputs
50 cm
3
Position: Sliding surface
