AV131
MAINTENANCE MANUAL
7.10 Cutter Unit
D79MEC-Z5-200-A0
7.10-1
7.10. Cutter Unit
D79MEC-Z5-200-A0

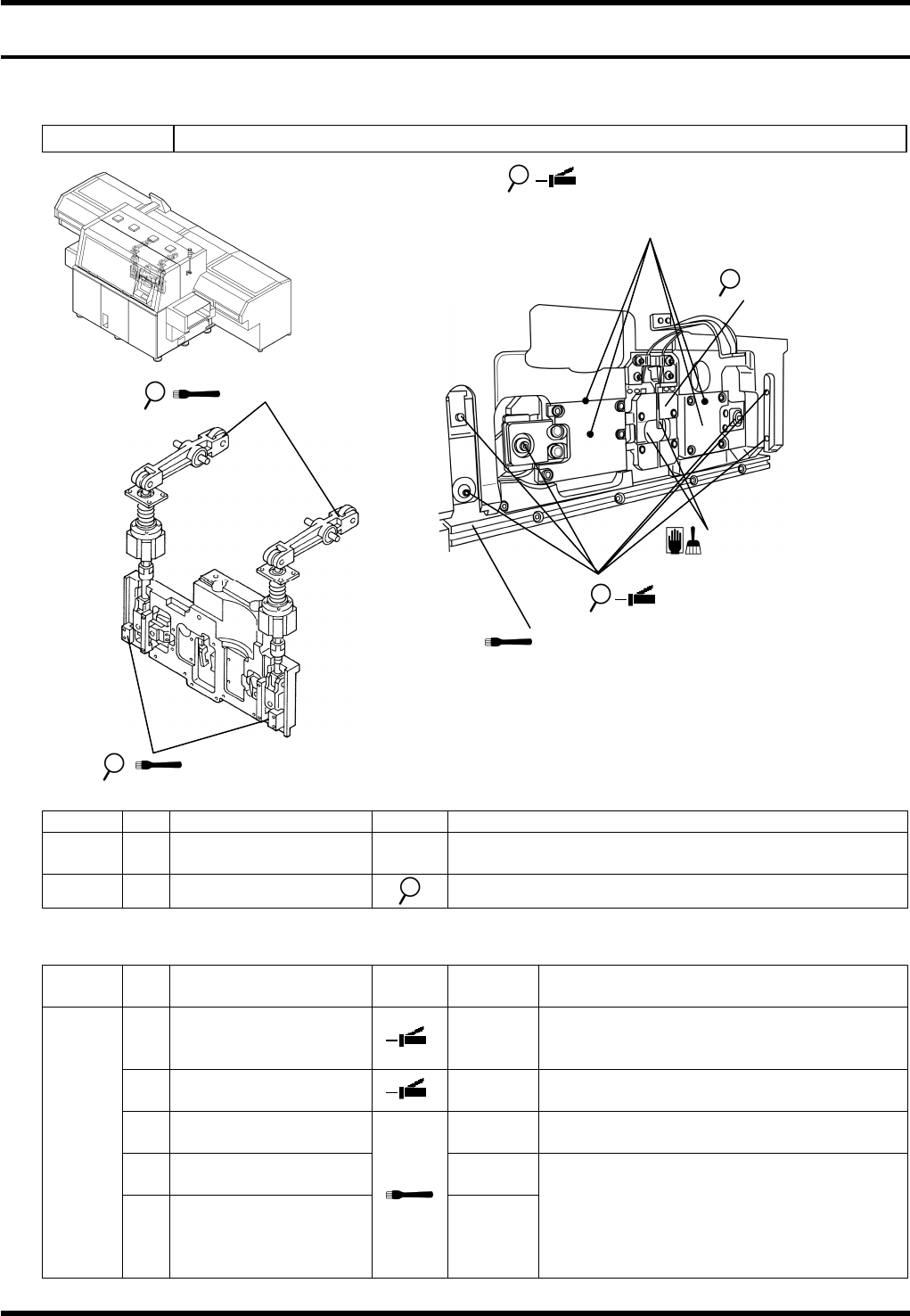

7.10.1 Tape Cutter
Unit No. N610052014AA
Inspection
Period No. Item Task Description
Daily a.
Component detection
sensor
Remove oil or dust.
Weekly b. Cutter condition check
Check it by cutting a piece of paper.
Oiling
Period No. Item Task
Oiling
volume
Description
1.
Sliding surfaces
between the guide and
the slider (left/right)
0.3 cm
3
each
Inject grease through the oil holes (× 4)
using a grease gun fitted with a P-type
attachment. (from Z axis side on the back)
2. Bush support pin
0.3 cm
3
each
Position: Grease nipple
3. Roller follower
0.5 cm
3
each
Position: Roller surface
4.
Sliding surface of the
roller follower
0.5 cm
3
Every
other
week
5.
Sliding surfaces
between the guide and
the roller follower
(top/bottom)
0.3 cm
3
each
3. Roller follower
4. Sliding surface of the
roller follower
5. Sliding surfaces between the
guide and the roller follower
(top/bottom)
2. Bush support pin
a. Component detection
sensor
1. Sliding surfaces between the guide
and the slider (left/right)
b. Cutter condition
check
AV131
MAINTENANCE MANUAL
7.10 Cutter Unit
D79MEC-Z5-200-A0
7.10-2
7.10.2 Dust Collecting Box
Unit No. N610060949AA
Inspection
Period No. Item Task Description
a. Dust collecting box Dispose of cut waste.
Daily
b. Filter
Remove dirt or dust.
a. Dust collecting box
b. Filter
AV131
MAINTENANCE MANUAL
7.11 Pneumatic Unit
D79MEC-Z0-300-A0
7.11-1
7.11. Pneumatic Unit
D79MEC-Z0-300-A0
7.11.1 Cut Waste Bottle
Unit No. N610070306AA
Inspection
Period No. Item Task Description
Weekly a. Filter
Clean the filter using air blow.
(Replace it if damaged.)
a. Filter
