AV131
MAINTENANCE MANUAL
9.1 Movement Check
D79MEC-71-010-A0
9.1-4
9.1.2 NC Axis Jog Check
Be sure to return all axes to their origins before moving axes.
2.
1. Select [Machine Adjustment] from the main menu.
The “Machine adjustment menu” screen appears.
2. Press [NC JOG].
The “NC JOG” screen appears.
3. Select the NC axis to be moved.
4. Press <ENABLING> + teaching keys to move each
axis.
=REMARKS=
Press any teaching key for the desired
direction.
Care should be taken because the selected
axis moves.
The rotary chucks rotate in the following
increments by one switch operation:
T axis: 0.012°
θH axis: 0.018°
θA axis: 0.09°
Axes other than these move in 0.01 mm increments.
(The current positions of the axes are displayed rounded off to two decimal places.)
=HINT=
Pressing [H] (high speed) in advance enables the axis to be moved faster.
When the [H] key is ON, the selected axis moves at a speed ten times the pulse of normal jog.
5. Press <ENABLING> + [Origin return] after completing movement check.
1
2
3
4
5
AV131
MAINTENANCE MANUAL
9.1 Movement Check
D79MEC-71-010-A0
9.1-5
9.1.3 NC Axis Move Check
3.
1. Select [Machine Adjustment] from the main menu.
The “Machine adjustment menu” screen appears.
2. Press [NC MOVE].
The “Machine adjust - NC MOVE” screen
appears.
3. Press the [Move 1] or [Move 2] field for the axis to
be moved.
4. Input a coordinate of the target position to move the
selected axis to.
5. Pressing <ENABLING> + [Move 1], [Move 2] or
[Repeat] moves the NC axis to the designated
coordinate.
=HINT=
Input the coordinates in [Move 1] and [Move 2]
respectively and press [Repeat] to repeat the
positioning to the designated coordinates of
MOVE 1 and MOVE2.
6. Press <ENABLING> + [Origin return] after completing movement check.
1
2
4
3
6
5
AV131
MAINTENANCE MANUAL
9.1 Movement Check
D79MEC-71-010-A0
9.1-6

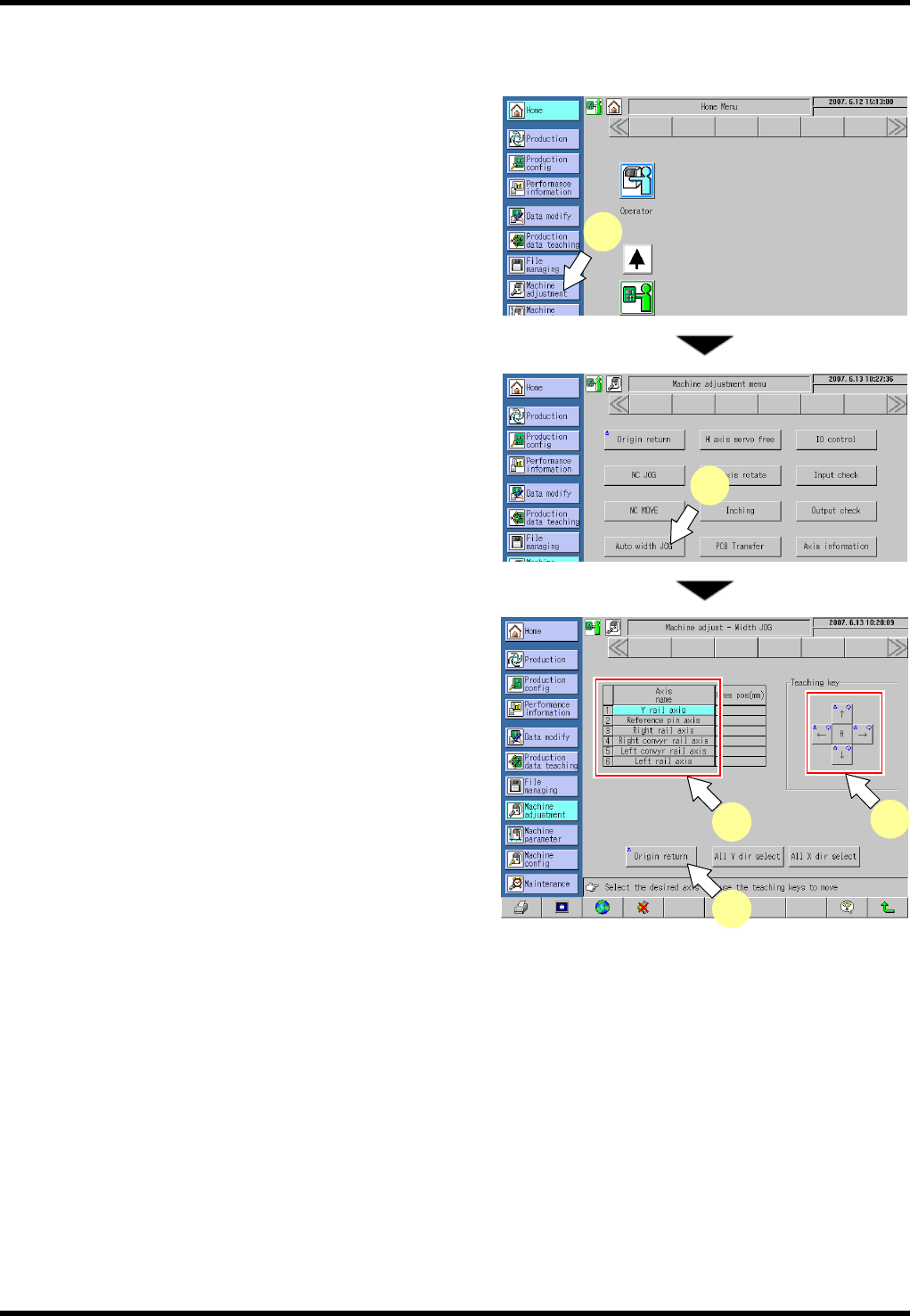

9.1.4 Width Adjust Axis Jog
Be sure to return all axes to their origins before moving axes.
4.
1. Select [Machine Adjustment] from the main menu.
The “Machine adjustment menu” screen appears.
2. Press [Auto width JOG].
The “Machine adjust - Width JOG” screen
appears.
3. Select the axis to be moved.
Pressing [All Y dir select] selects all rail axes.
Pressing [All X dir select] selects the reference
pin axis.
4. Press <ENABLING> + teaching keys to move each
axis.
=REMARKS=
Press any teaching key for the desired
direction.
Care should be taken because the selected
axis moves.
=HINT=
Pressing [H] in advance enables the axis to move faster.
5. Press <ENABLING> + [Origin return] after completing movement check.
1
2
3
4
5
