9.2. Monitoring
D79MEC-71-020-A0

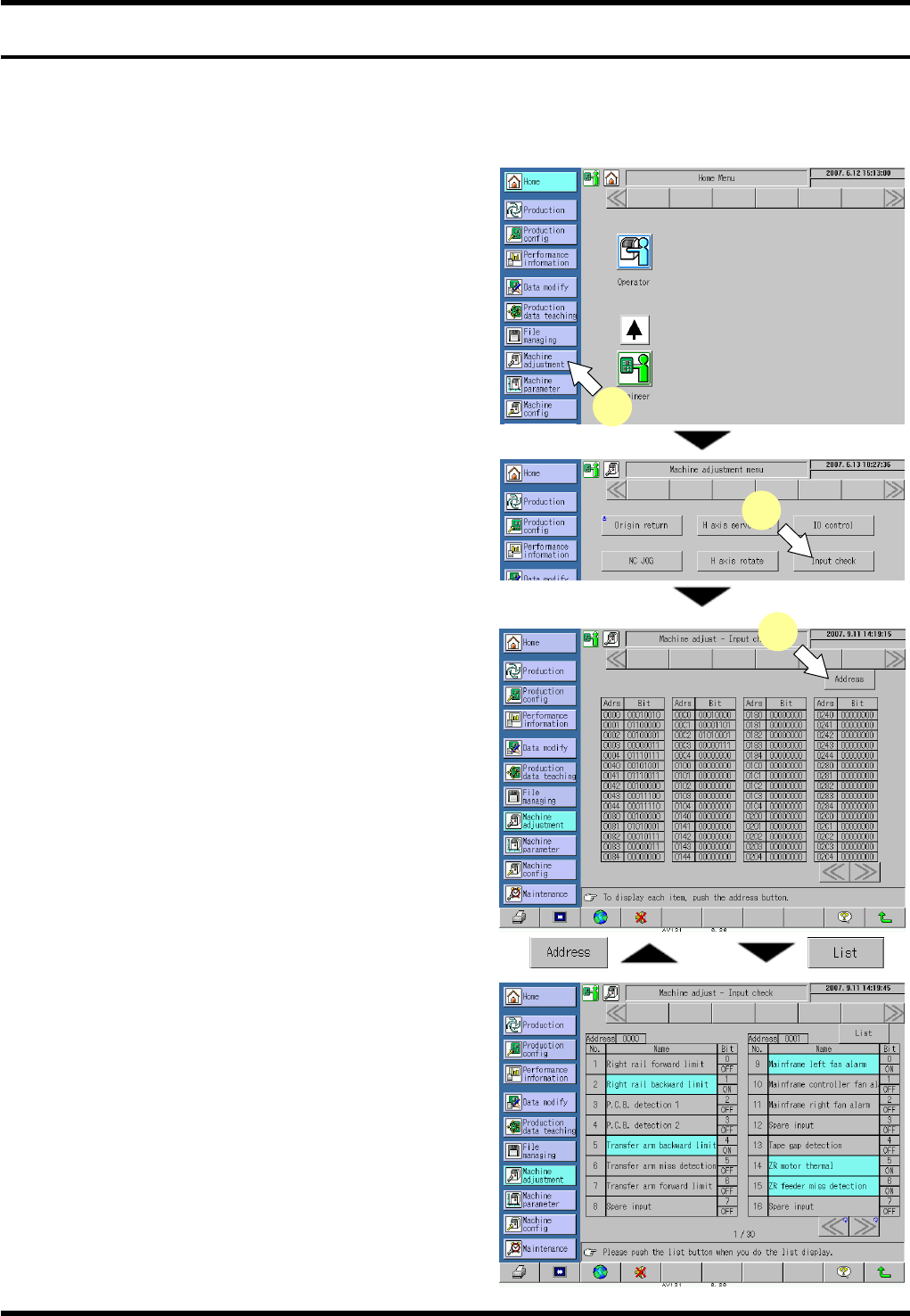

9.2.1 Monitoring
This function allows the status of the input signals (sensors, etc.) and output signals (solenoid valves, etc.) to
be monitored.
Procedure
26.
1. Press [Machine adjustment] from the main menu.
The “Machine adjustment menu” screen appears.
2. Press [Input check].
The “Machine adjust - Input check” screen
appears.
3. Press [Address].
The address screen listing the input signal names
by address is displayed.
=HINT=
The list screen and address screen can be
switched alternately.
4. Check if the statuses of the input signals listed
below the address are normal (ON/OFF).
If the input status of the sensor is not proper, the
sensor may be broken or disconnected. In such
case, the sensor needs to be replaced. Contact
us for details.
2
1
3
AV131
MAINTENANCE MANUAL
9.2 Monitoring
D79MEC-71-020-A0
9.2-2

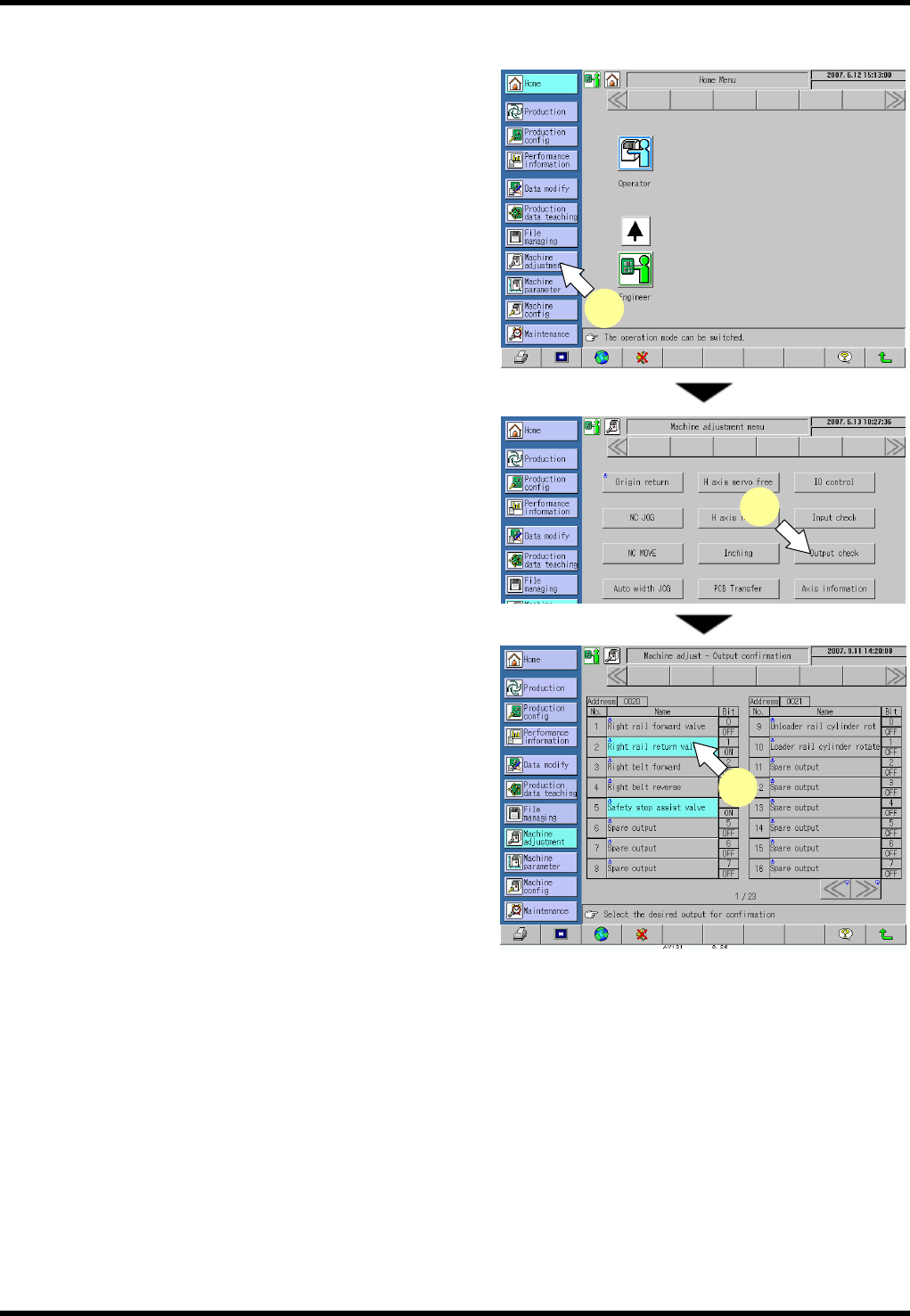

9.2.2 Output Signal Monitoring
27.
1. Press [Machine adjustment] from the main menu.
The “Machine adjustment menu” screen appears.
2. Press [Output check].
The “Machine adjust - Output check” screen
appears.
3. Press the desired signal name button on the list.
The selected actuator operates.
If the actuator does not operate (start/stop)
properly, it may be broken or disconnected
In such case, the sensor needs to be replaced.
Contact us for details.
